Air Bag Control Module: Service and Repair



AR91.60-P-0622F Removing, Installing Control Module For Airbag/Belt Tensioner

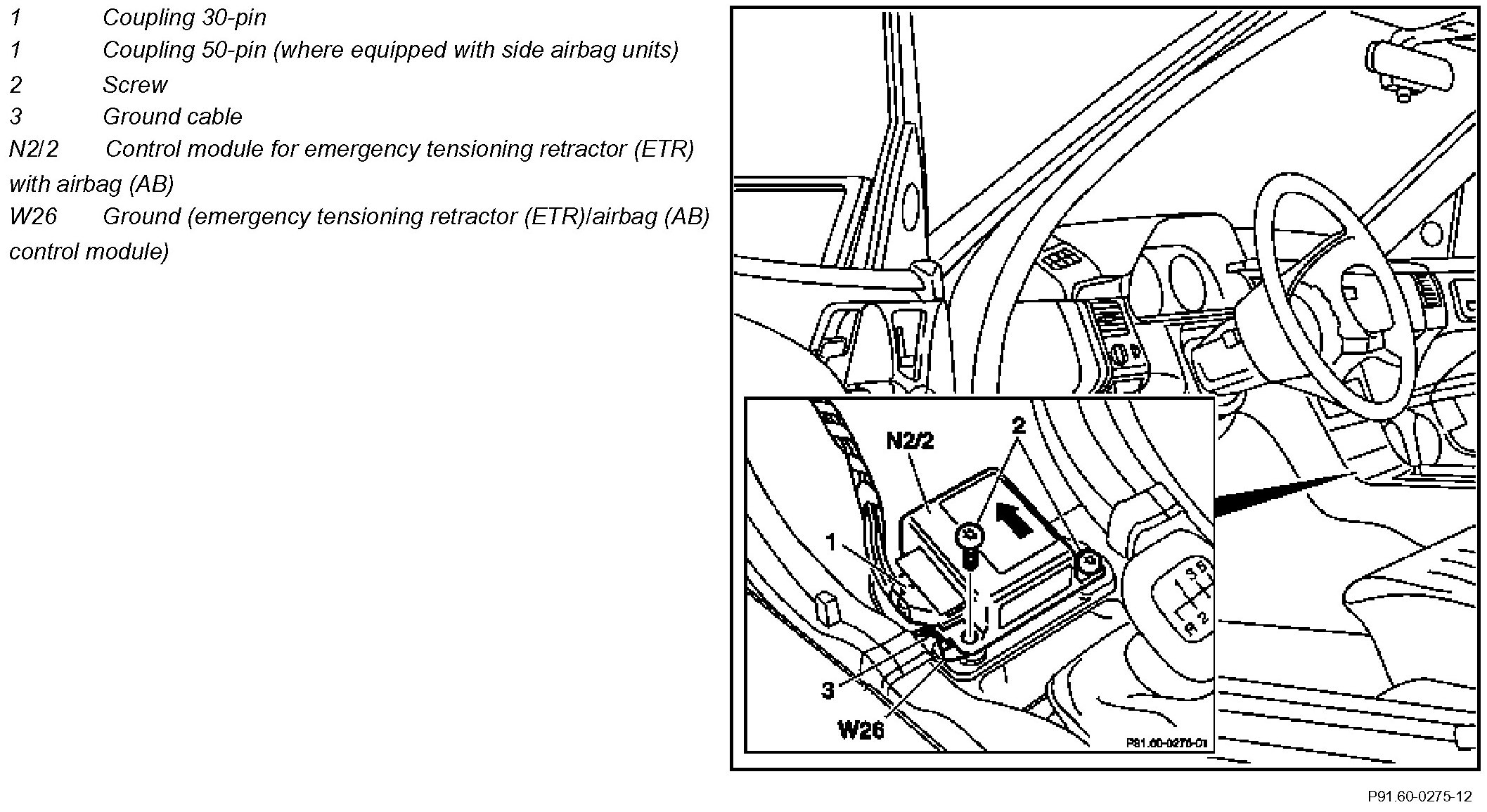

Component Identification:

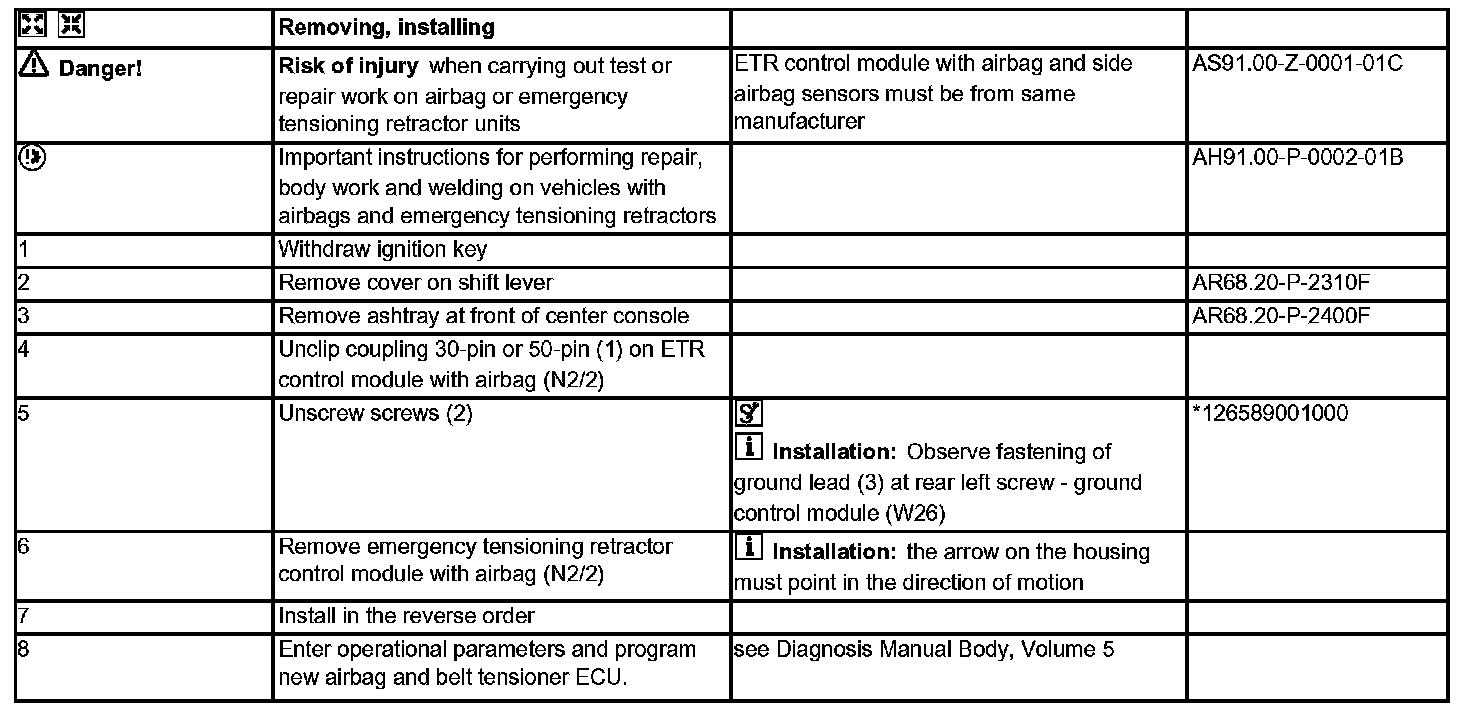

Steps 1 - 8:

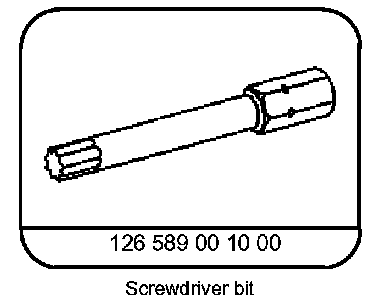

Special Tools:

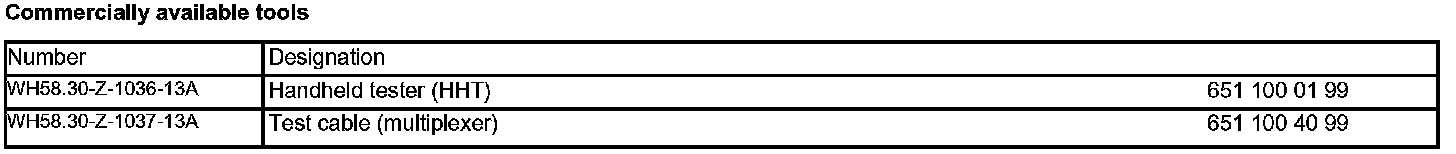

Commercially Available Tools:
