Fuel Pump, Location

Fuel Pump, Position

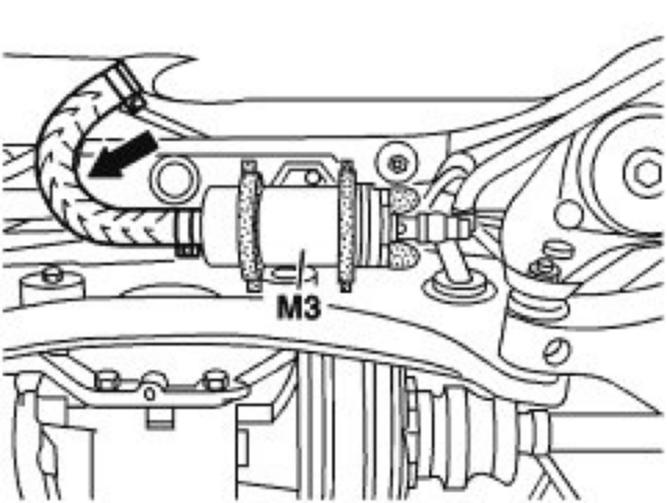

Shown on model 210 sedan with engine 112, 113
Sedan: at frame floor ahead of rear axle in fuel pump assembly
M3 Fuel pump




Shown on model 210 station wagon
Station wagon: suspended at rubber rings between rear axle and fuel tank
M3 Fuel pump
