Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Service and Repair >> Remove/Install Taillamp

Remove/Install Taillamp




Component Identification:

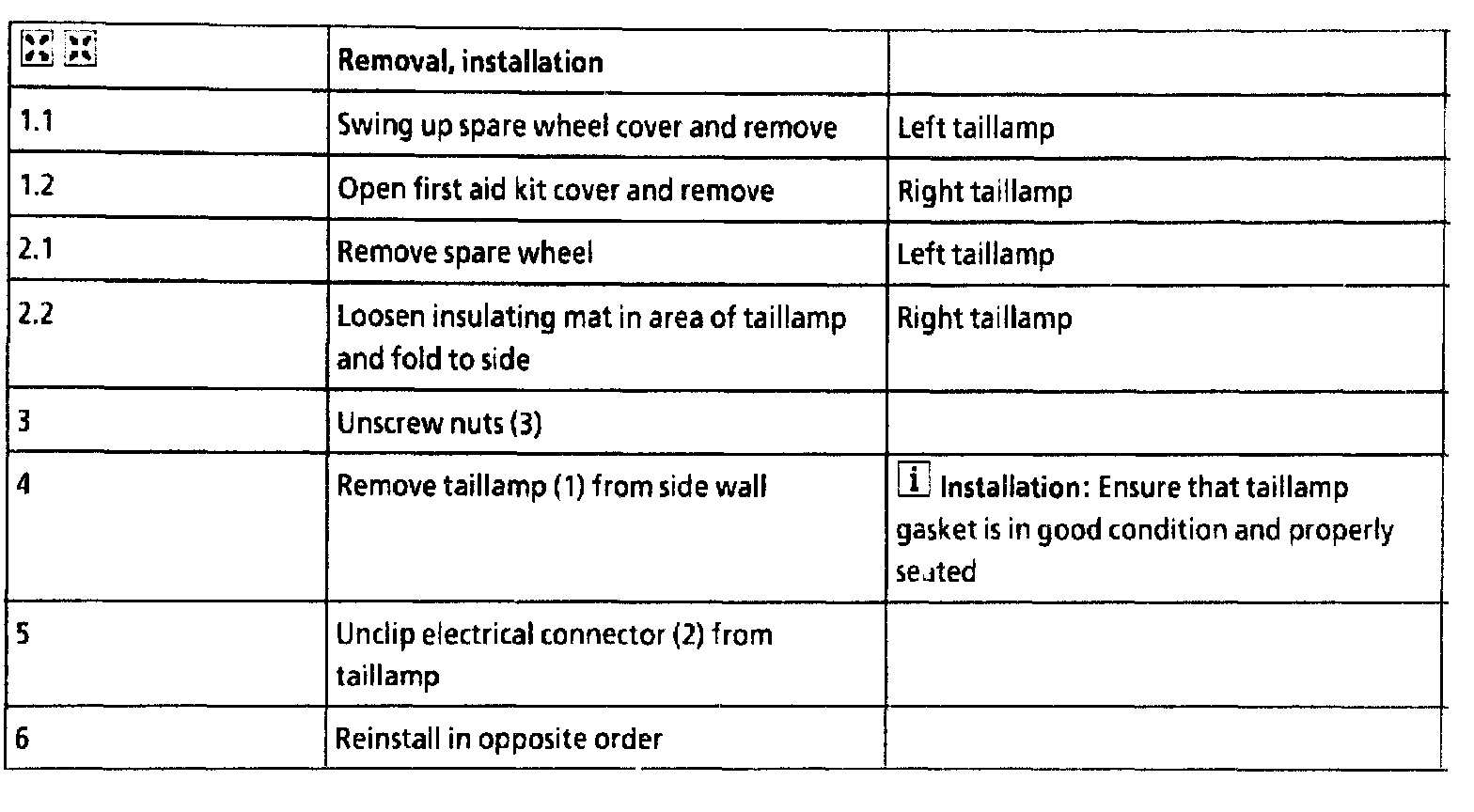

Removal/Installation, Steps 1.1 - 6:
