Headlamp Bulb: Service and Repair

Removing And Installing Bulbs Of Headlamp Unit
- with CODE (612b) Xenon headlamp

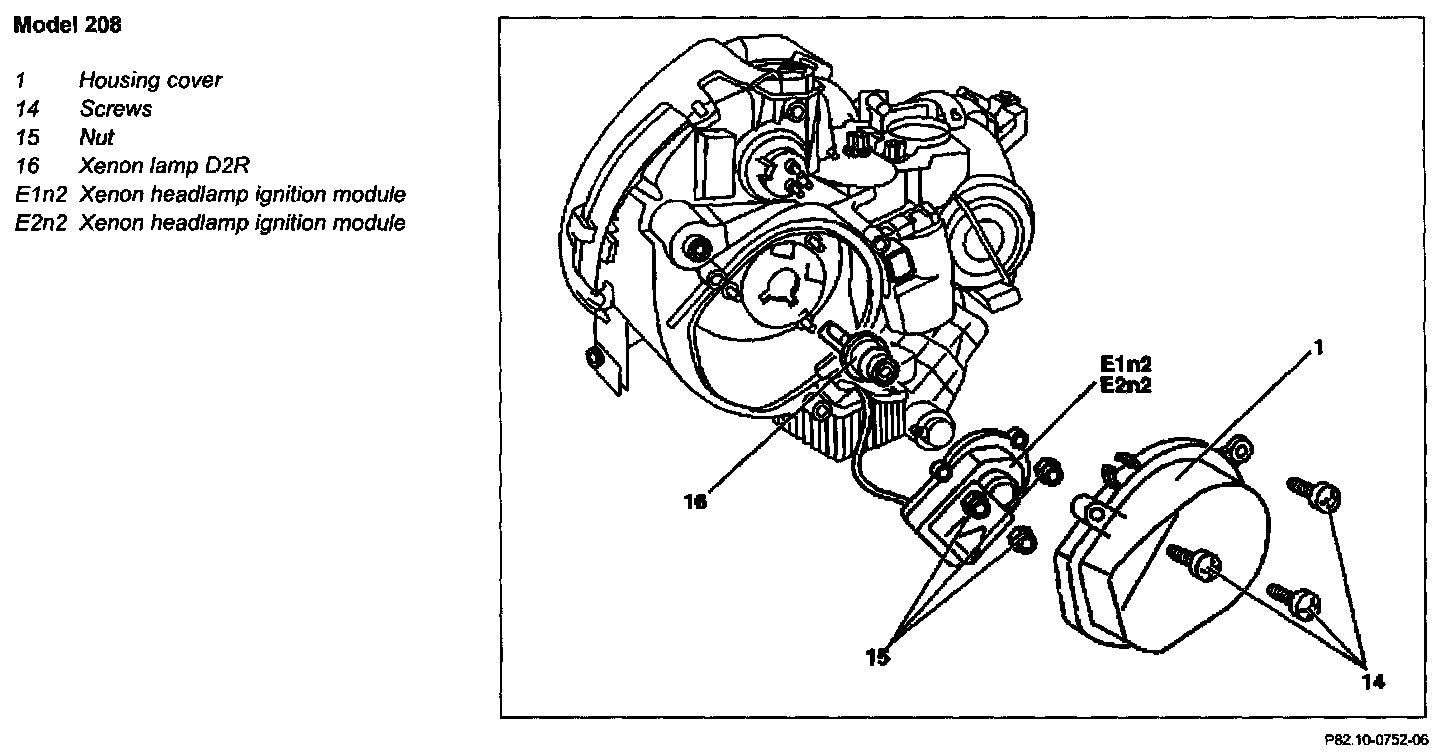

Model 208:

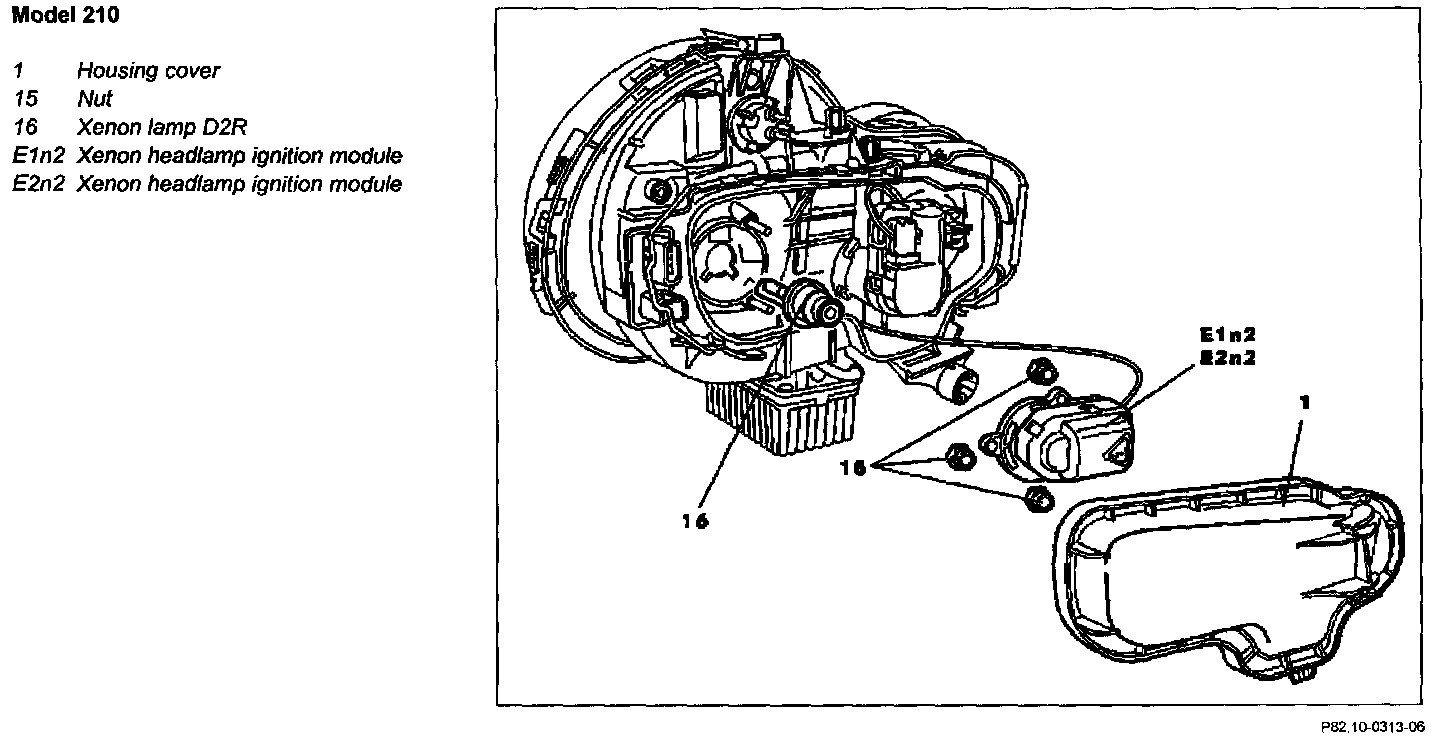

Model 210:

DANGER:
- Hazard from contact with parts conducting high voltages.
- Do no touch parts conducting high voltage. Persons who wear electronic implants (e.g. heart pacemakers) must not carry out work on the ignition system.
- Lethal hazard from high voltage on xenon headlamps
- Do no touch parts conducting high voltage. Persons with active electronic implants (e.g. heart pacemakers) should never work on xenon headlamps.

1 Remove headlamp unit
2.1 Unscrew screws (14) and remove housing cover (1)
2.2 Unclip housing cover (1)
3 Unscrew nuts (15) and remove ignition modules (E1n2, E2n2)
4 Carefully remove xenon lamp D2R (16)
5 Install in the reverse order
