In Instrument Panel

210 with code (220a)







Removal, installation

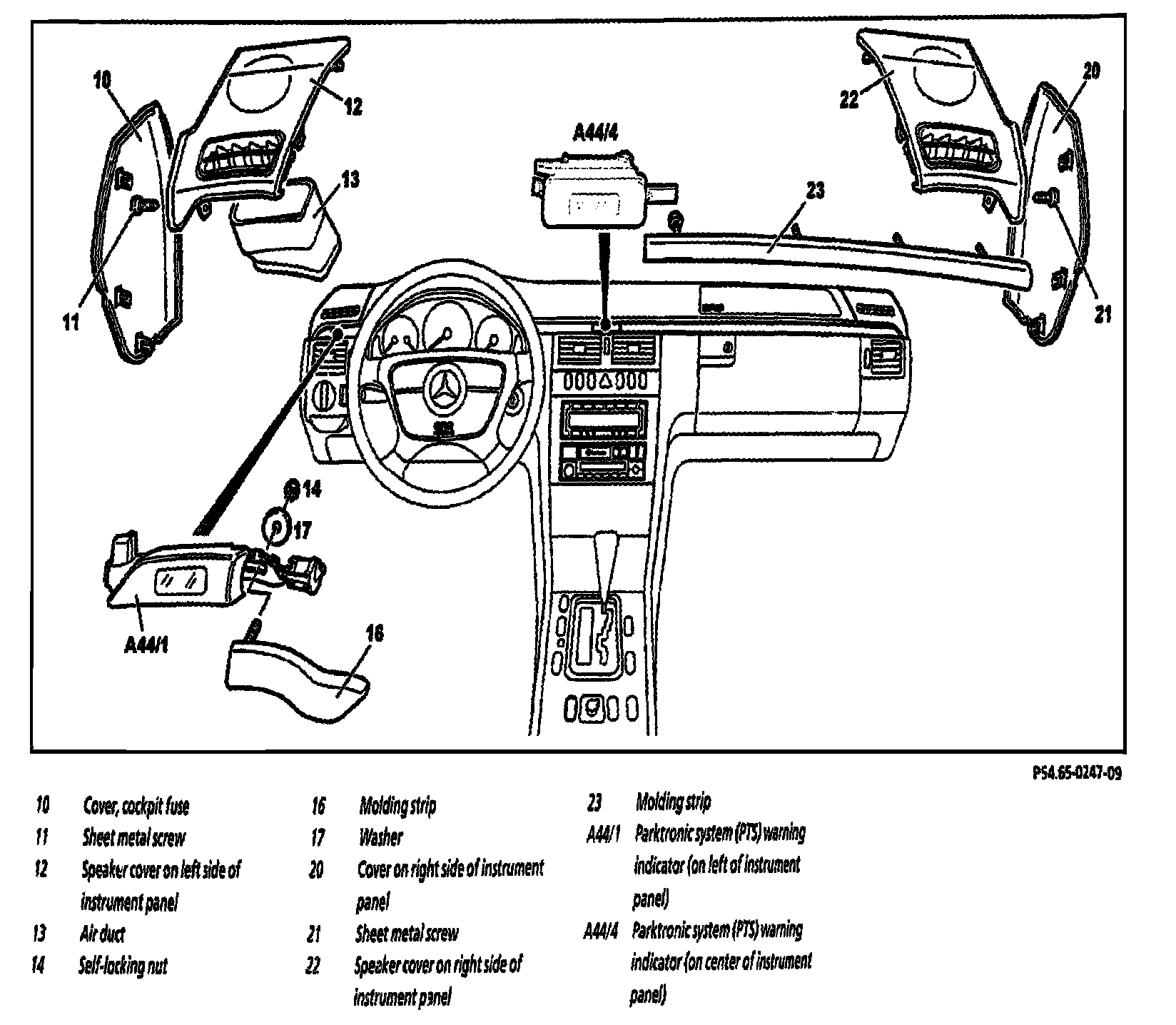

1 Remove instrument cluster
2 Remove cover on left side of instrument panel (10)
- Remove warning indicator on left side of instrument panel

3 Unscrew sheet metal screw (11)
4 Remove speaker cover on left side of instrument panel (12)
5 Remove air duct (13)
6 Unscrew nut (14), remove washer (17)
7 Remove molding strip (16)
8 Pull out Parktronic system (PTS) warning indicator on left side of instrument panel (A44/1)
9 Disconnect connector from warning indicator
10 Remove cover on right side of instrument panel (20)
- Remove maintenance indicator on center of instrument panel

11 Unscrew sheet metal screw (21), remove speaker cover on right side of instrument panel (22)
12 Lift right molding strip (23) slightly and pull to right
13 Pull out Parktronic system (PTS) warning indicator on center of instrument panel (A44/4)
14 Disconnect connector from warning indicator
15 Reinstall in opposite order
