Instrument Panel Circuit Board: Service and Repair

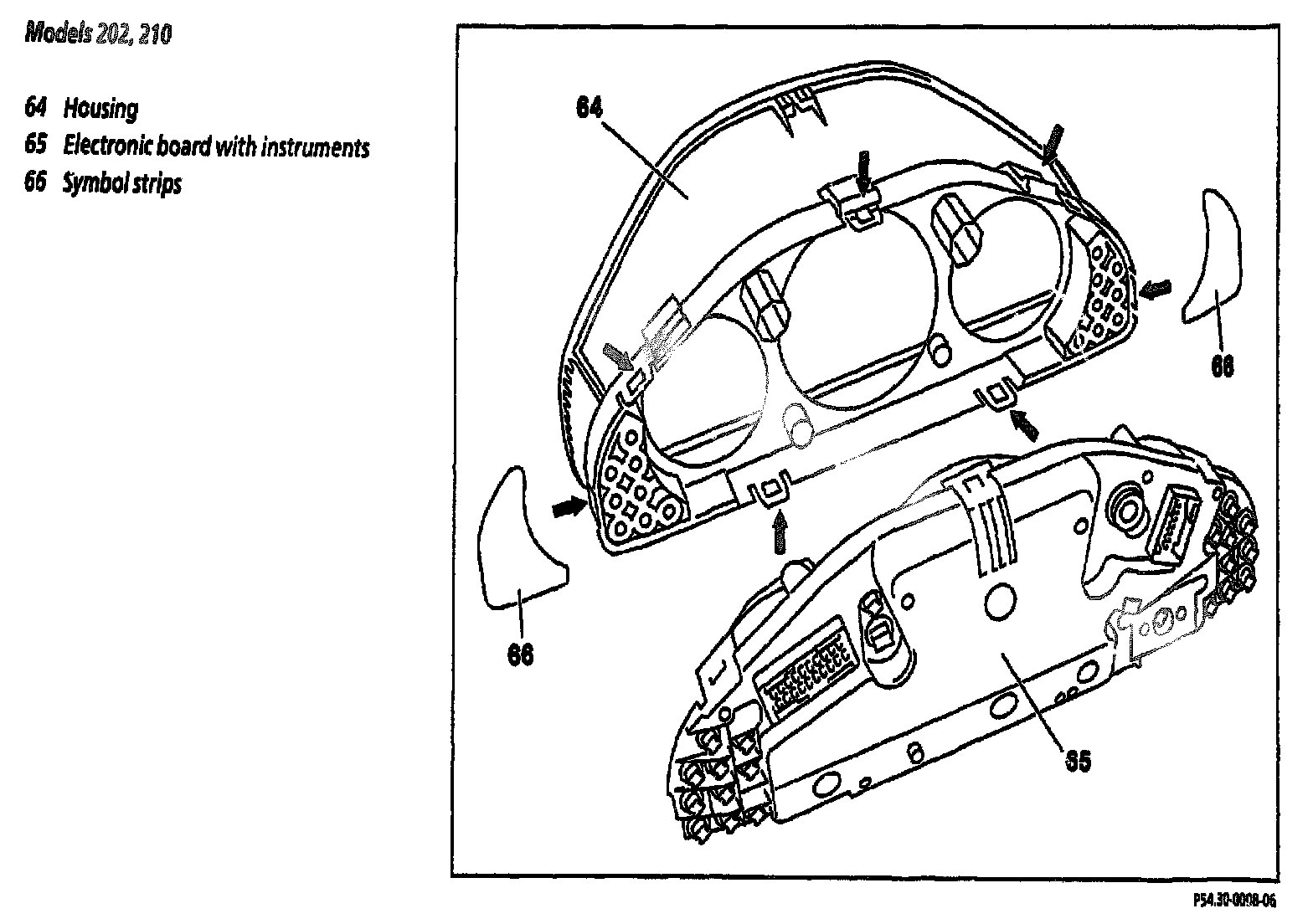

Models 202, 210:

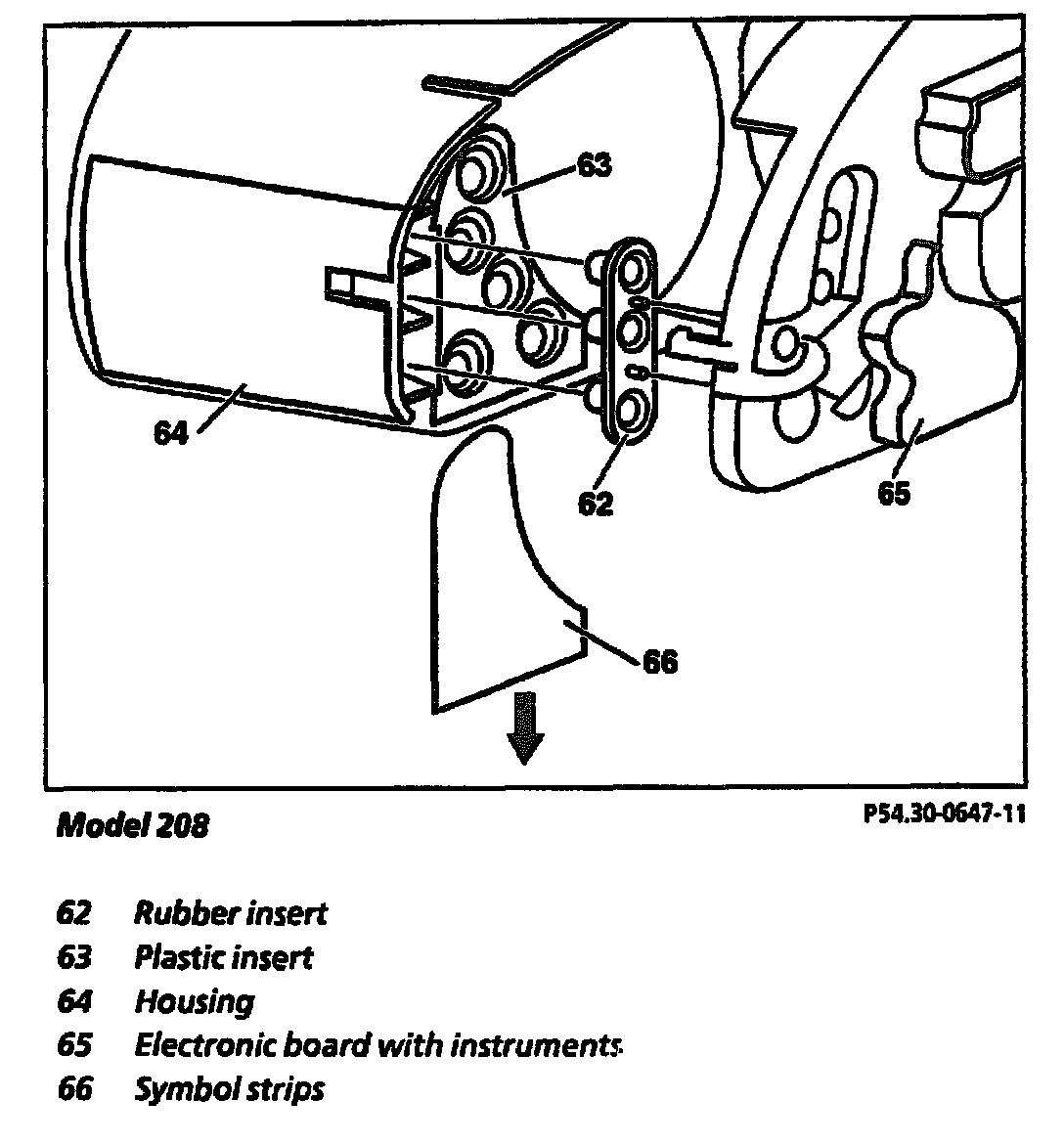

Model 208:

Removal, installation
1 Disconnect ground lead from battery


CAUTION: On model 210 insulate the ground lead with cable terminal to prevent unintentional contact between disconnected ground lead and ground point W10


2 Remove instrument cluster
3 Unclip retaining lugs (arrows)


NOTE: Retaining lugs must catch completely


4.1 Separate housing (64) from electronic board with instruments (65)


NOTE: On model 202 as of 08/95 ensure that reset knob for trip odometer and adjustment knob for electronic clock are properly positioned.


4.2 Separate housing (64) from electronic board with instruments (65)


NOTE: On model 208 ensure correct seat of rubber inserts (62)


5 Remove symbol strips (66)


NOTE: On model 202 up to 08/95 pull symbol strips out to side


- On model 202 as of 09/95, model and model 210 pull symbol strips out toward bottom
- On model 208 unclip plastic insert (63) at bottom of instrument cluster housing, pull back slightly and remove symbol strips downward.


NOTE: When replacing symbol strips pay attention to vehicle equipment


6 Reinstall in opposite order
