Refrigeration System Test Program
>>
Refrigeration System - Component Locations [41]
Refrigeration System - Component Locations [41]
Air Conditioning (A/C)
Models 210

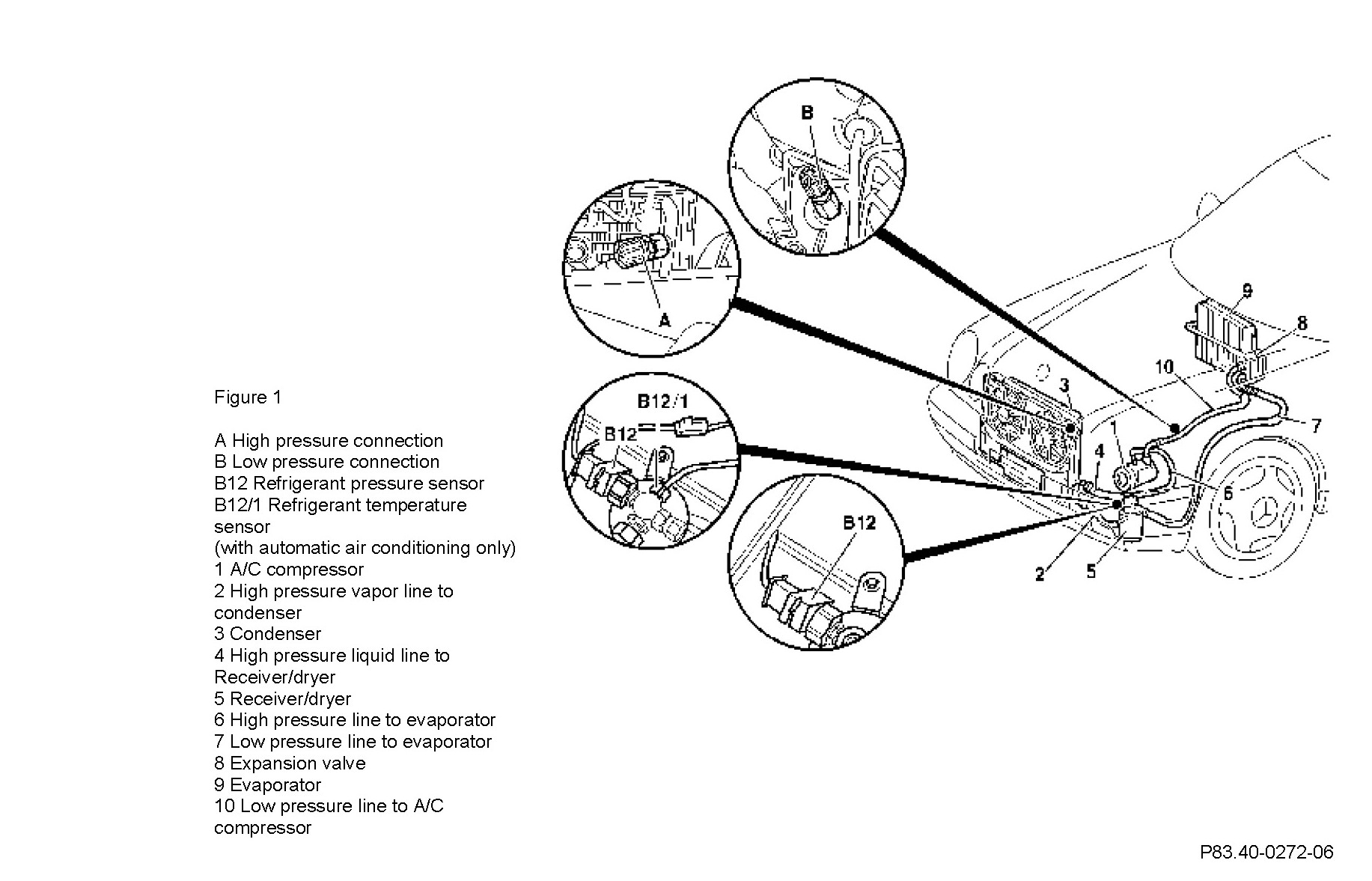

Refrigeration System Test Program - Component Locations
