Heater Core Temperature Sensor / Switch
>>
Locations
>>
Heater Core Temperature Sensor
Heater Core Temperature Sensor

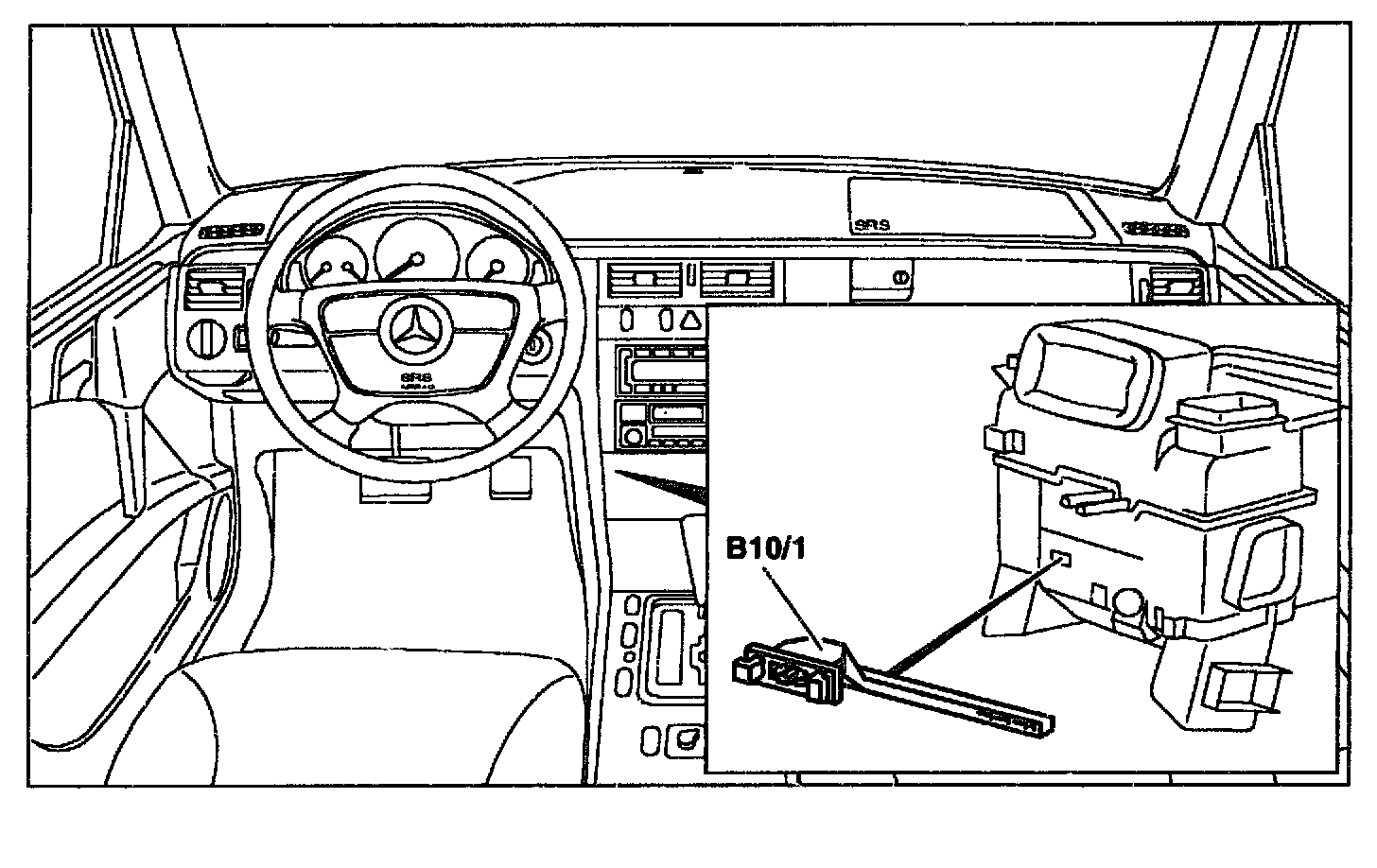

The heater core temperature sensor (B10/1) is located on the heater air conditioning housing behind the heater core
