E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Heater Core Case
>>
Service and Repair
Heater Core Case: Service and Repair
Component ID

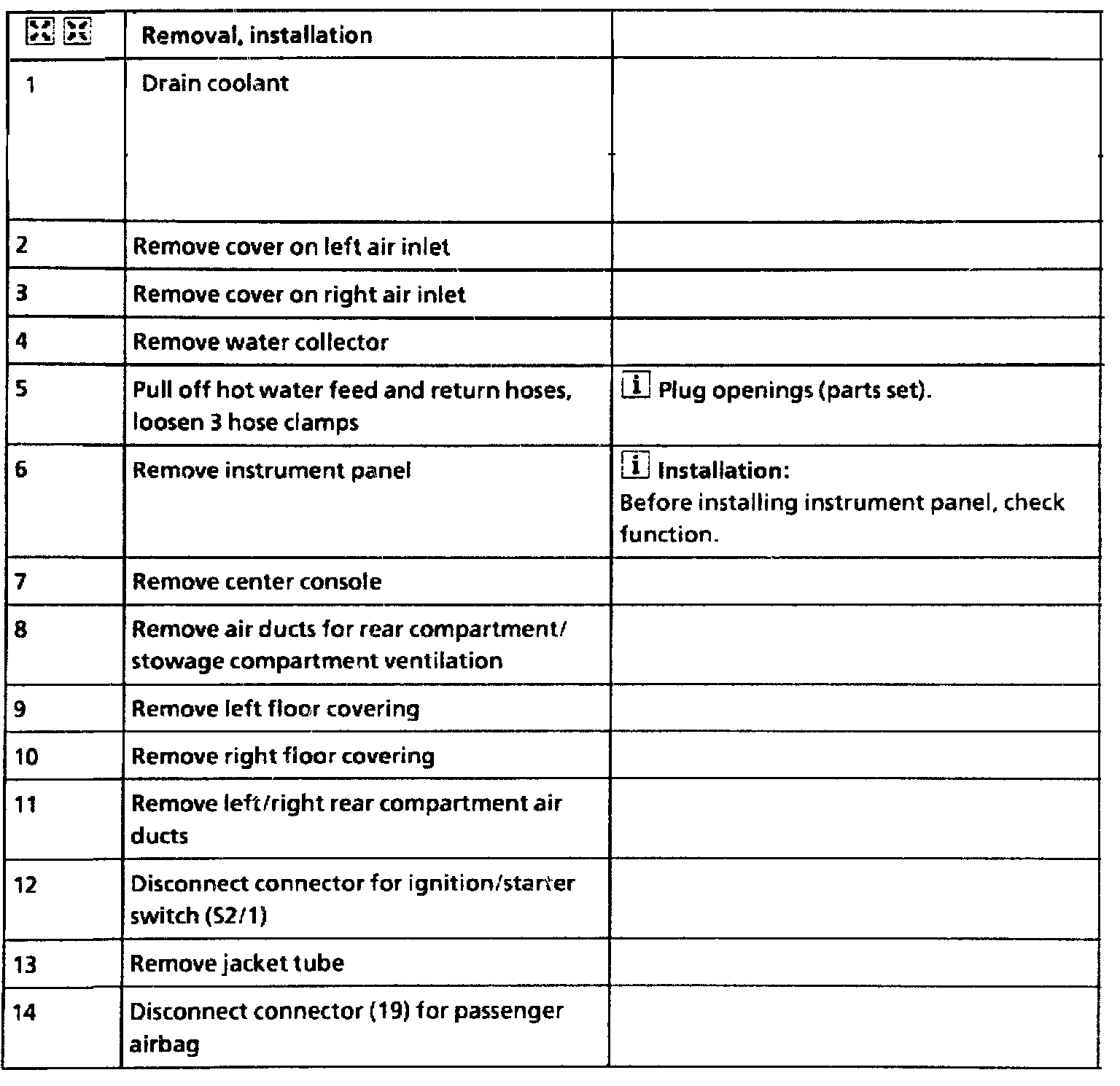

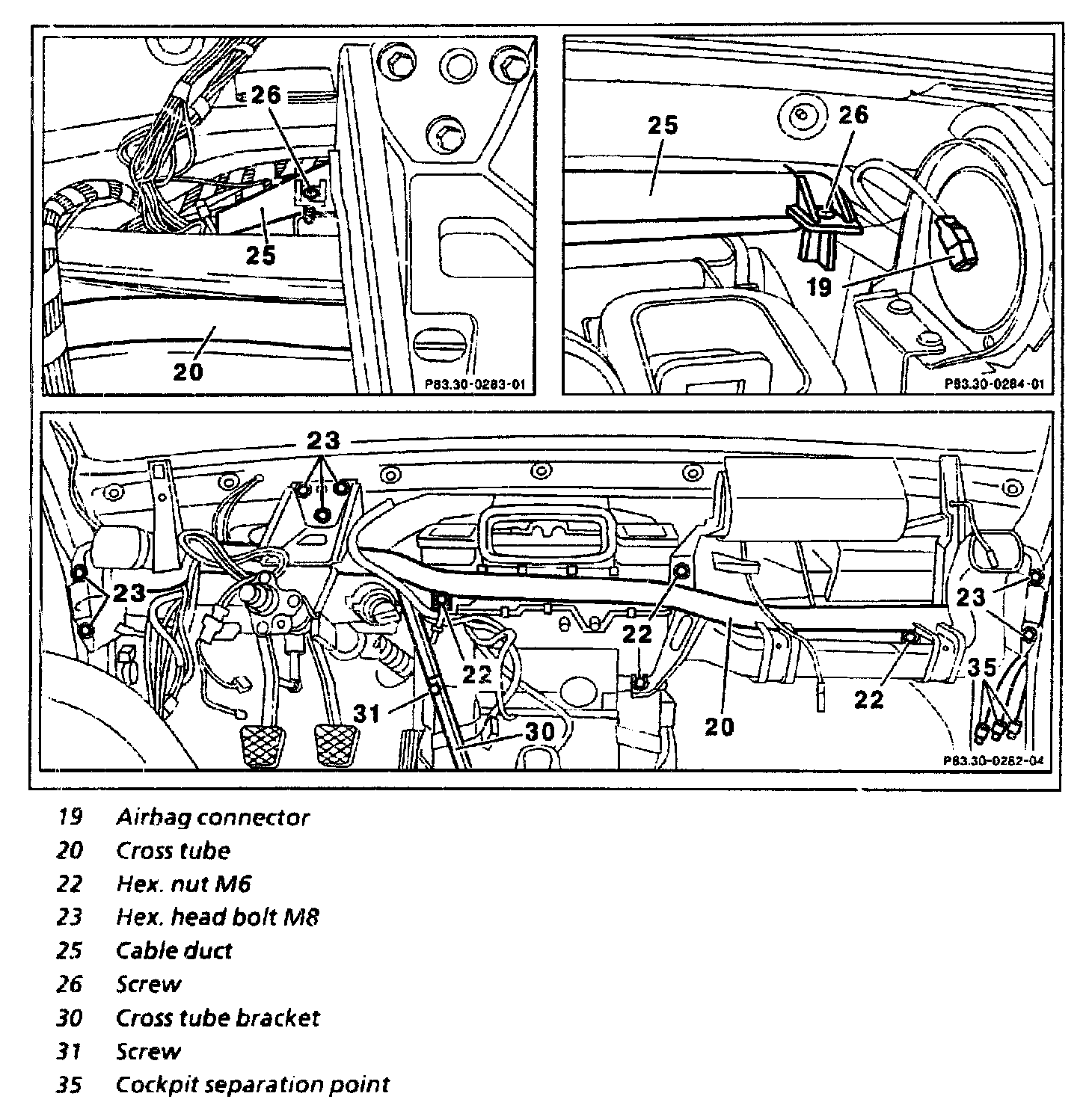

Removal, installation, Part 1 of 2

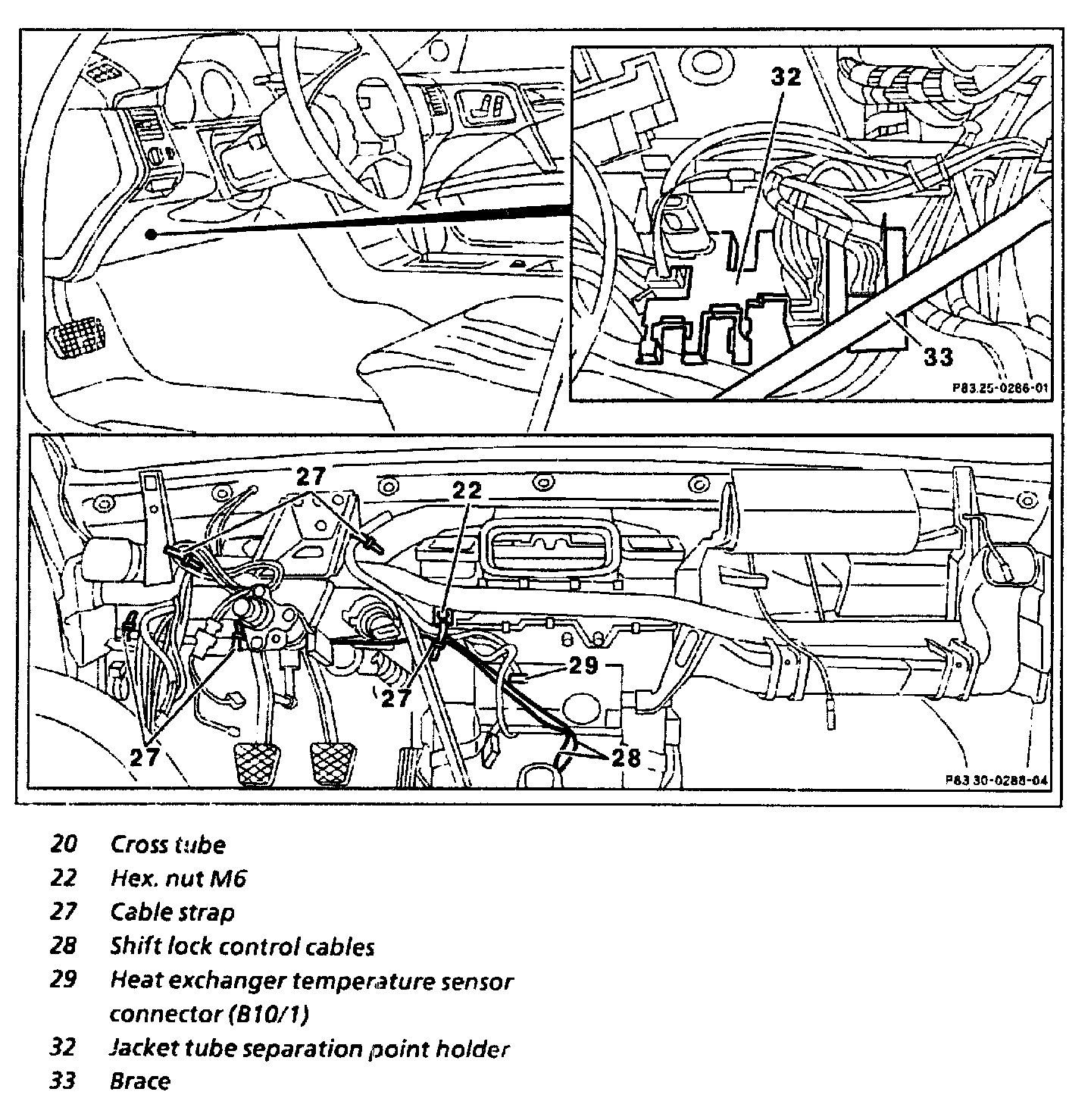

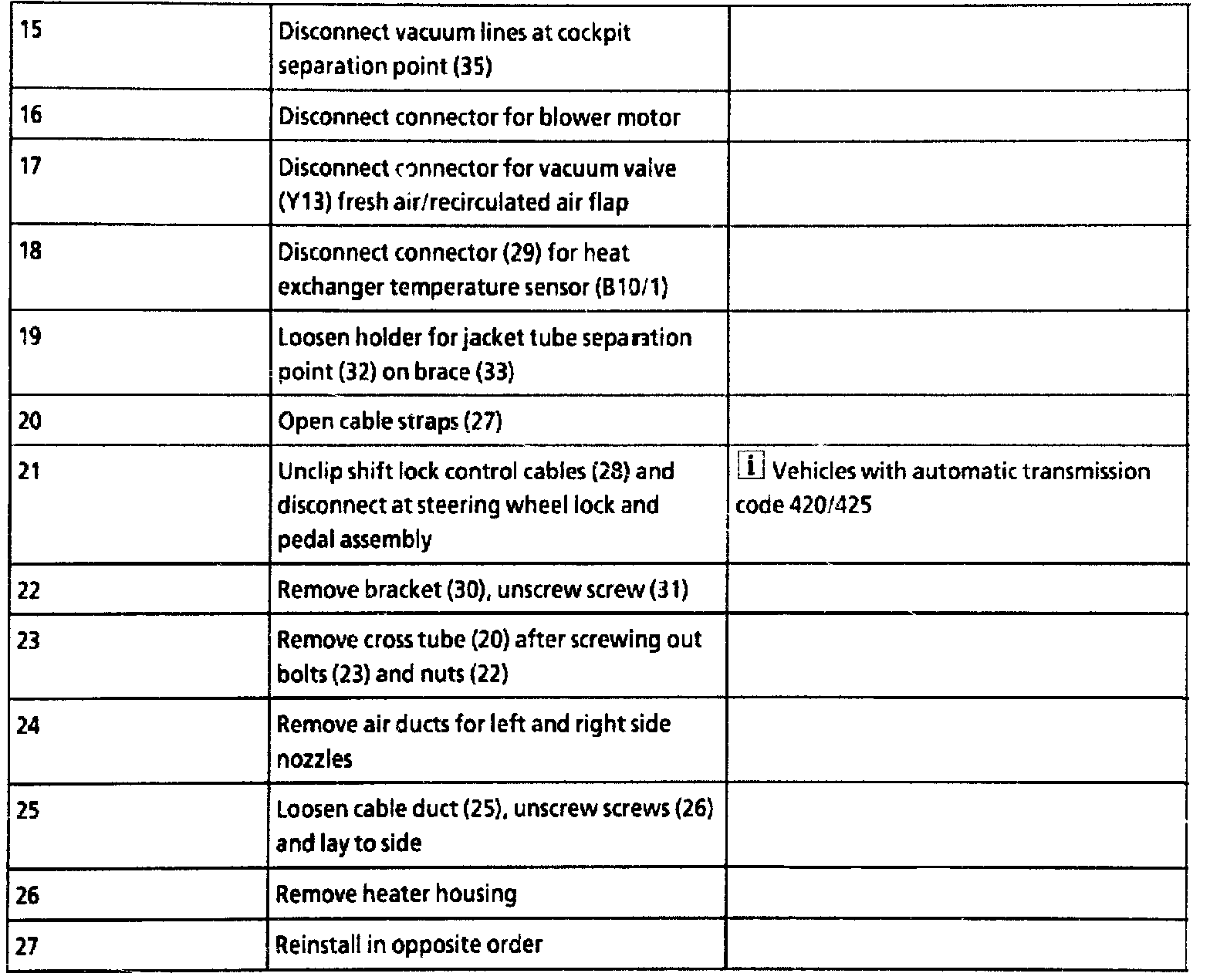

Removal, installation, Part 2 of 2
