Expansion Valve: Locations

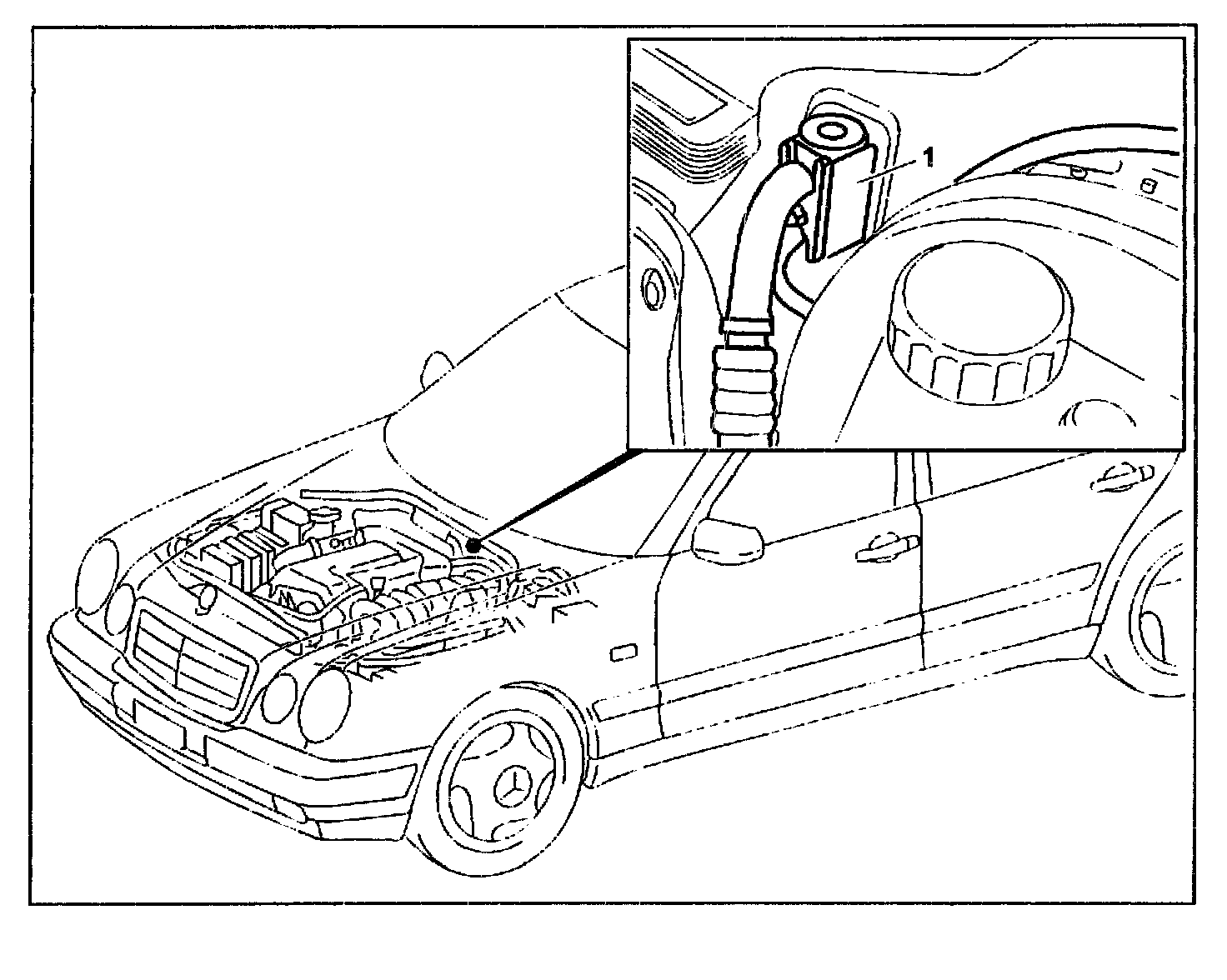

The expansion valve (1) is located at the left rear in the engine compartment next to the brake servo-unit.
