Evaporator Core: Locations

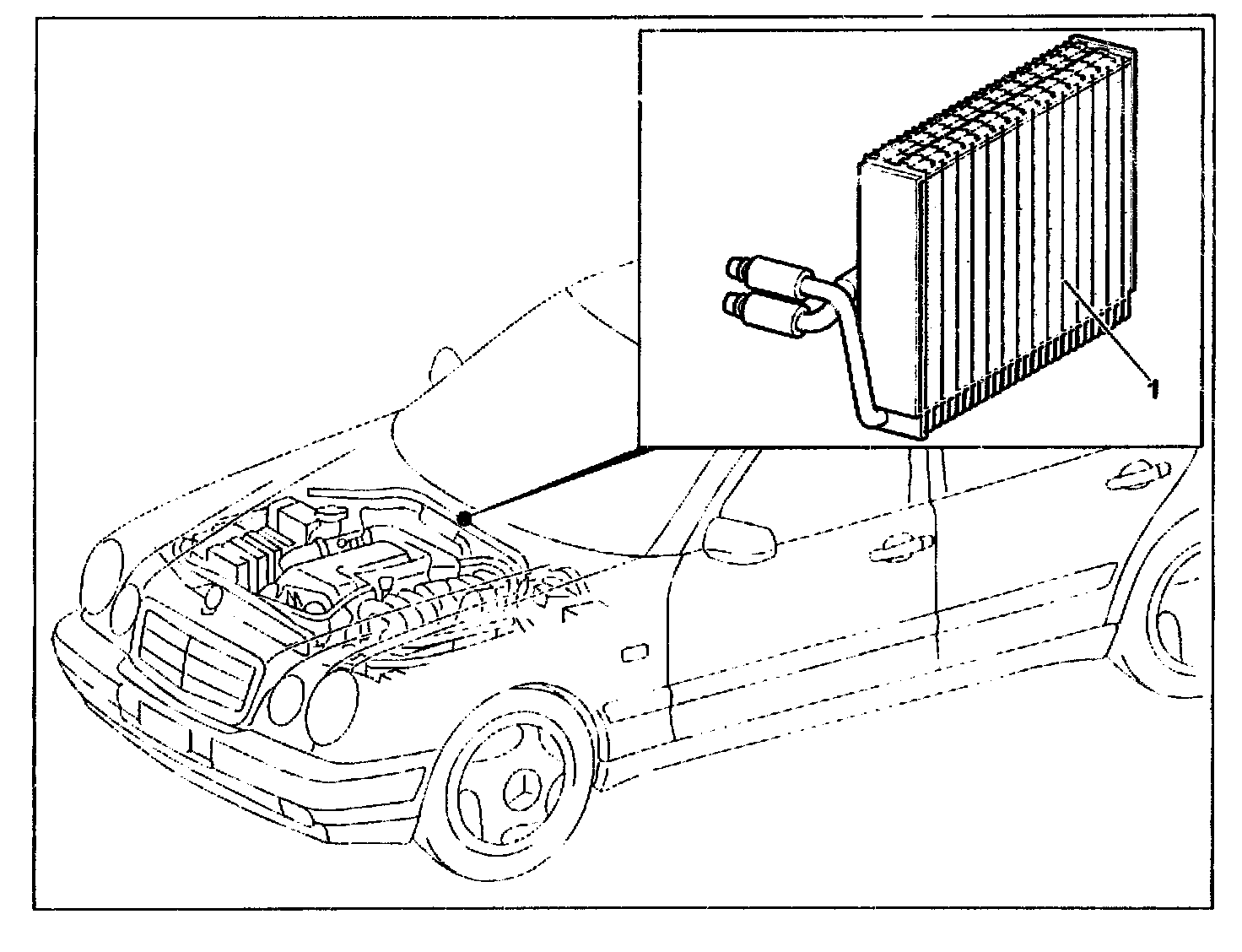

The evaporator (1) is located in the air conditioning housing behind the instrument panel. Illustrated: Behr version.
