Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Heating and Air Conditioning >> Evaporator Case >> Description and Operation >> Function >> Heating Mode

Heating Mode

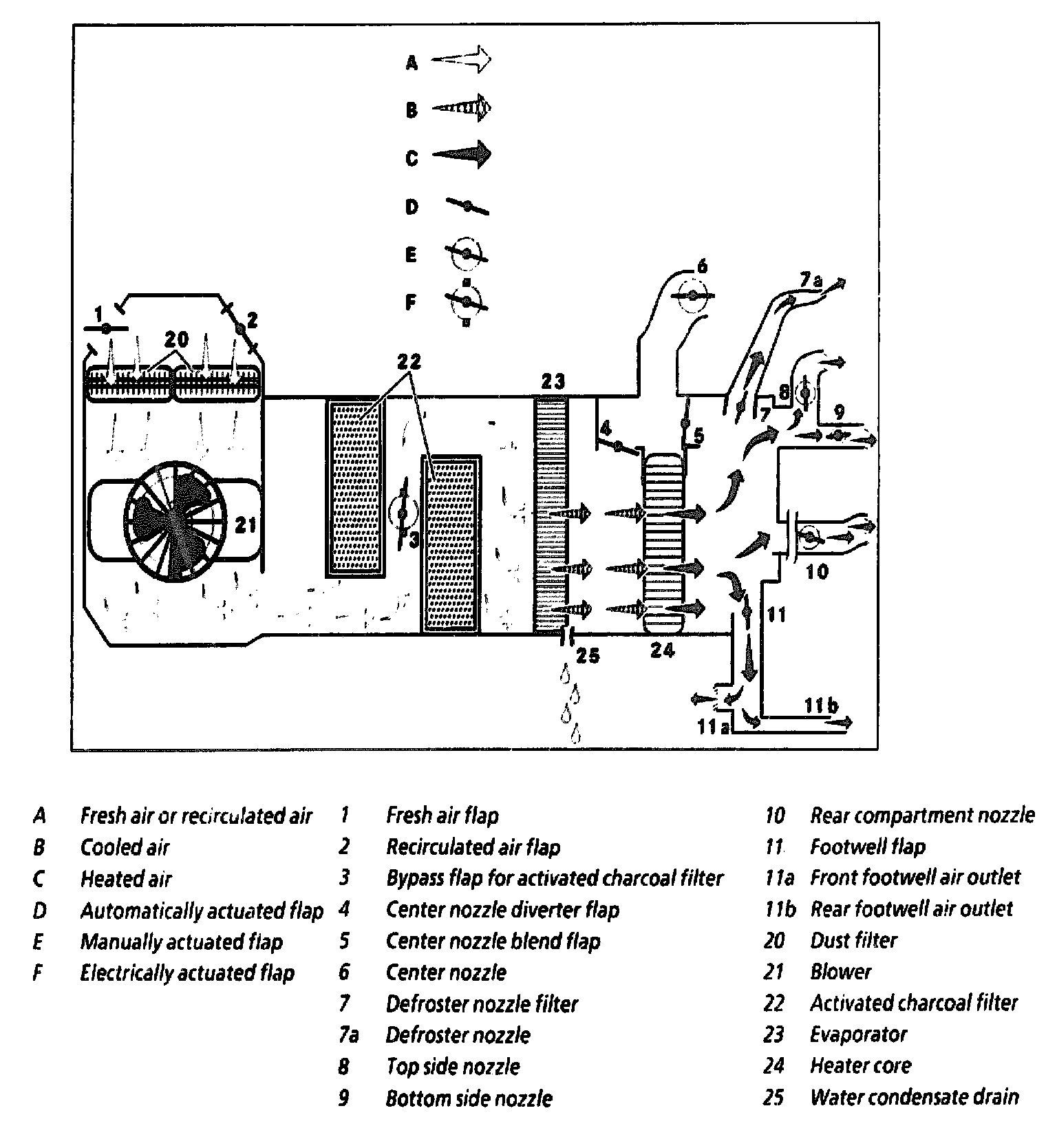

Automatic air conditioning (auto A/C) heating mode

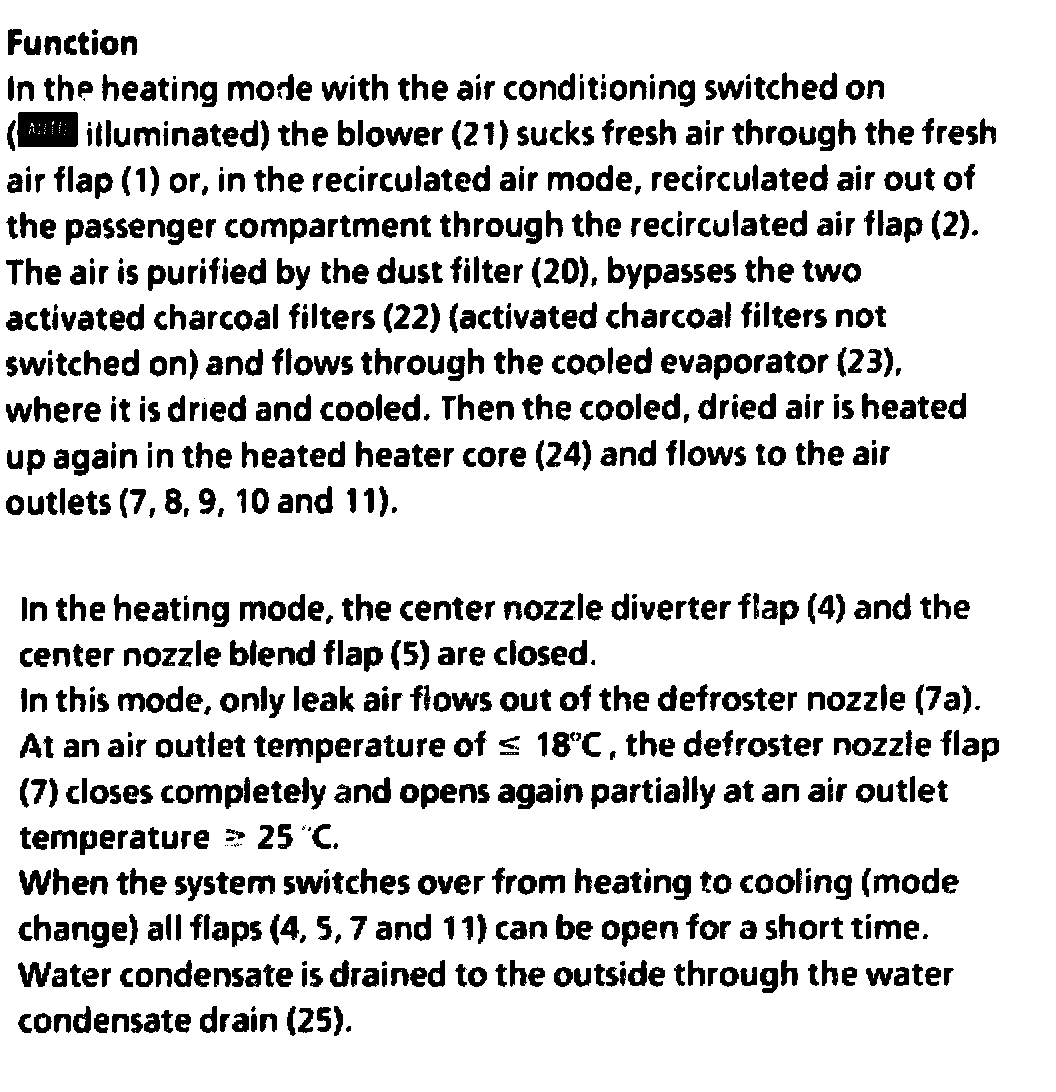

Automatic air conditioning (auto AAC) heating mode
