Condenser Fan: Service and Repair

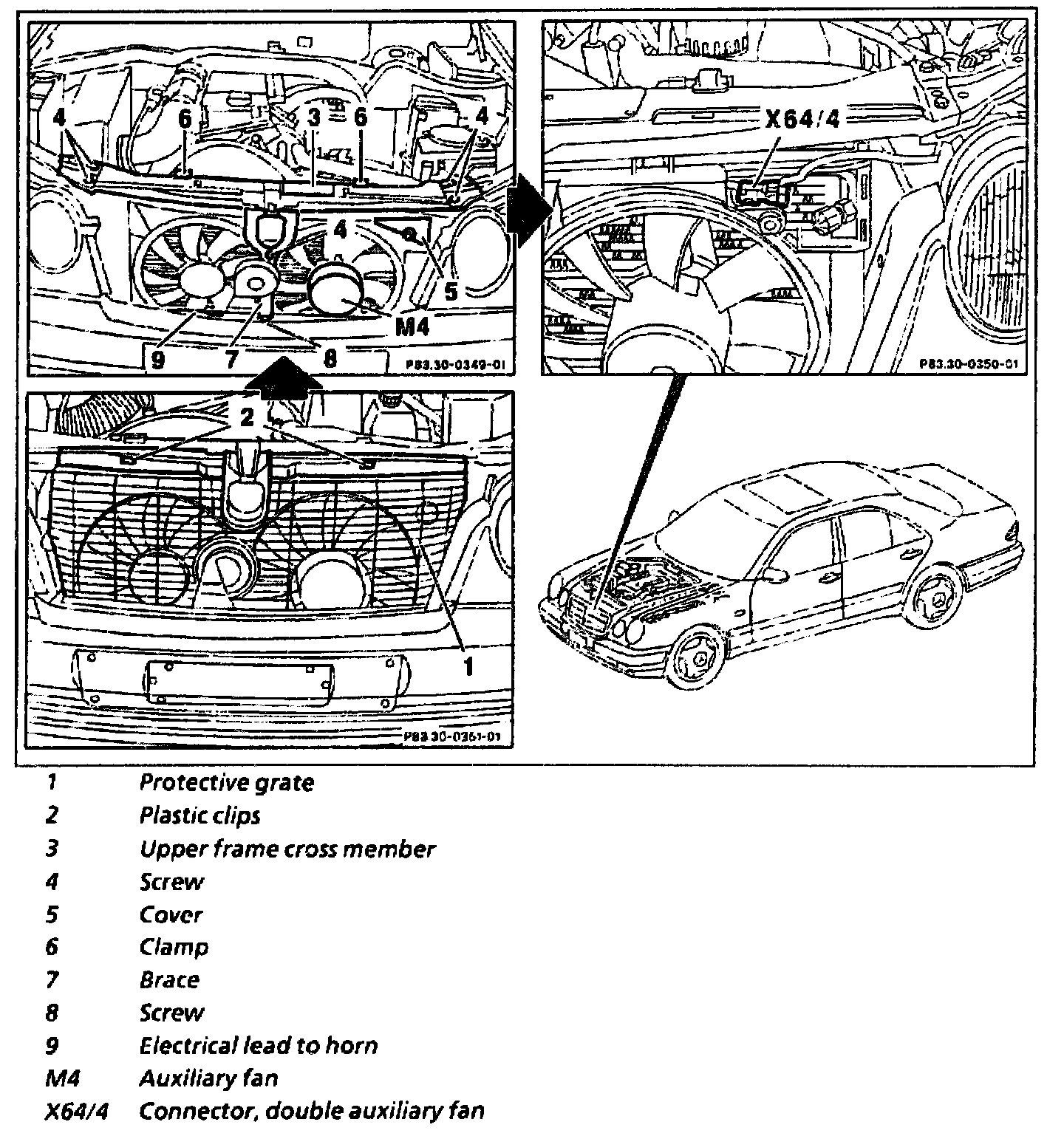

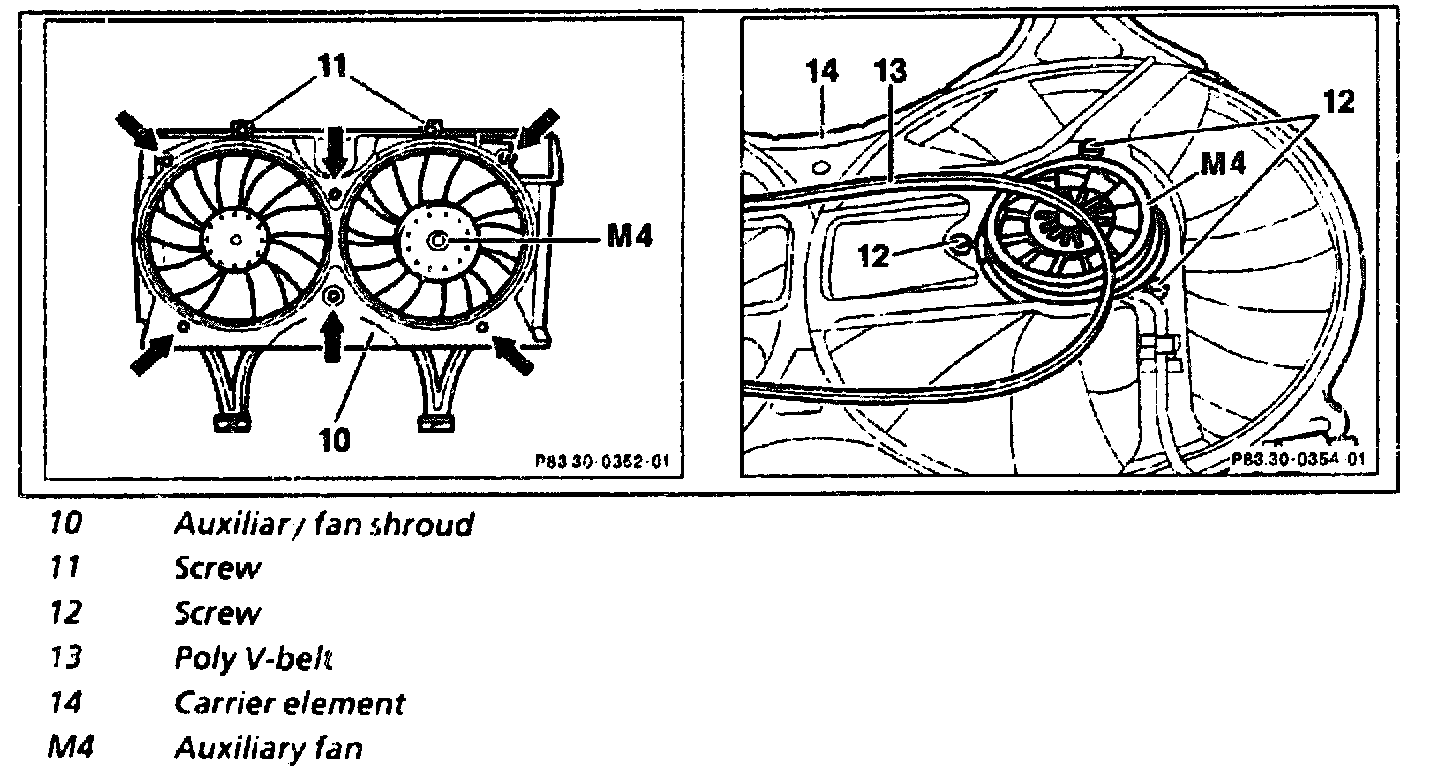

Component Identification

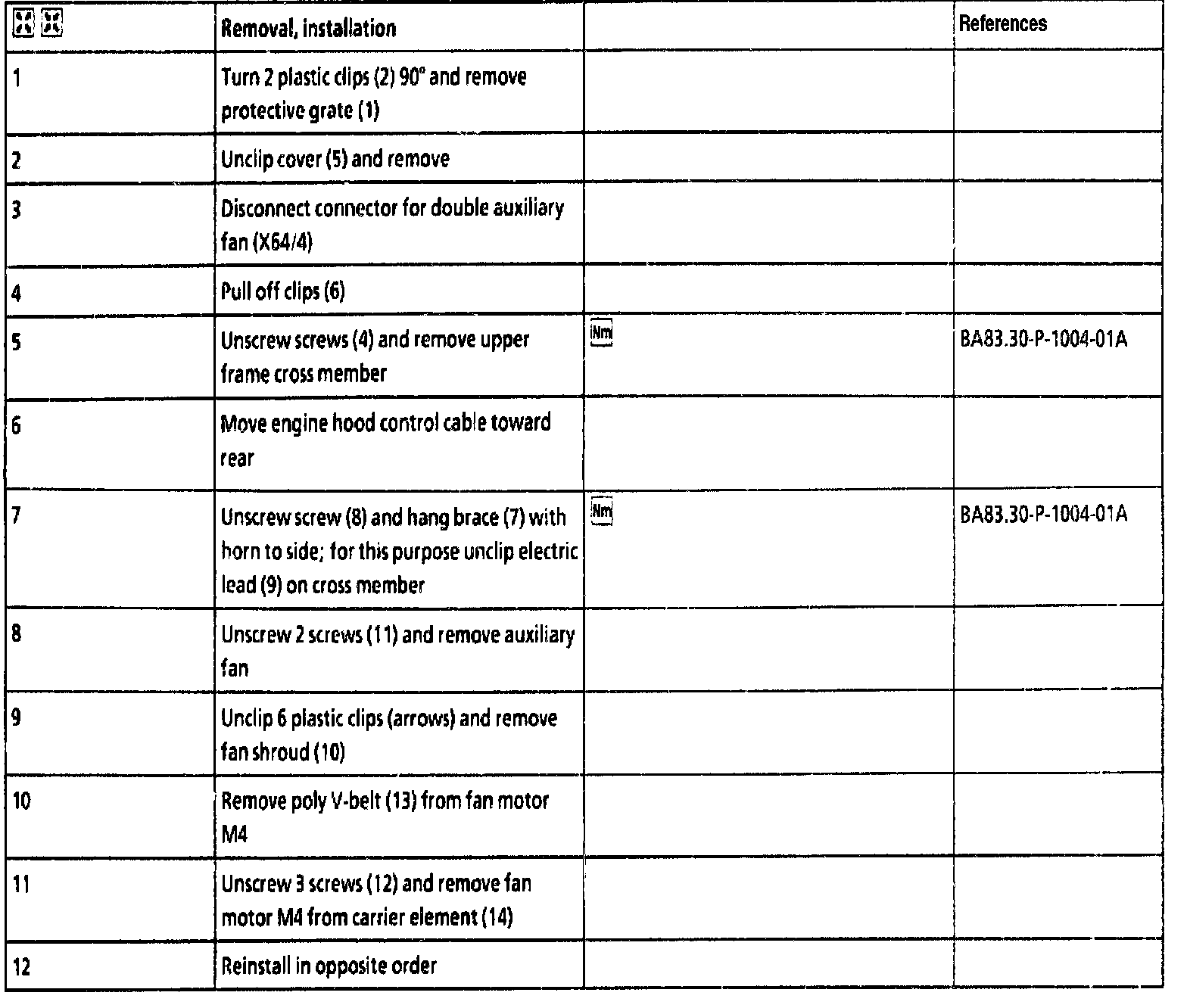

Removal, installation

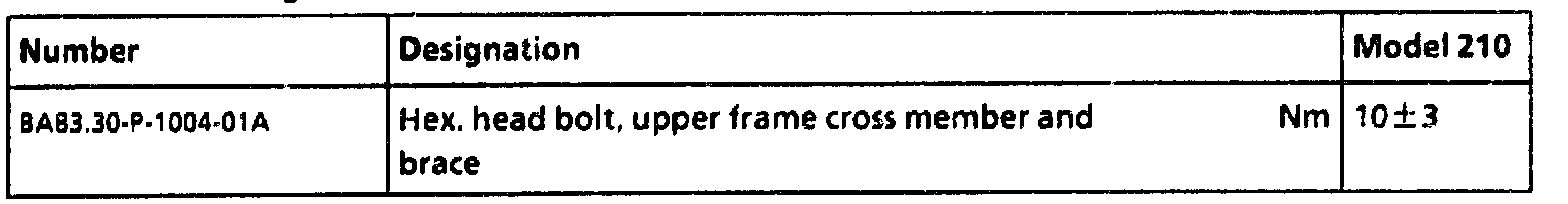

References (BA), Air conditioning
