GF83.70-P-4002-01A Stationary Heater/Heater Booster Control Module, Location

GF83.70-P-4002-01A Stationary Heater/heater Booster Control Module, Location
MODEL 210
- with CODE (228) Stationary heater
MODEL 210 up to 31.8.96
- with ENGINE 602.982 with heater booster
MODEL 463 as of 1.6.94
- with CODE (H12) Stationary heater Webasto Tele Thermo Top S

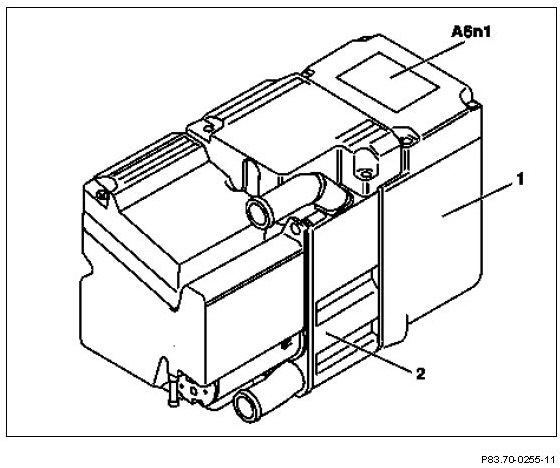

The control module (A6n1) is an integral part of the heater. It forms an inseparable unit with the heat exchanger (1).

The control module/heat exchanger unit is bolted to the burner housing (2).

The control module is connected to the power supply and all electrical components on the stationary heater or heater booster by the multi-point connector.

The figure shows the stationary heater. The heater booster in model 210 up to 31 September 96 with engine 602.982 is identical in terms of design, however, did not have its own coolant circulation pump.
