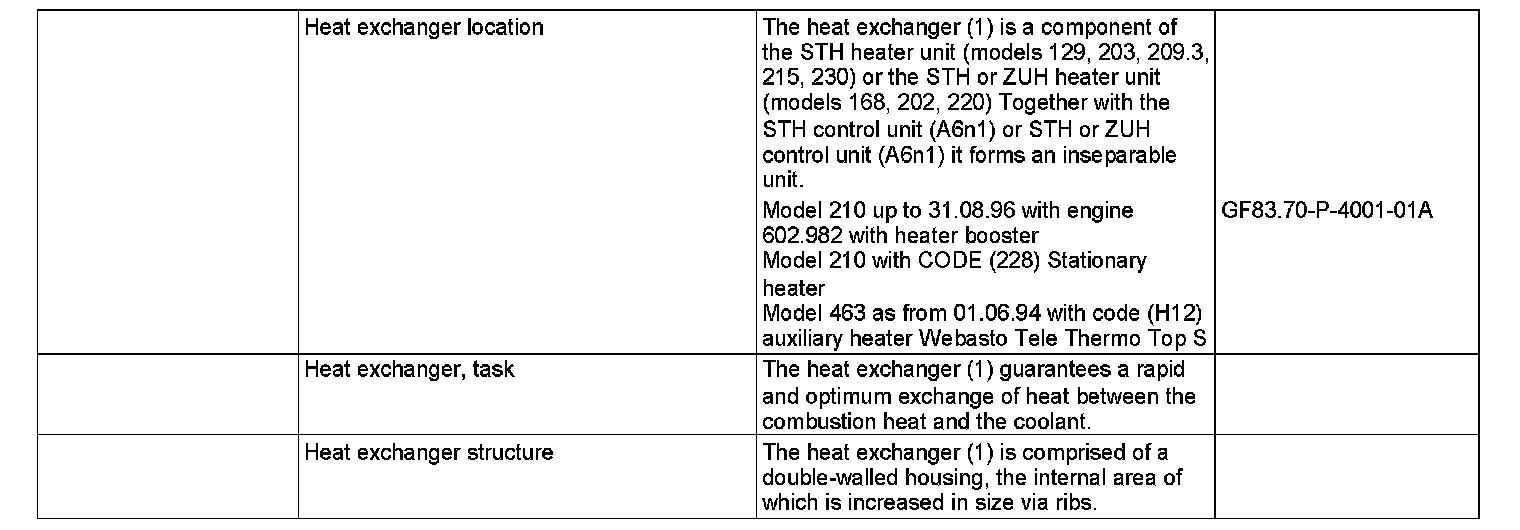

GF83.70-P-4001A Heat Exchanger, Location/Task/Design

GF83.70-P-4001A Heat Exchanger, Location/Task/Design
MODEL 168 with ENGINE 668.940 with heater booster
MODEL 202 with ENGINE 611.960 with heater booster
MODEL 210 with heater booster
MODEL 220 with ENGINE 613.960 with heater booster
MODEL 220 with ENGINE 628.960 with heater booster
MODEL 129 as of 1.6.97
- with CODE (228) Stationary heater
MODEL 203 up to 23.4.04, 210, 215, 220, 230
- with CODE (228) Stationary heater
MODEL 463 as of 1.6.94 up to 31.5.12
- with CODE (H12) Auxiliary heater Webasto Tele Thermo Top S
MODEL 209.3 up to 31.5.04
- with CODE (228) Stationary heater

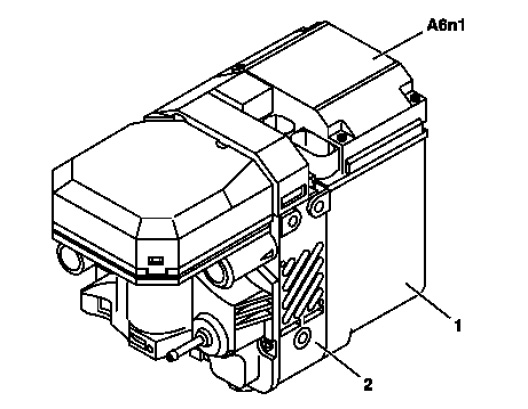

Models 129, 168, 202, 203, 209.3, 215, 220, 230
1 Heat exchanger
2 Burner housing
A6n1 Stationary heater control unit (models 129, 203, 209.3, 215, 230) Stationary heater or heater booster control unit (models 168, 202, 220)
