GF83.70-P-4000GC Burner Housing, Location/Task/Design

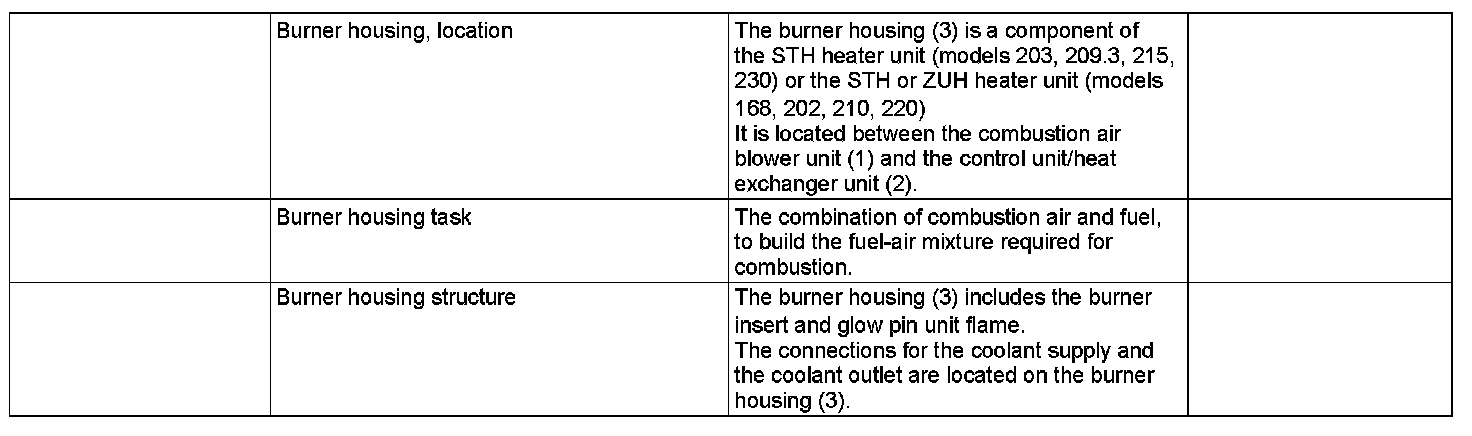

GF83.70-P-4000GC Burner Housing, Location/task/design
- with heater booster [models 210 as of 1.9.96]
- with CODE (228) Stationary heater [models 203 up to 23.4.04, 209.3 up to 31.5.04, 215, 220, 230]

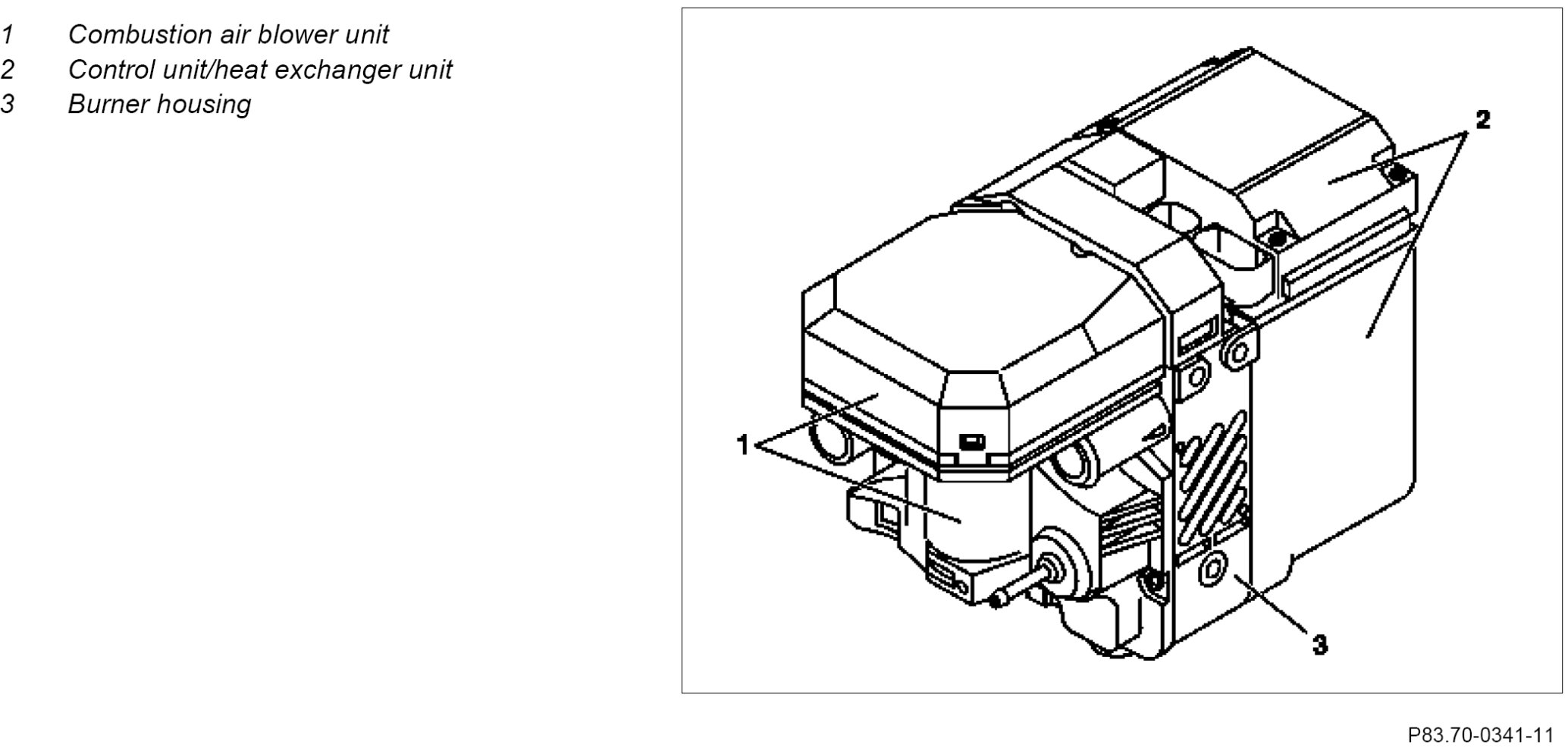

Component Identification:
