Vacuum Element For Footwell Flap

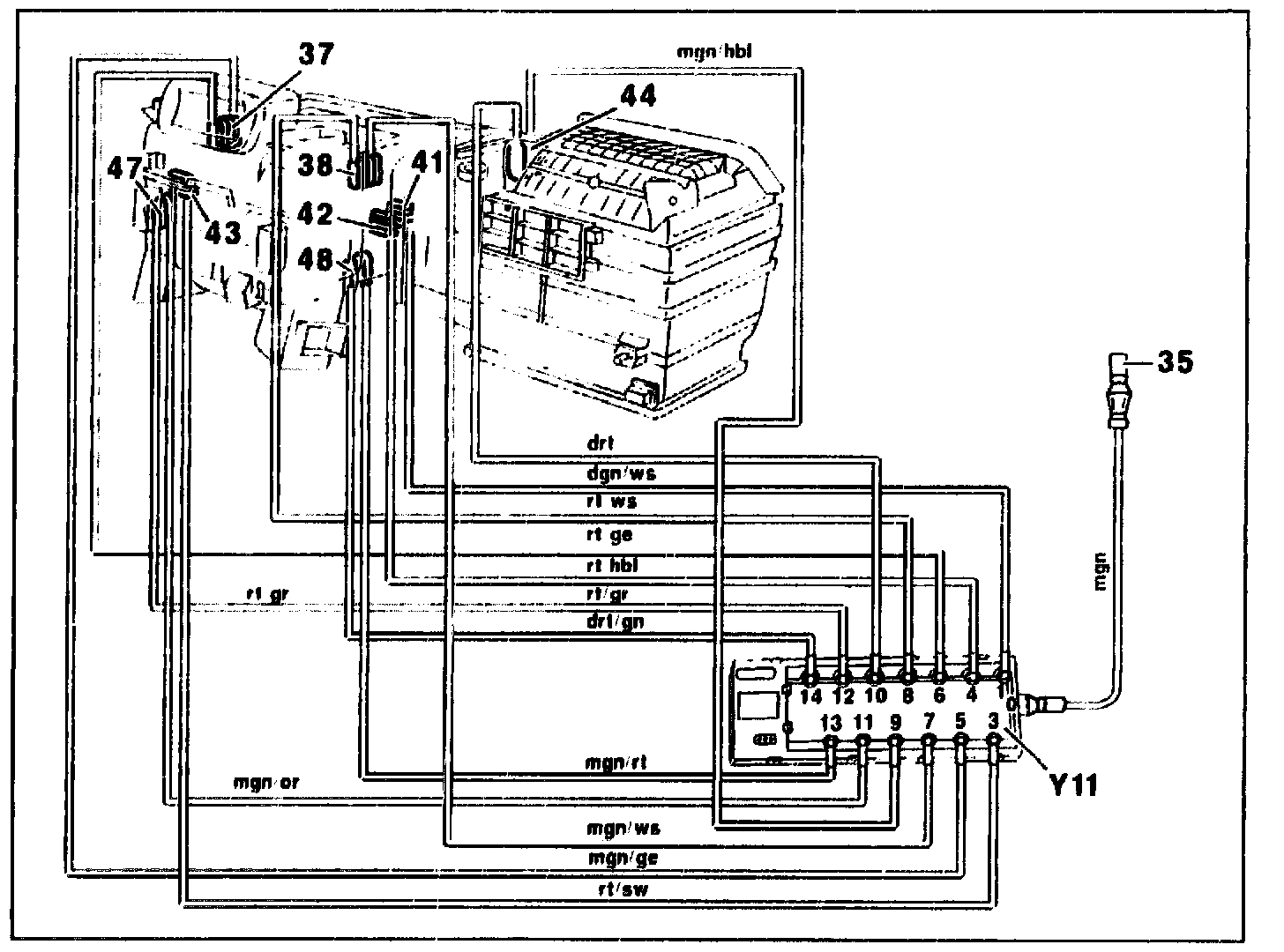

The footwell flap vacuum elements (43, 48) are located on the air conditioning housing.
