Vacuum Element For Blend Flap

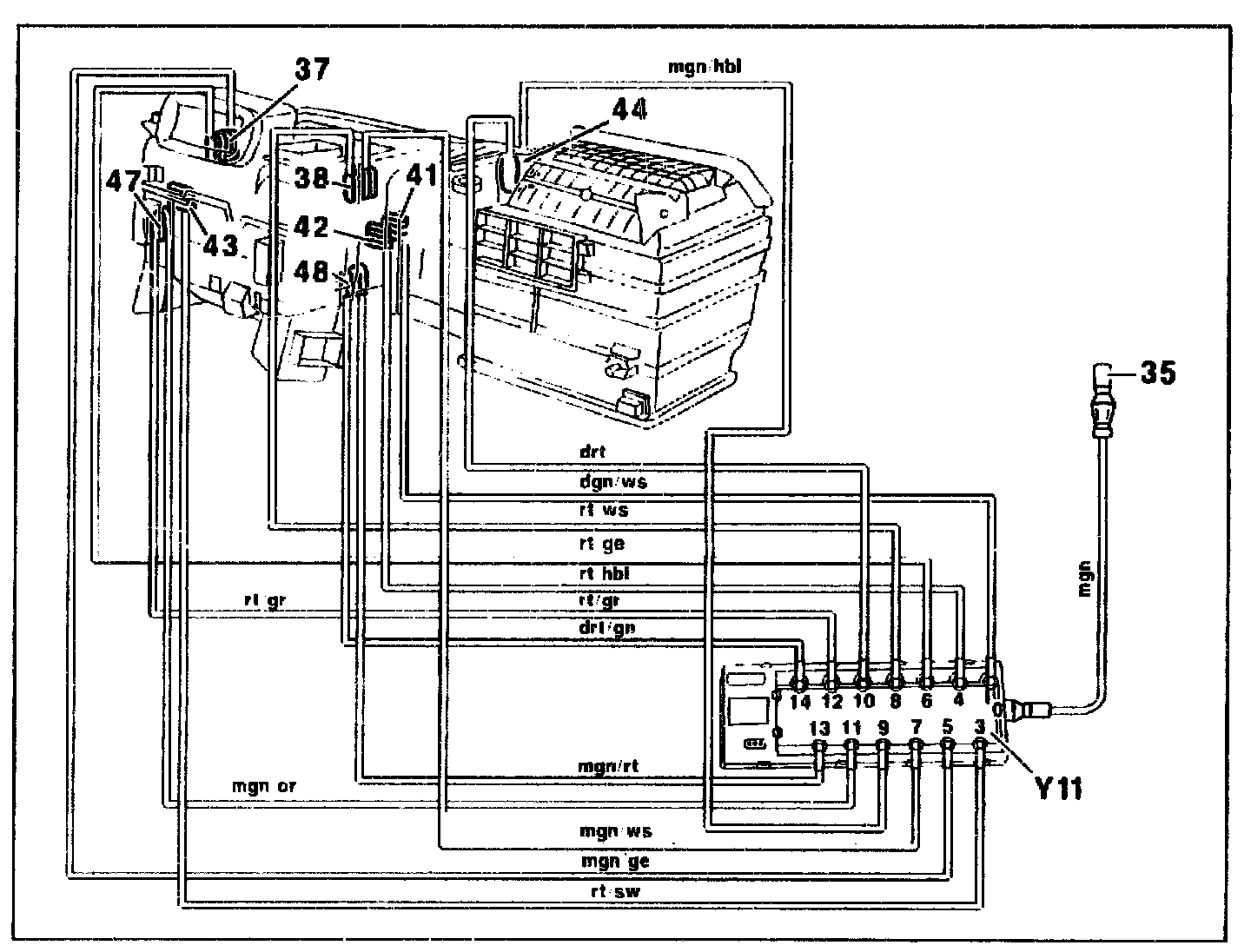

The blend flap vacuum elements (42, 47) are located on the air conditioning housing.
