AR22.10-P-4350CV Remove/Install Left Engine Support

Remove, Install Left Engine Support







1 Remove engine mounts
2 Remove poly V-belt

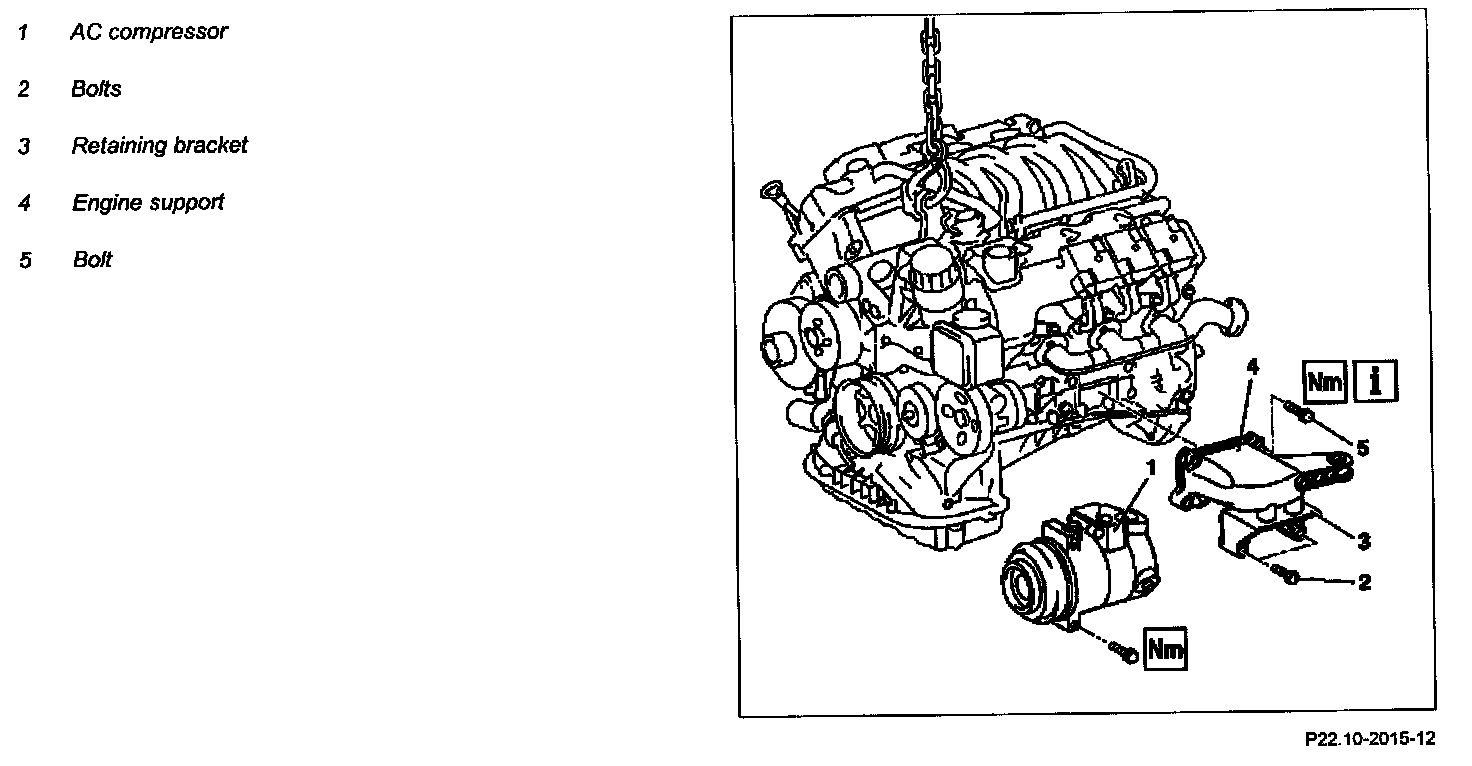

3 Unbolt AC compressor (1)

NOTE: Attach AC compressor at bottom in engine compartment with lines and cables connected.

4 Unscrew bolts (2) of retaining bracket (3) at oil pan
5 Unbolt engine support (4) at crankcase

NOTE: Bolts (5) must be used only once.

6 Remote engine support (4) together with retaining bracket (3)
7 Unbolt retaining bracket (3) of engine support (4)
8 Install in the reverse order.
