AR22.10-P-4340CV Remove/Install Right Engine Support

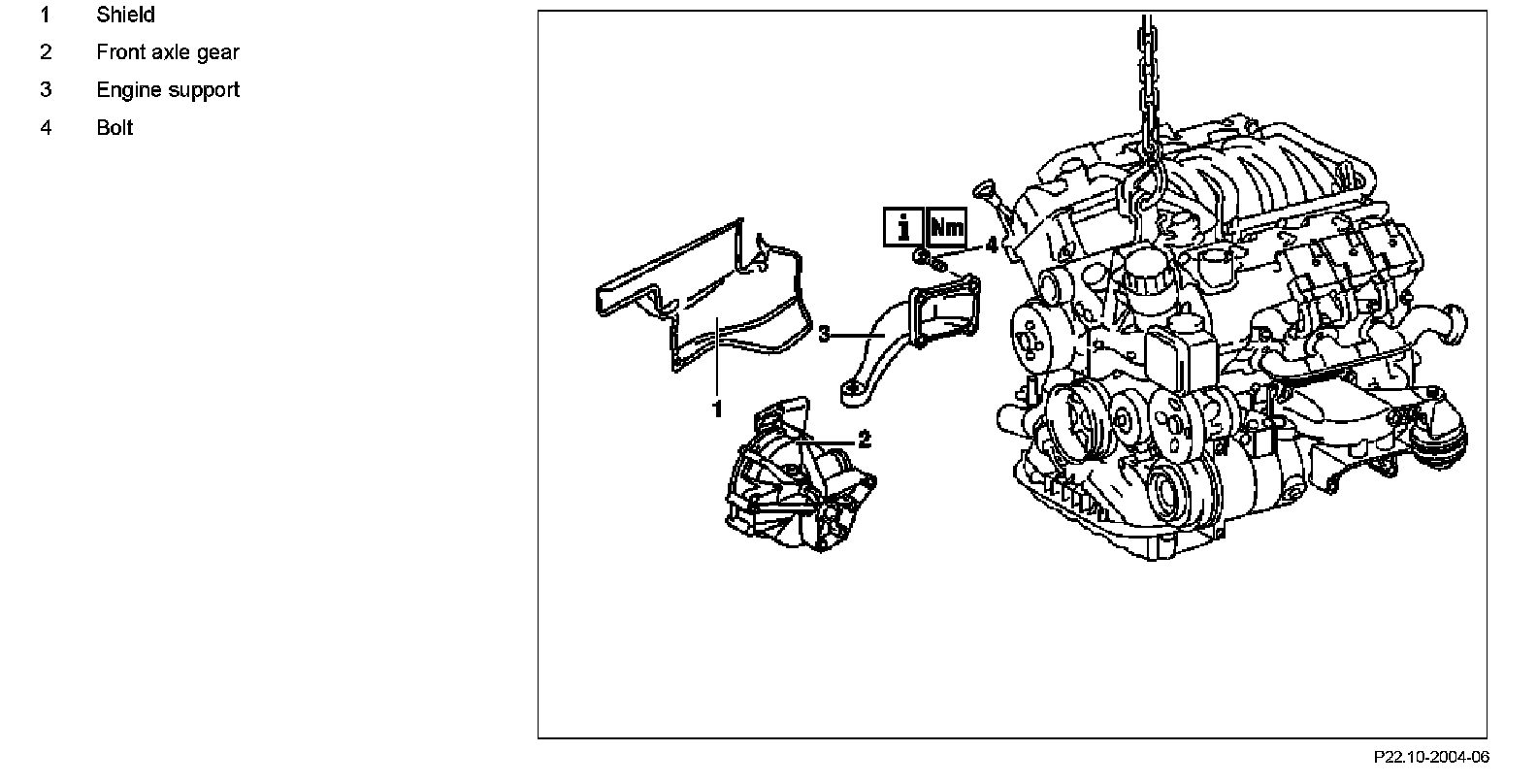

Removing, installing right engine support

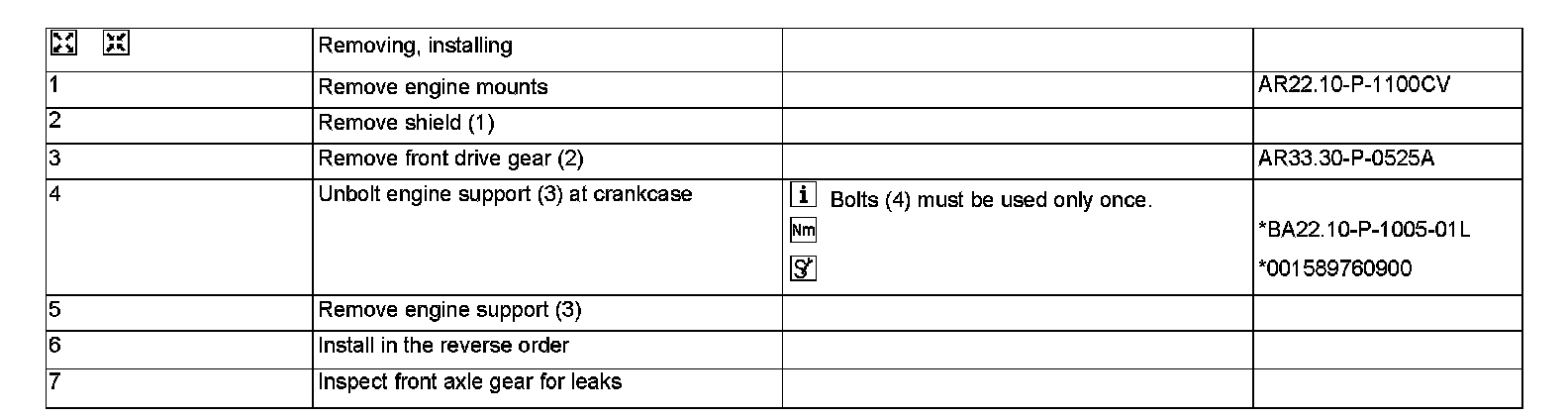

Steps 1-7:
