Heater Control Valve: Locations



Duovalve

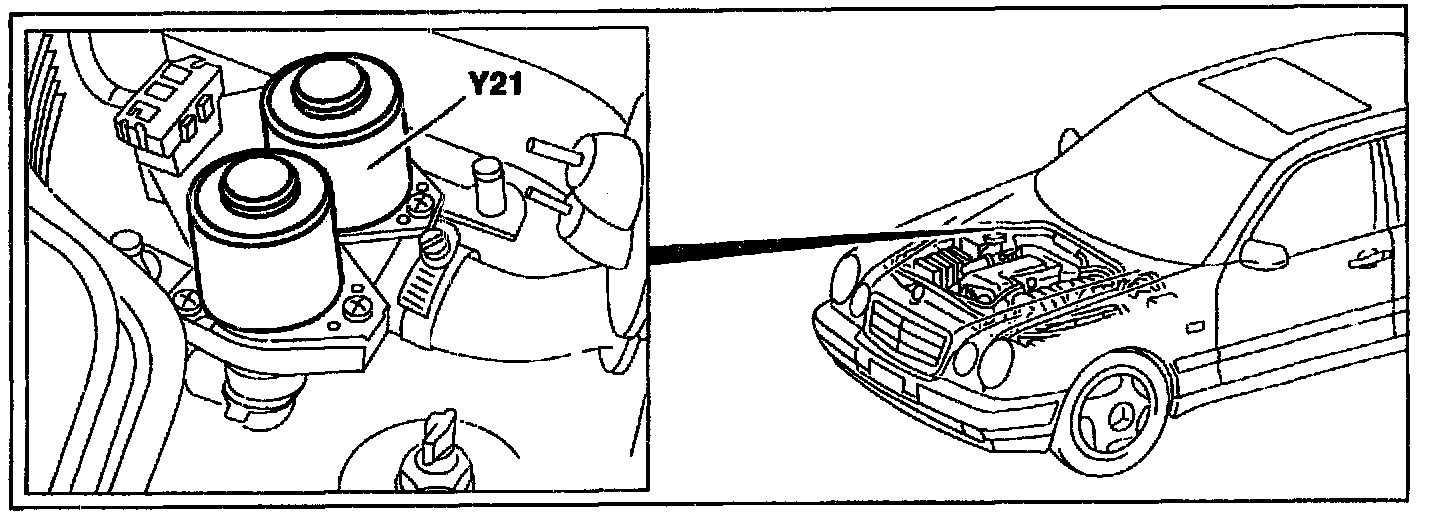

The duovalve (Y21) is located at the right rear in the engine compartment.
