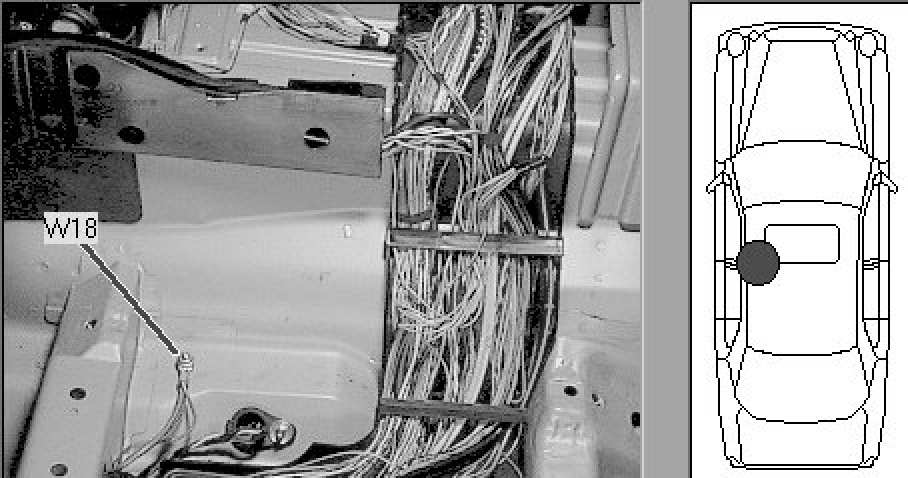

Ground (Left Front Seat Cross Member) - W18
Ground (Left Front Seat Cross Member) - W18
Beneath driver's seat, on cross member.
