B2.2 Engine Compartment (Right)
B2.2 Engine Compartment (Right)

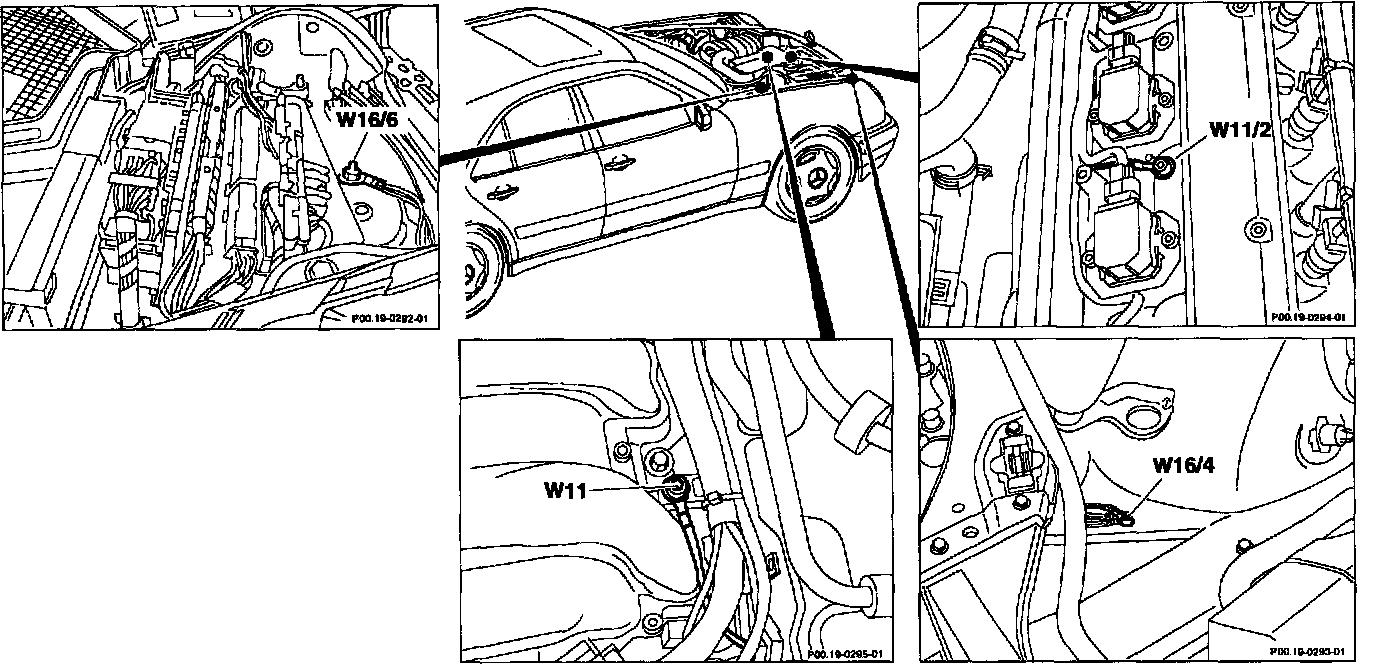

Ground Connection Locations

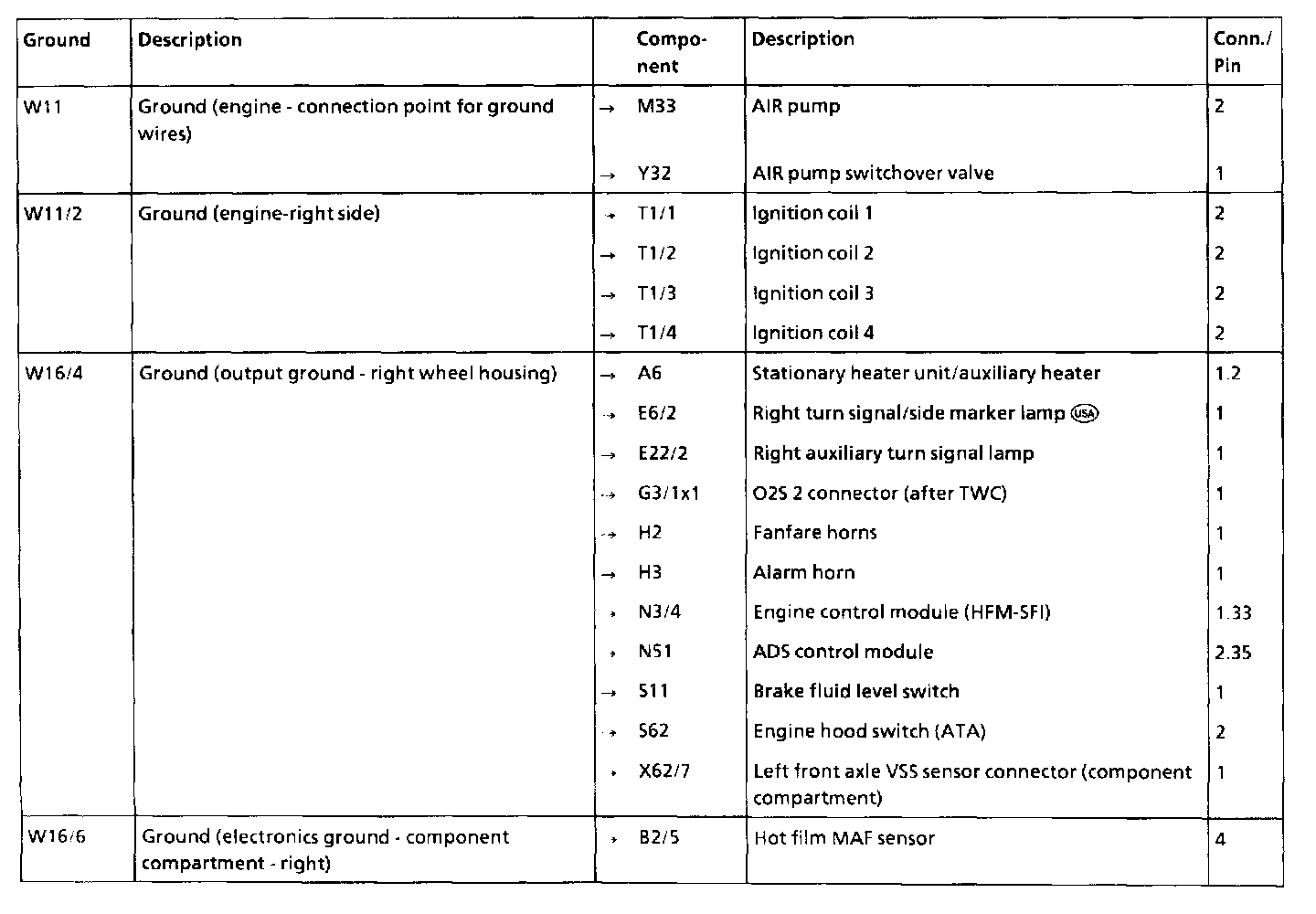

Ground Description/Connector Pin ID
W11 - W16/6:
W16/6 (continued):
