Mercedes Benz
>>
1999
>>
E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Relay Module
>>
LF Fuse and Relay Module (K40/2) PE54.20-U-2100A
LF Fuse and Relay Module (K40/2) PE54.20-U-2100A

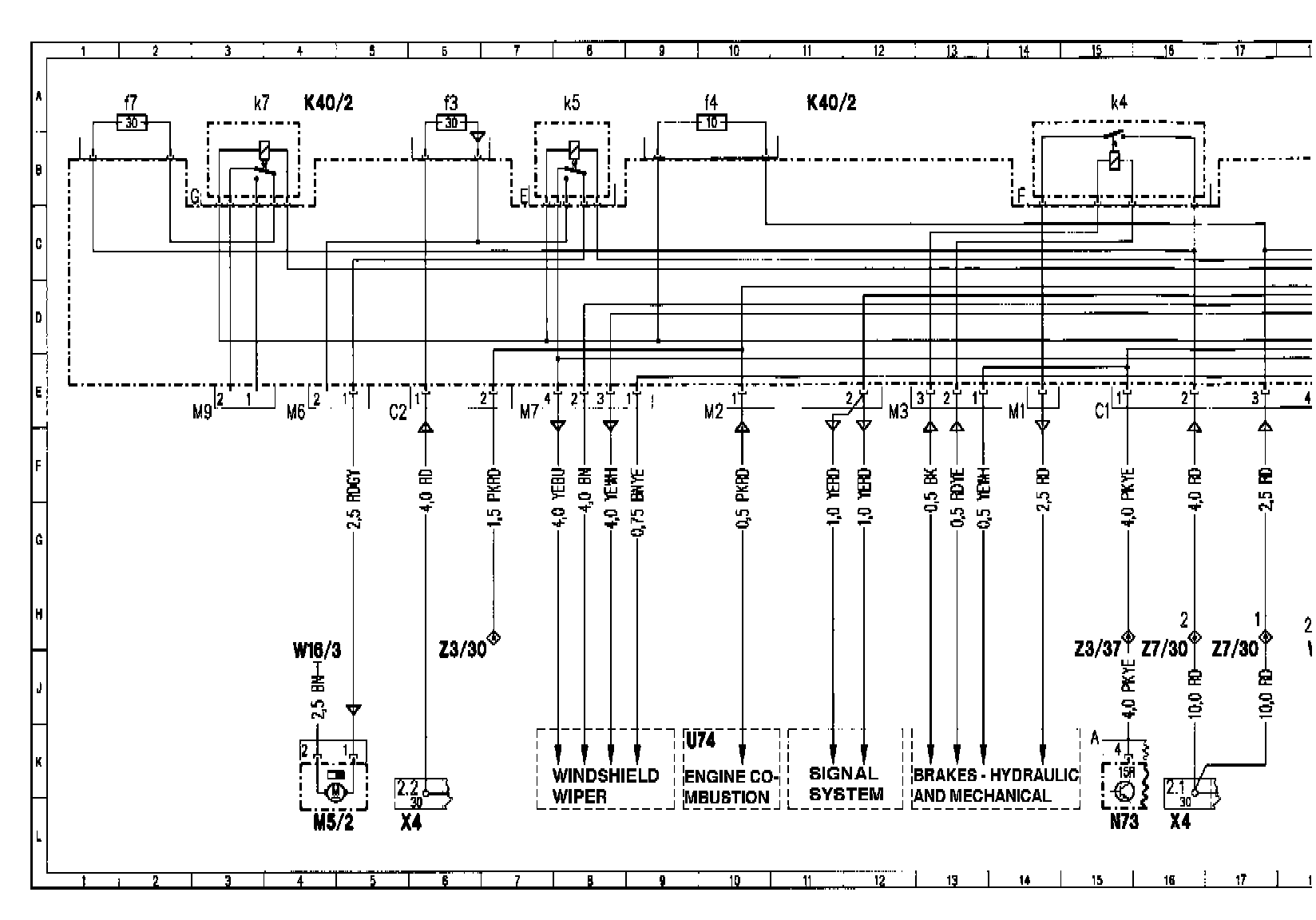

�YK(tKm�KWiring Diagram:
Component Grid Location

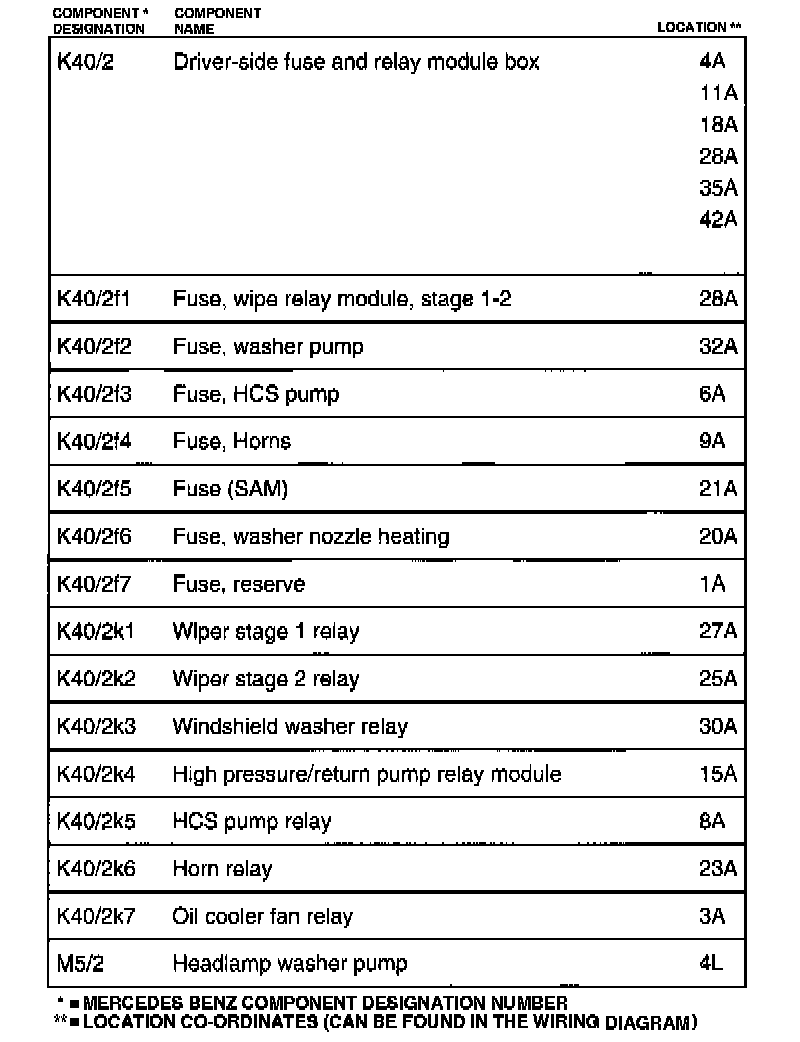

K40/2 - M5/2:

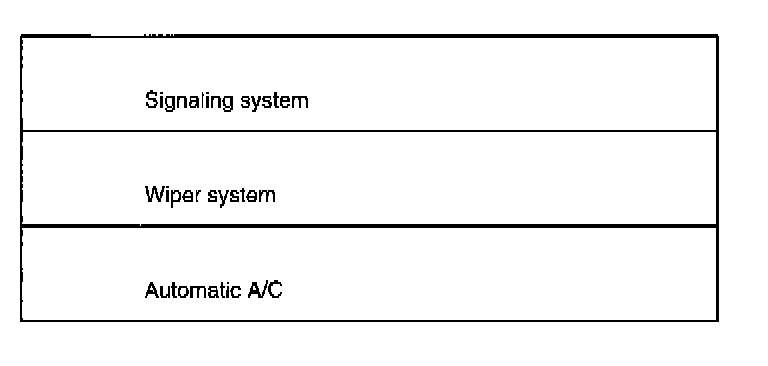

N73 - Z7/30 (Part 1 Of 2):

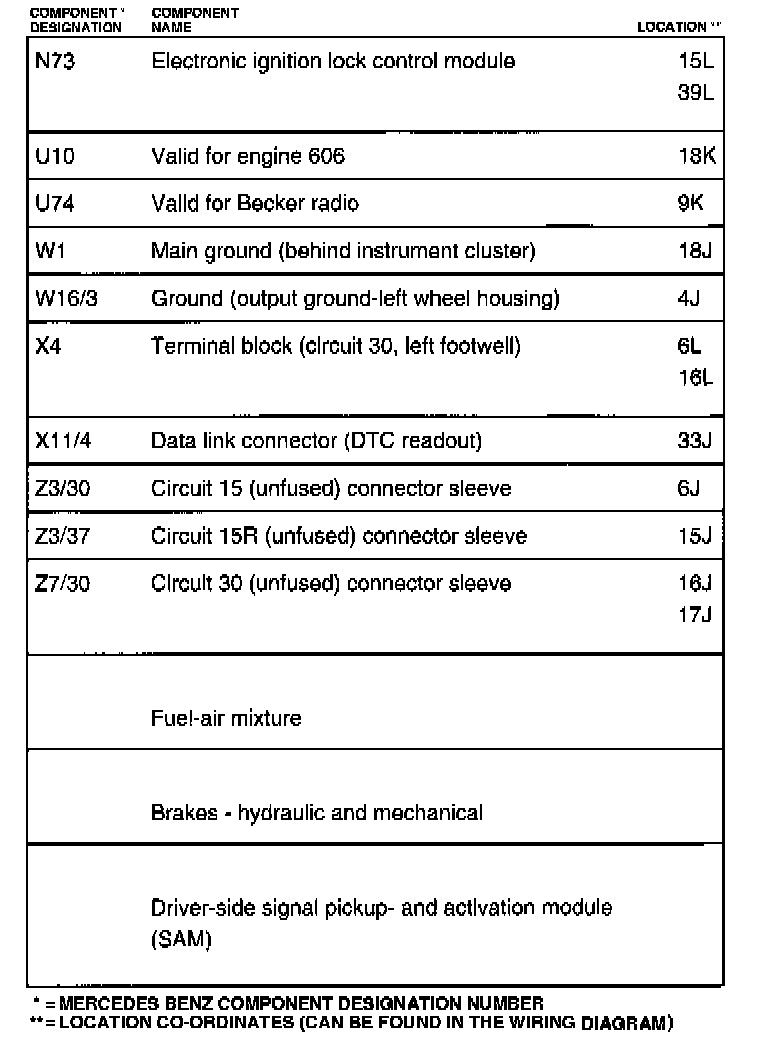

N73 - Z7/30 (Part 2 Of 2):
