E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>

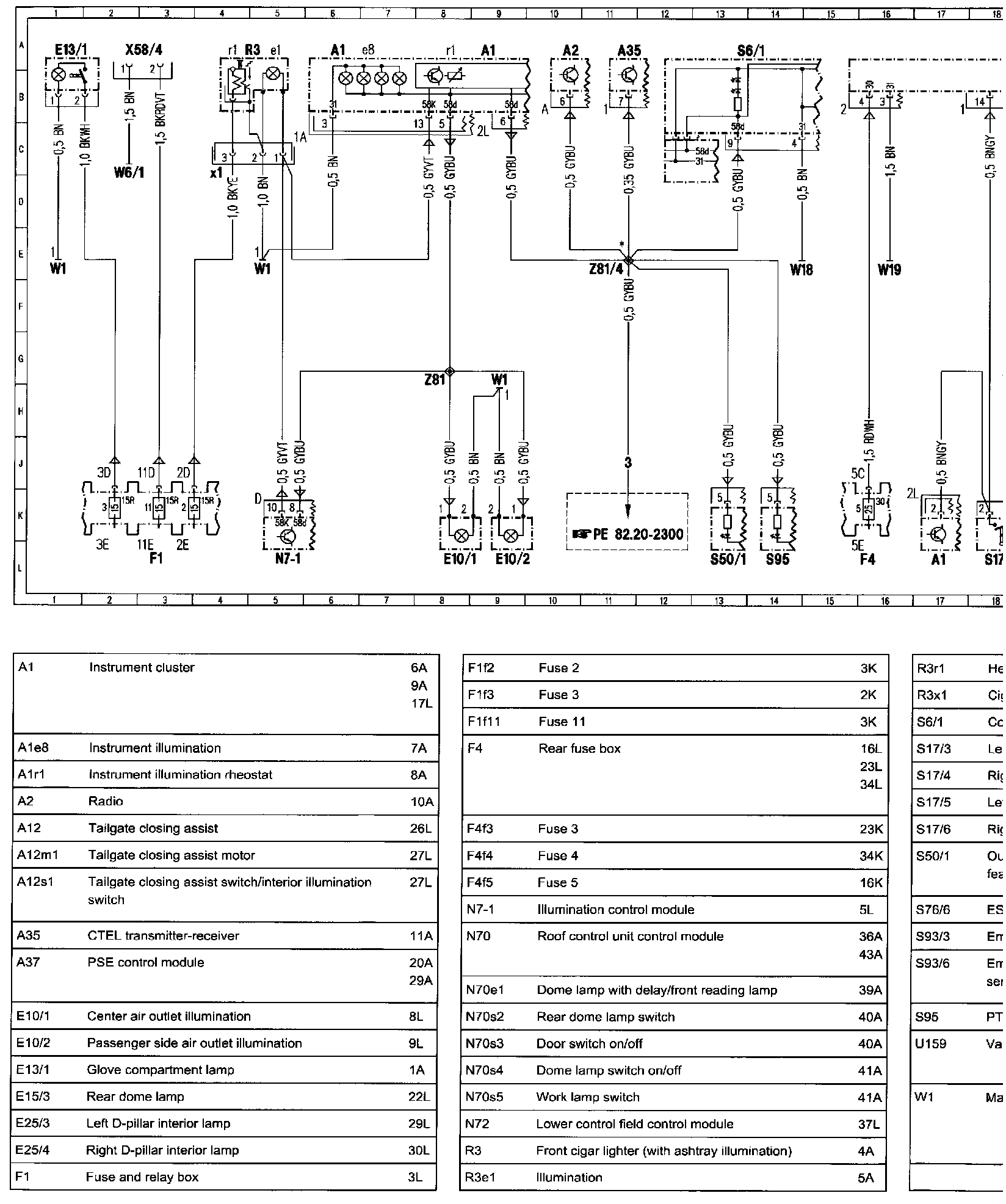

Interior Lighting - PE82.20
>>
Interior Lights - PE82.20-2000EB From 6/1/99
Interior Lights - PE82.20-2000EB From 6/1/99
Without entrance/exit lamps
Without interior light package
��3Z��3ZPE82.20-U-2000-99EB:
