ESP Connector 2, 3 - PE42.45-2000EB From 6/1/99
ESP Connector 2, 3 - PE42.45-2000EB From 6/1/99
Connector 2 and 3.

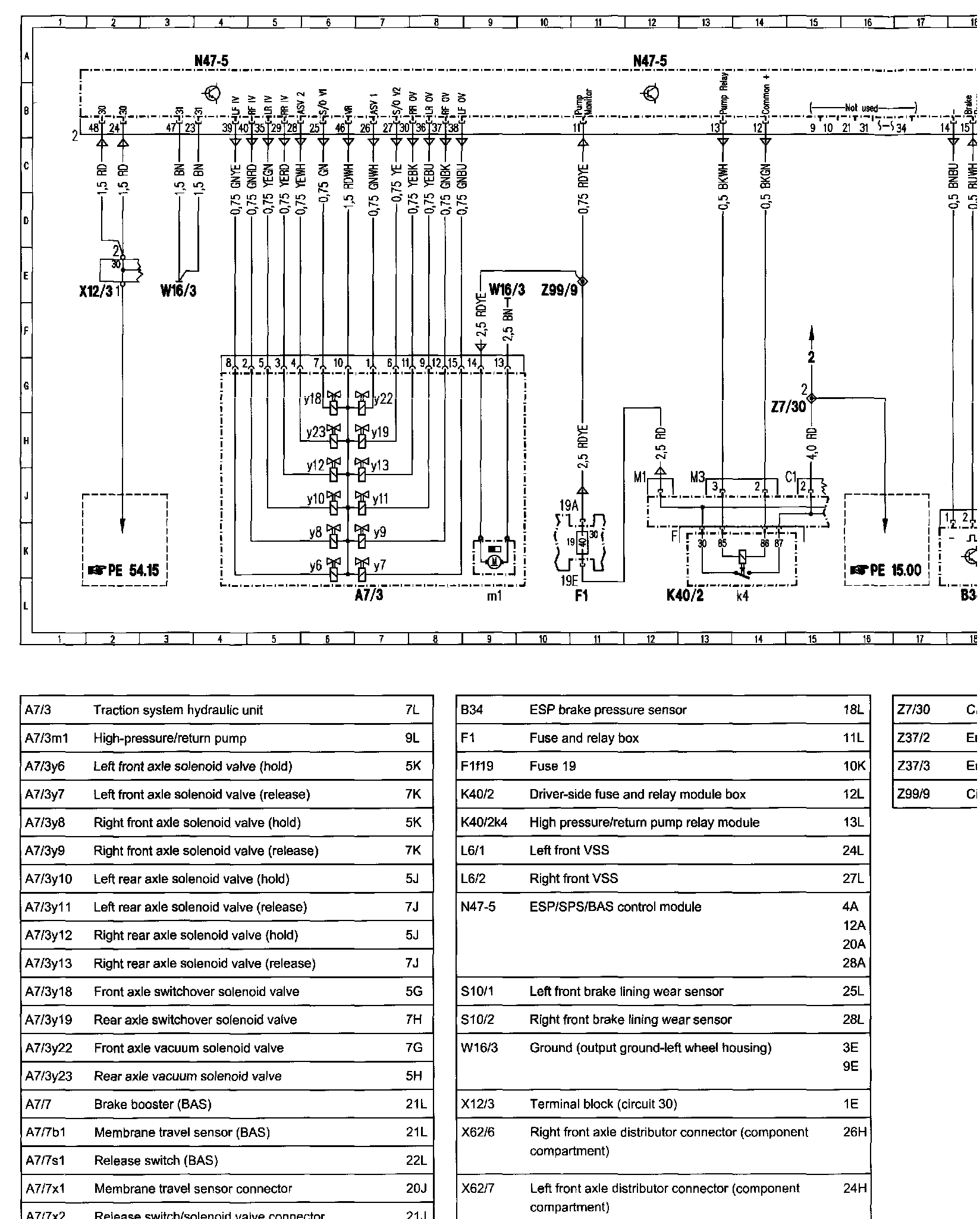

���%���%~��%Wiring Diagram Connector 2 and 3.:

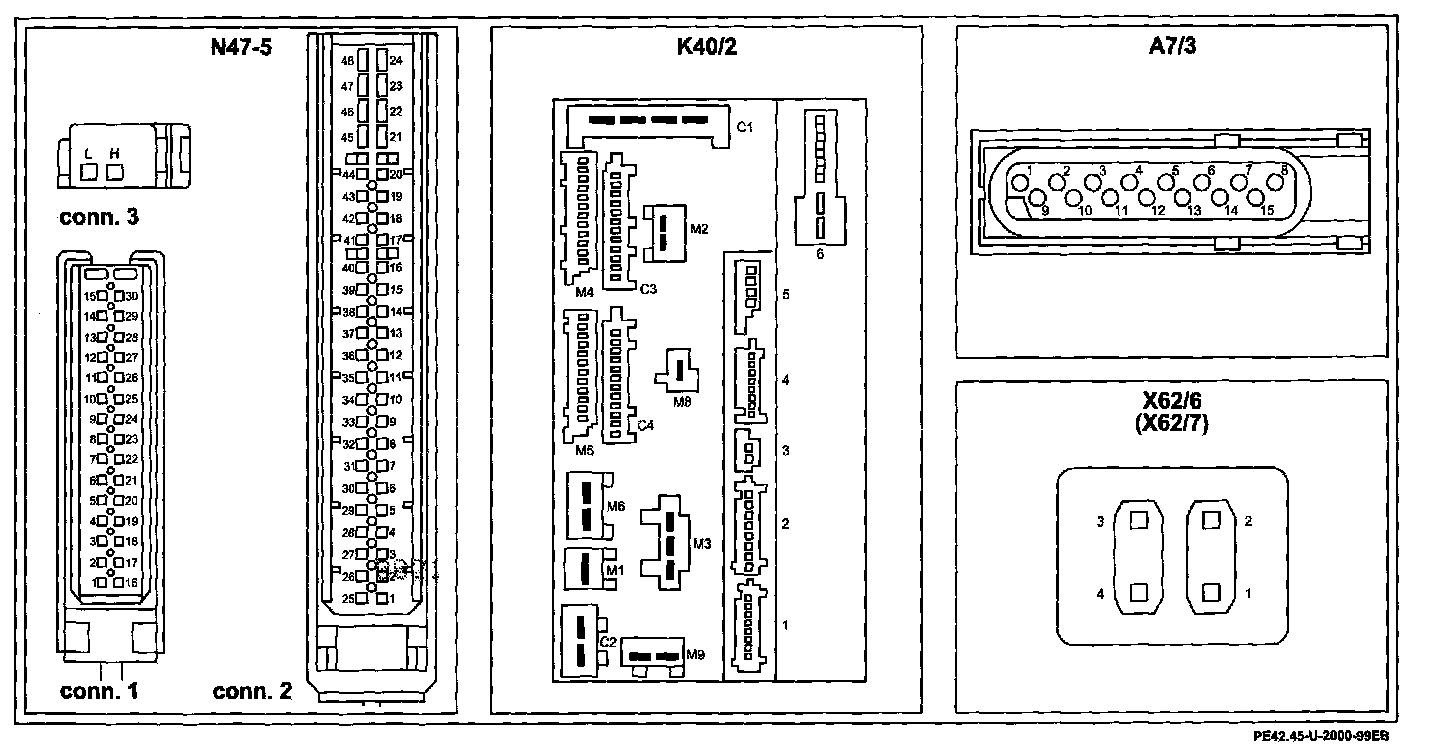

Connector Assignment:
