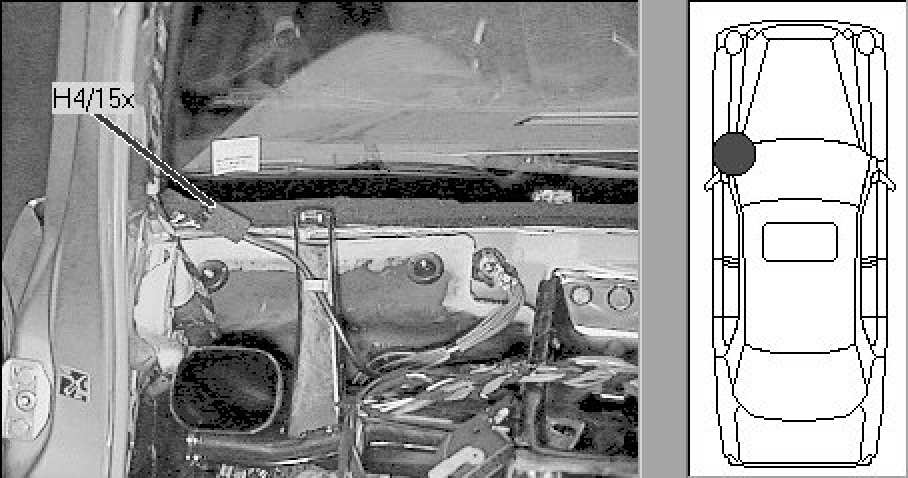

H4/15x - Left Front HFS Speaker (CTEL) Connector








At base of windshield, left side of dashboard.
