Electronic Traction Support (ETS) PE42.35-U-2000D
Electronic Traction Support (ETS) PE42.35-U-2000D
With CODE 212a and 4 WD.
$��%H��%y��%Wiring Diagram:
Component Grid Location

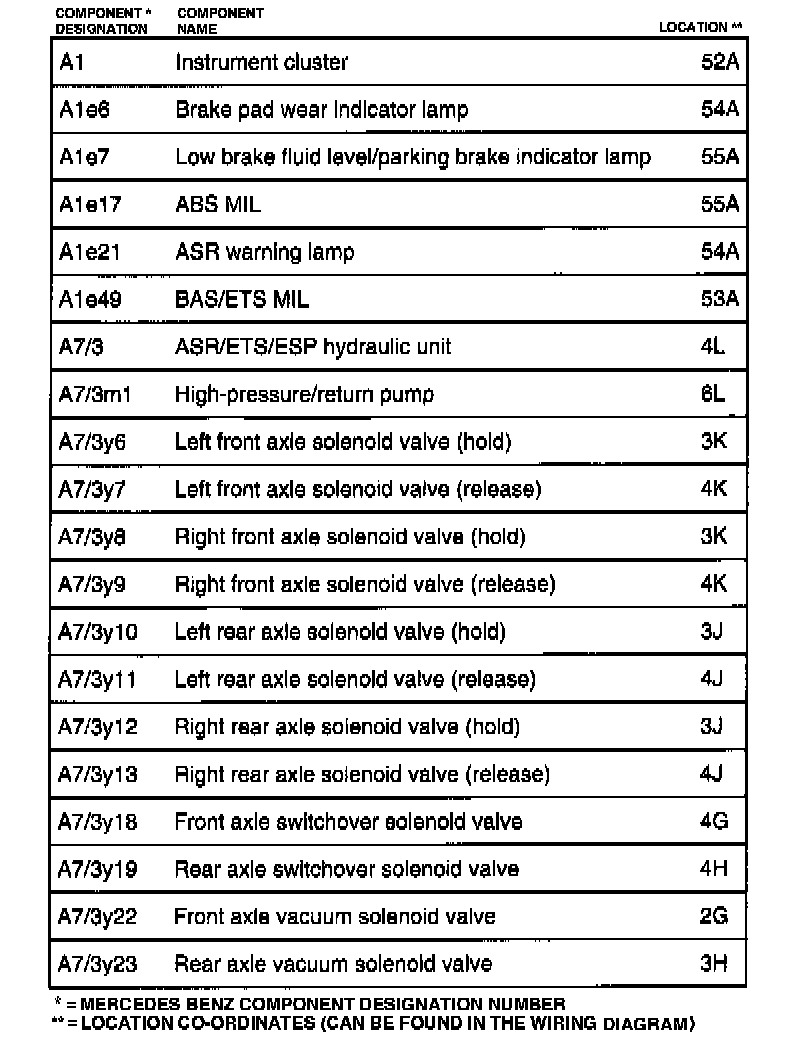

A1 - A7/3y23:

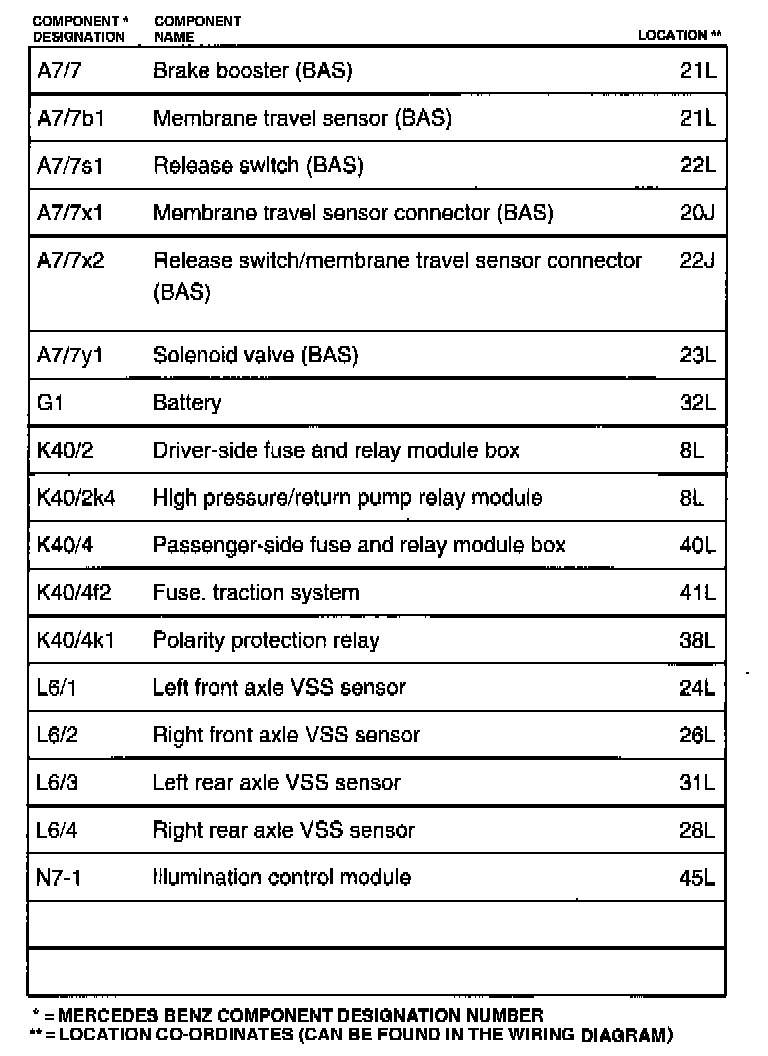

A7/7 - N7-1:
N47-2 - W18:

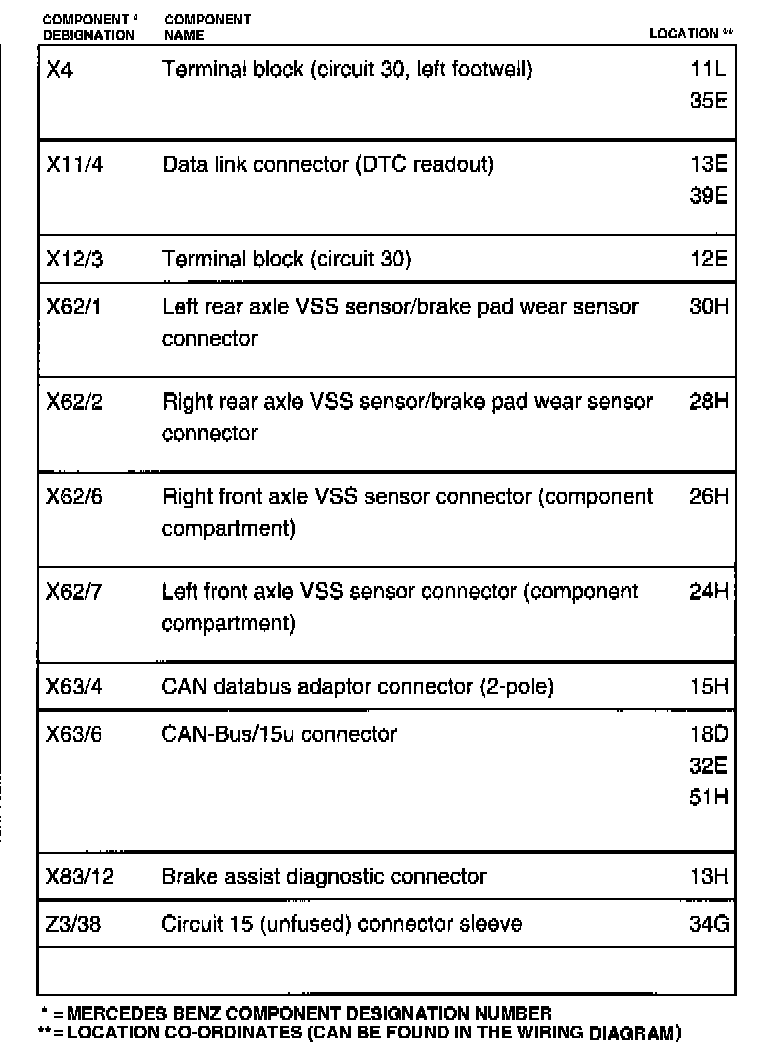

X4 - Z3/38:
