Component Locations - Section 20

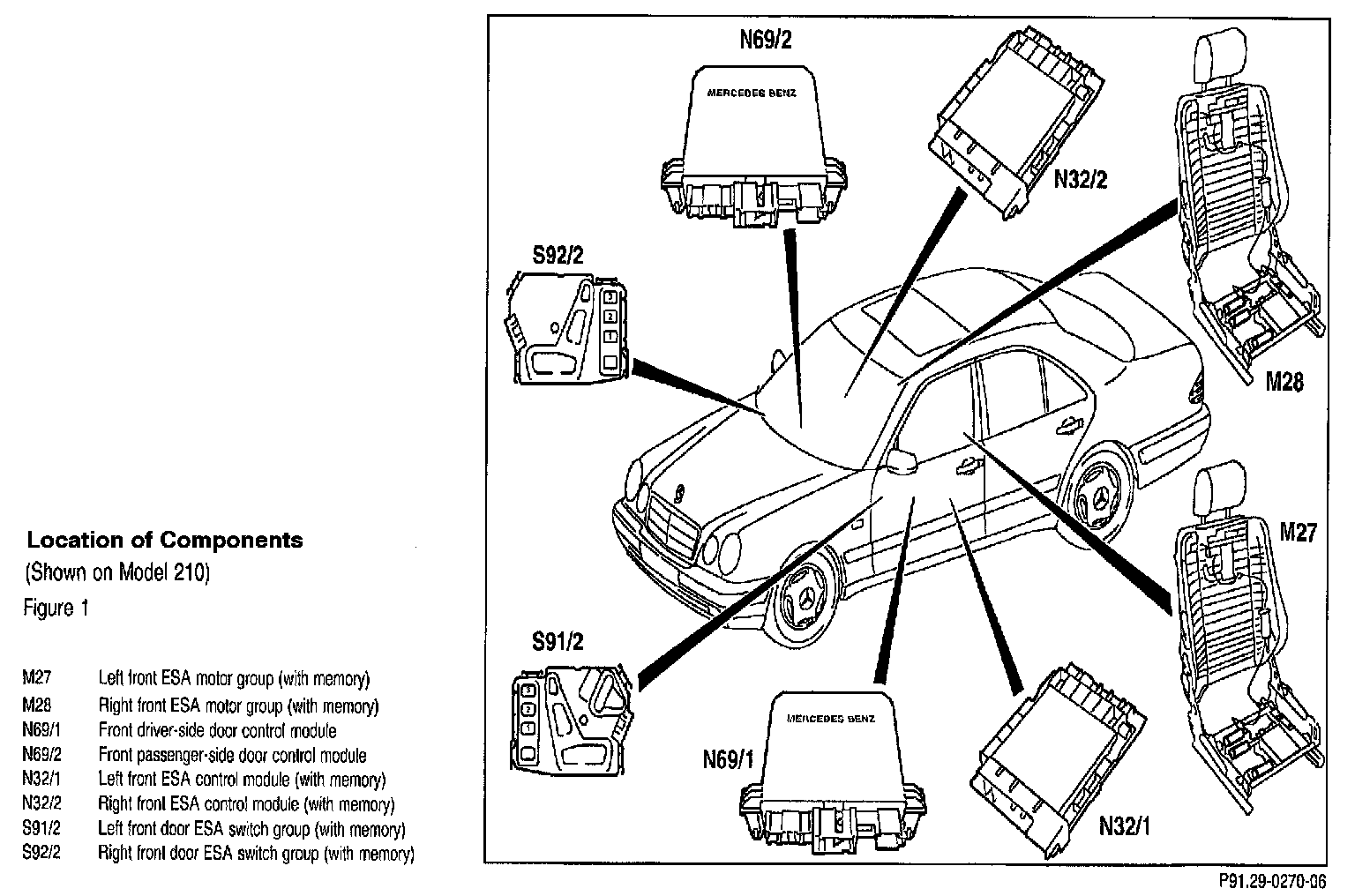

Location Of Components Figure 1:

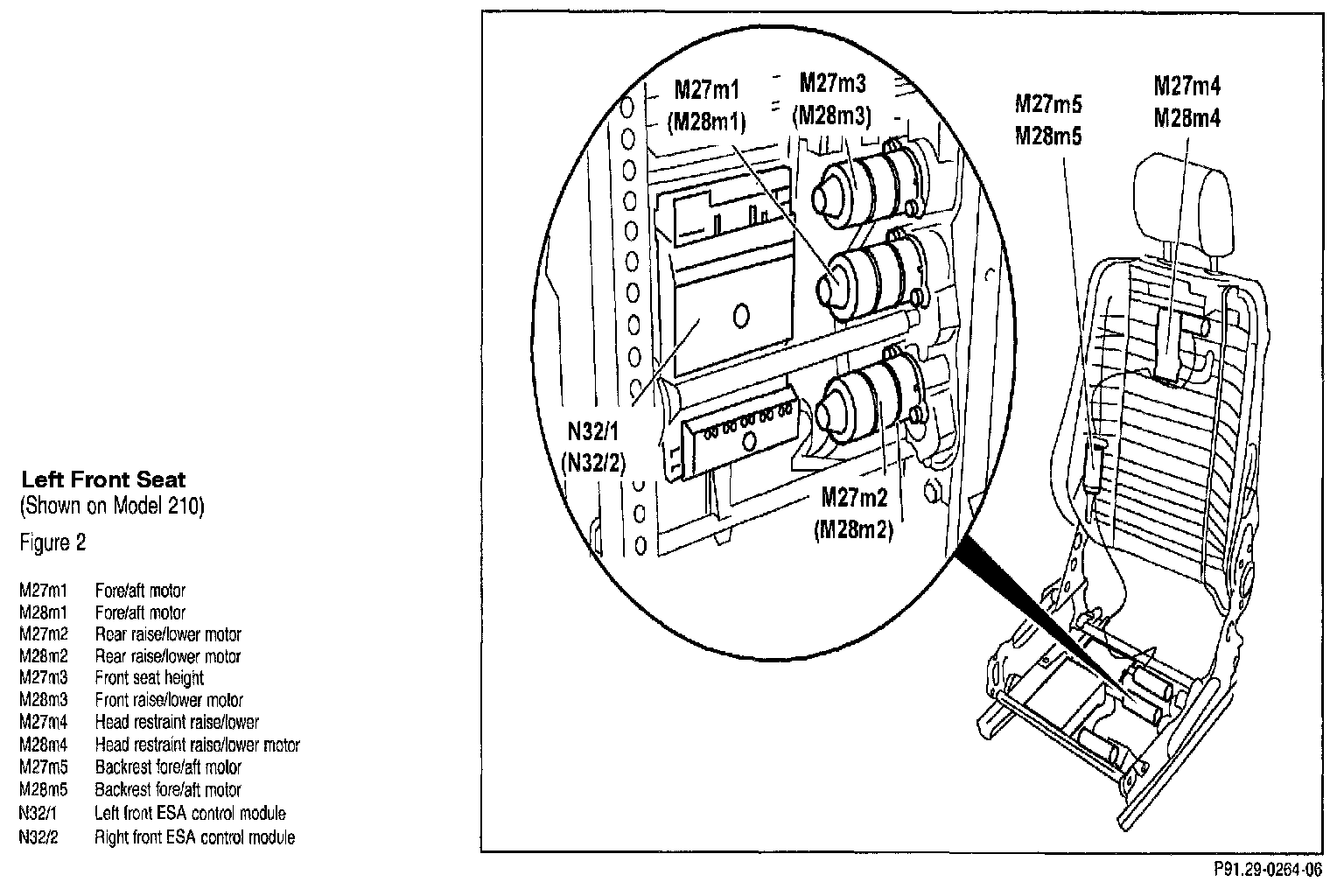

Left Front Seat Figure 2:

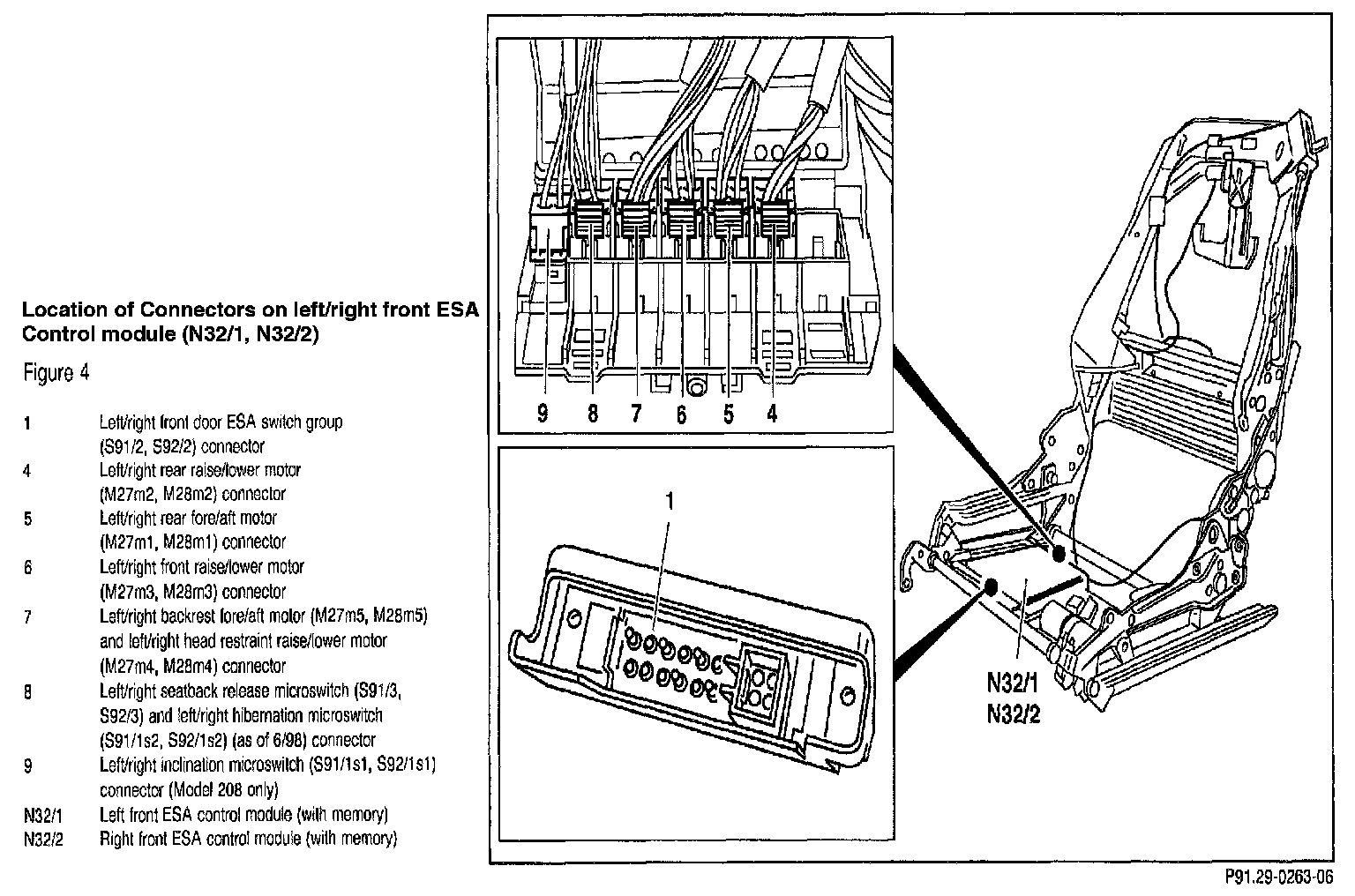

Figure 4:

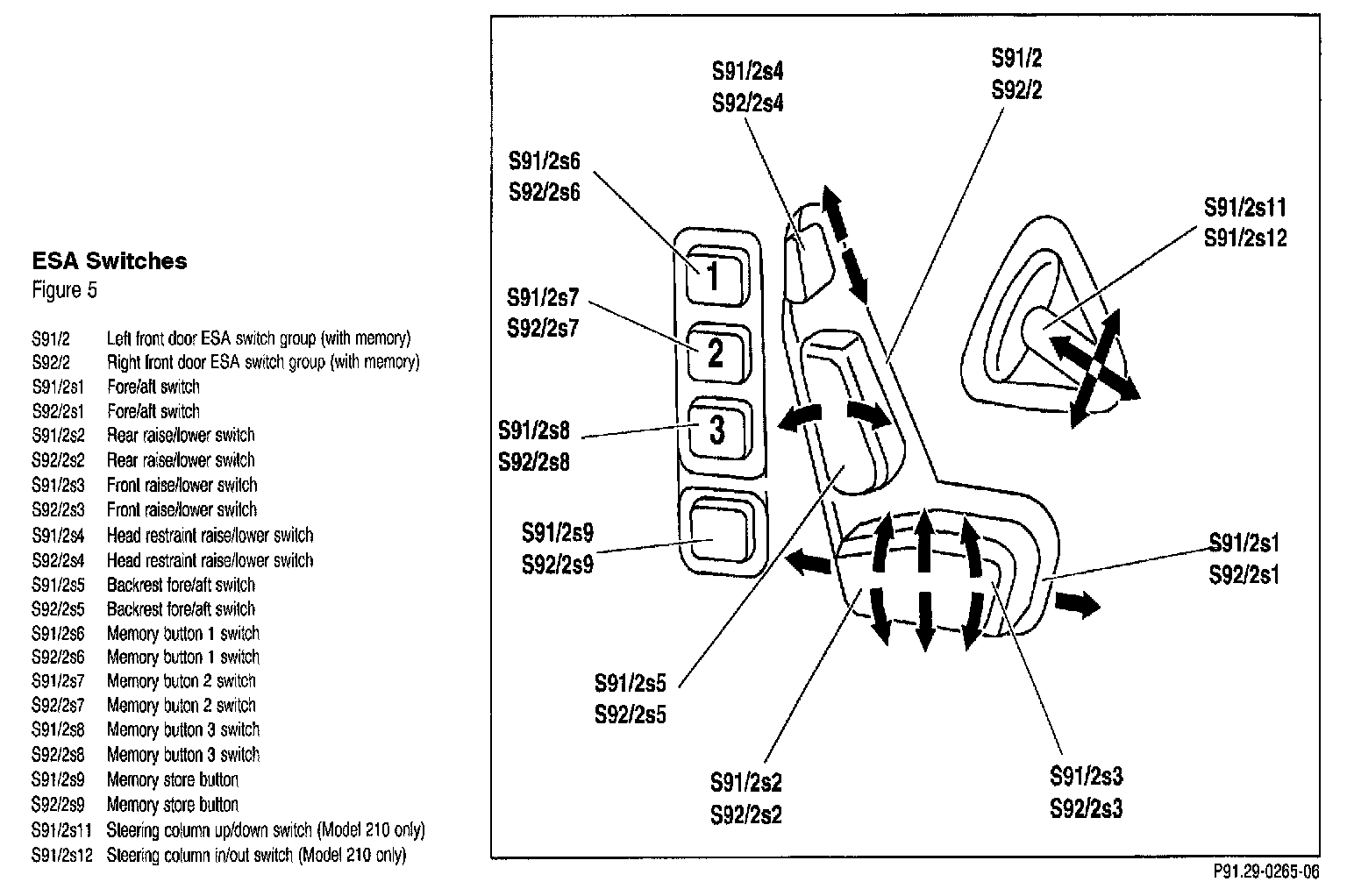

ESA Switches Figure 5:
