AR91.30-P-0007F Replace Heated Cushion on Lateral Enthusiast Seat Wings on Front Seat



AR91.30-P-0007F Replace Heated Cushion On Lateral Enthusiast Seat Wings On Front Seat

Component Identification:




Component Identification:

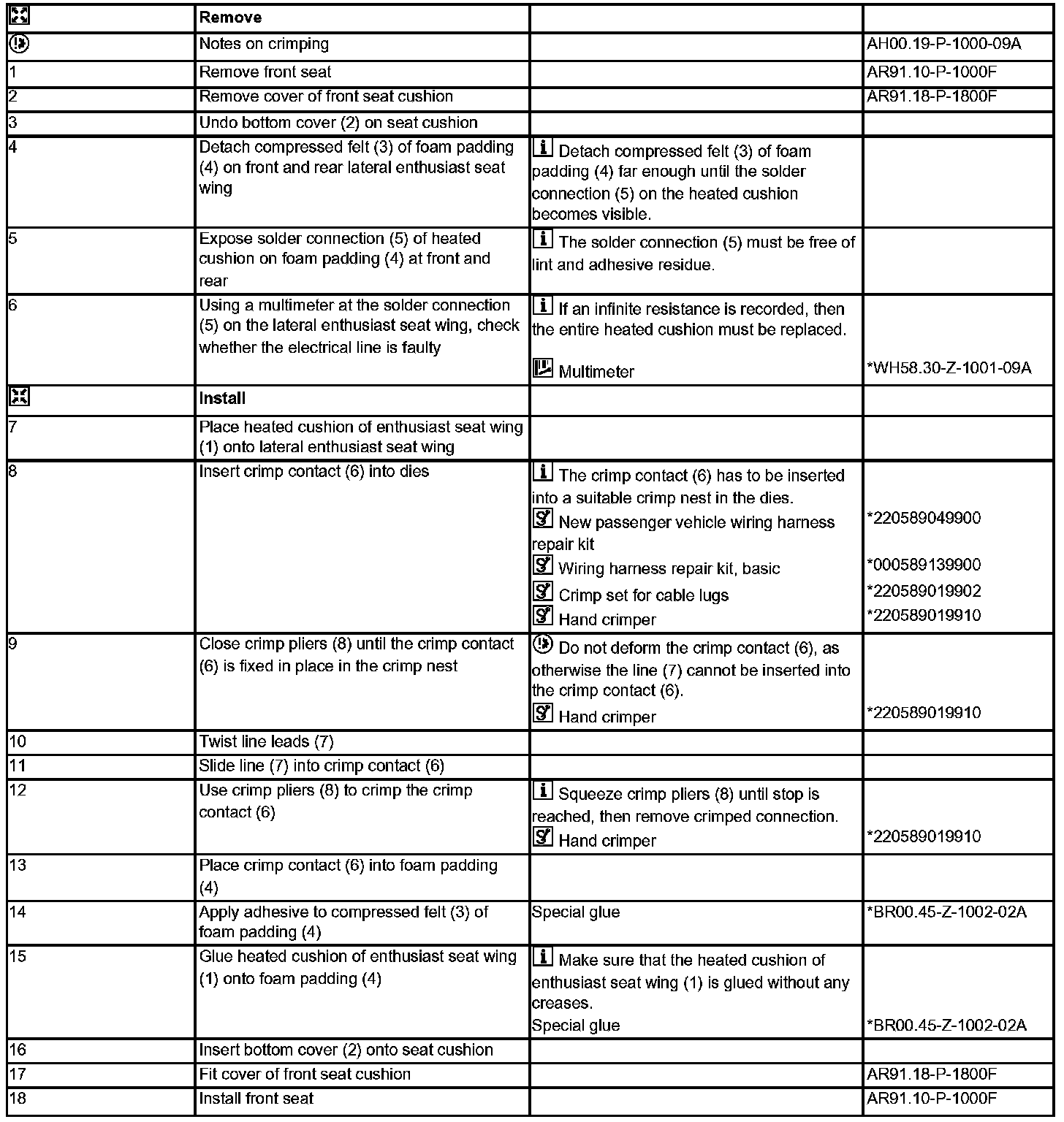

Steps 1 - 18:

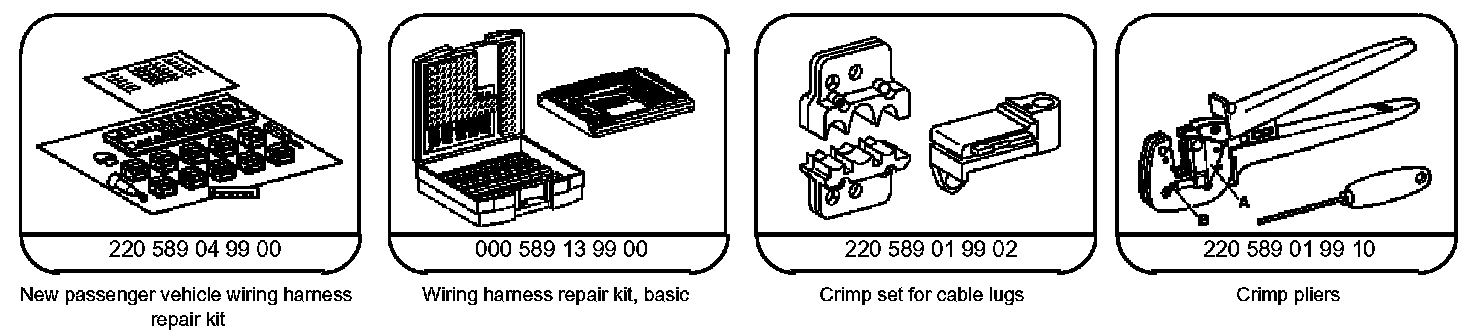

Special Tools:

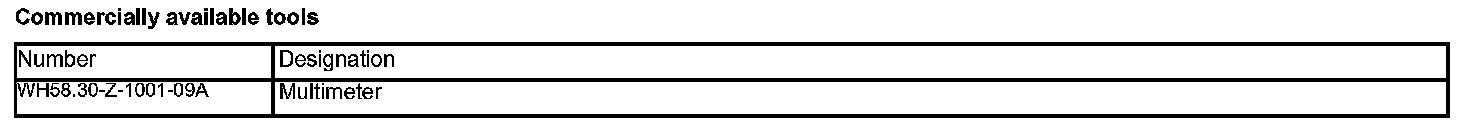

Commercially Available Tools:

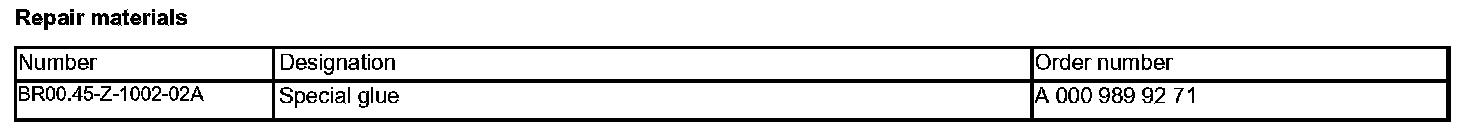

Repair Materials:
