AR91.30-P-0004-02A Installing Cover And Seat Cushion Heater Element In Backrest

AR91.30-P-0004-02A Installing Cover And Seat Cushion Heater Element In Backrest
(Left Hand Seating)






1. Install new cover on rubberized fiber matting, align and hook in.

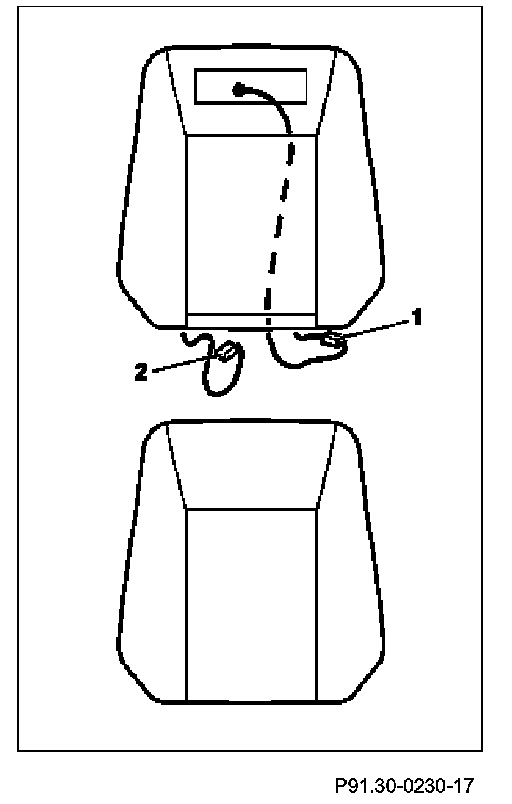

2. Connect connectors (1).

Not present on Classic version.

3. Position connectors (1) between rubberized fiber matting and frame and fasten to spring with cable strap.

Avoid pressure points.

4. Route wire with connector (2) along seat belt buckle wiring harness.
