AR91.30-P-0004-01A Installing Cover And Seat Cushion Heater Element In Seat Cushion

AR91.30-P-0004-01A Installing Cover And Seat Cushion Heater Element In Seat Cushion
(Left Hand Seating)

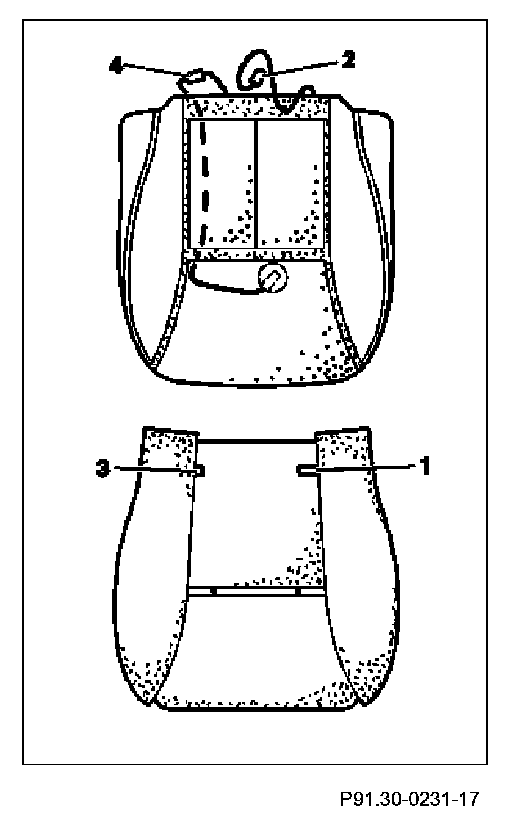

1. Increase size of cutout (1) in rubberized fiber matting (to prevent pressure points on cover).

Not on Classic version.
Only when retrofitting.

2. Connect connector (4) and position in intended cutout (1) in rubberized fiber matting.

Connector (4) not present on Classic version.

3. Push connector (2) through cutout (3) in rubberized fiber matting.
4. Install new cover on rubberized fiber matting, align and hook in.
