AN91.30-P-0001A Retrofit Seat Heater For Front Seats

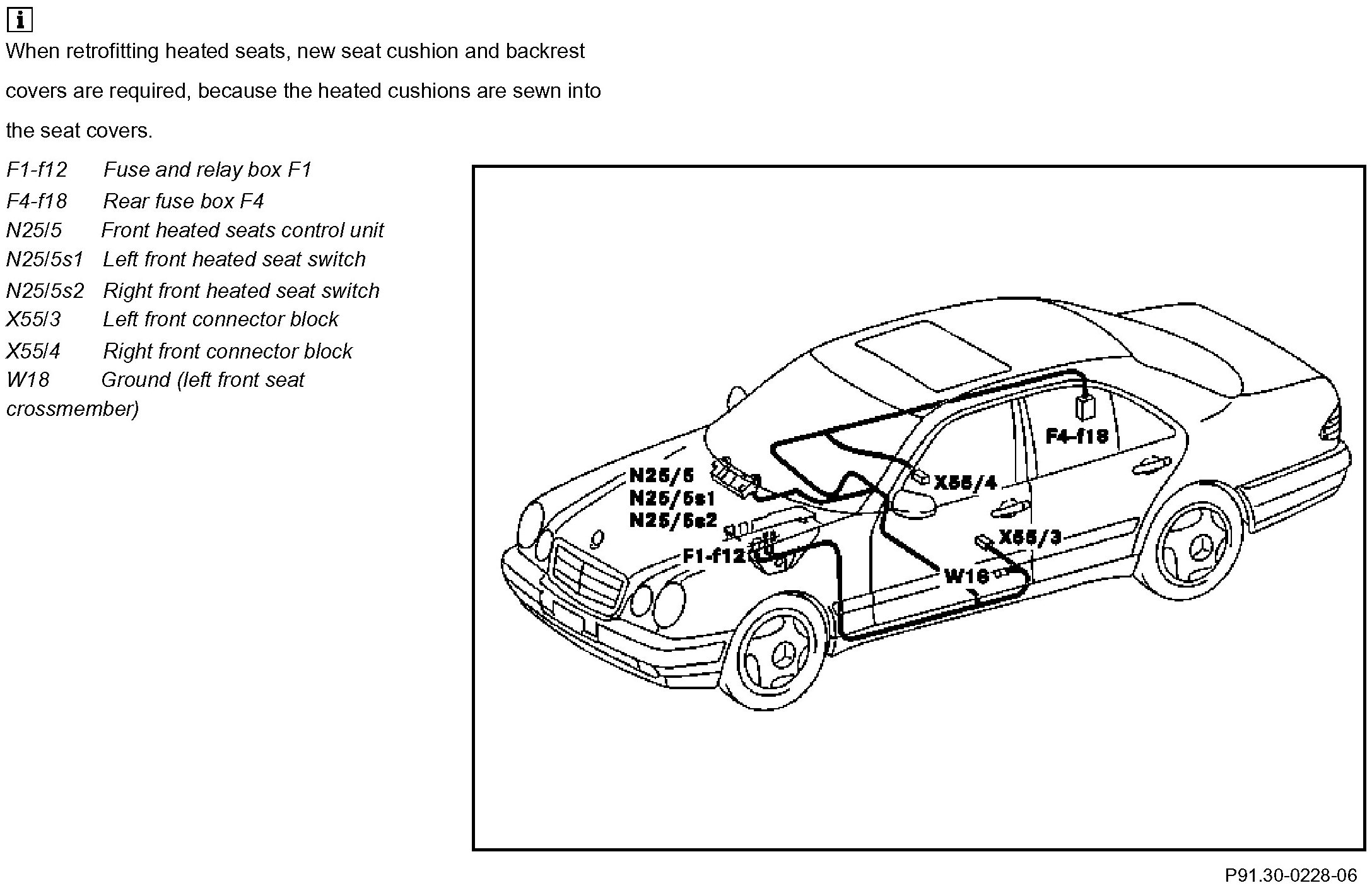

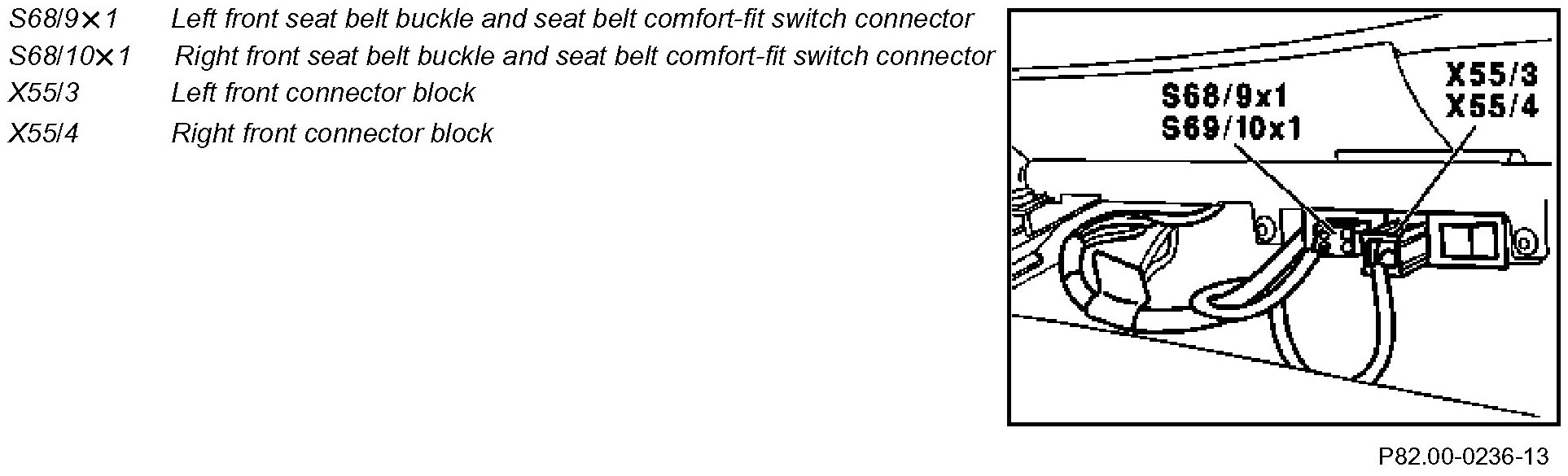

Component Identification:
Component Identification:

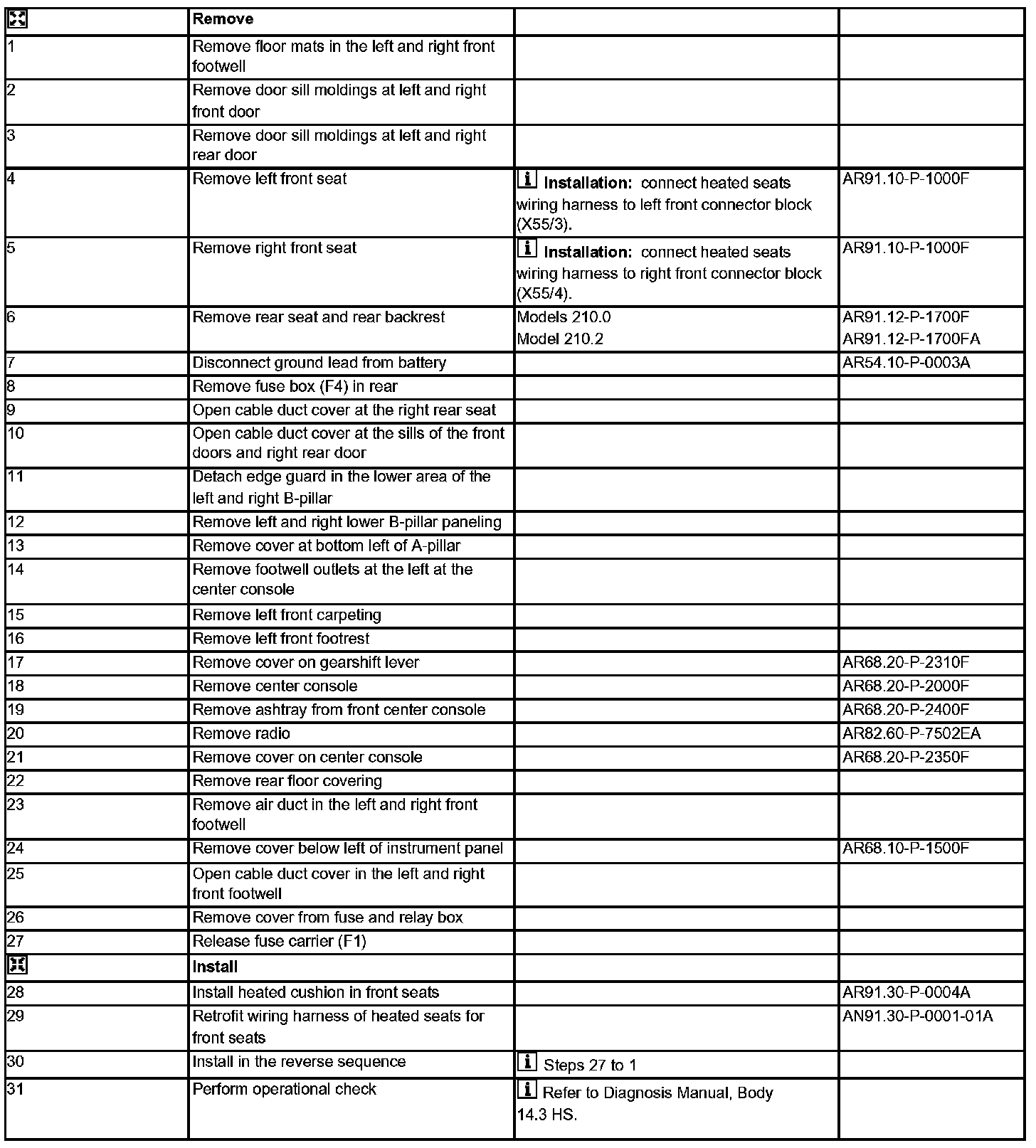

Steps 1 - 31:
Parts Ordering Notes:
