AR91.12-P-1732A Remove/Install Release Lever For Rear Backrest
AR91.12-P-1732A Remove/Install Release Lever For Rear Backrest
AR91.12-P-1732A Removing And Installing Release Lever For Rear Backrest

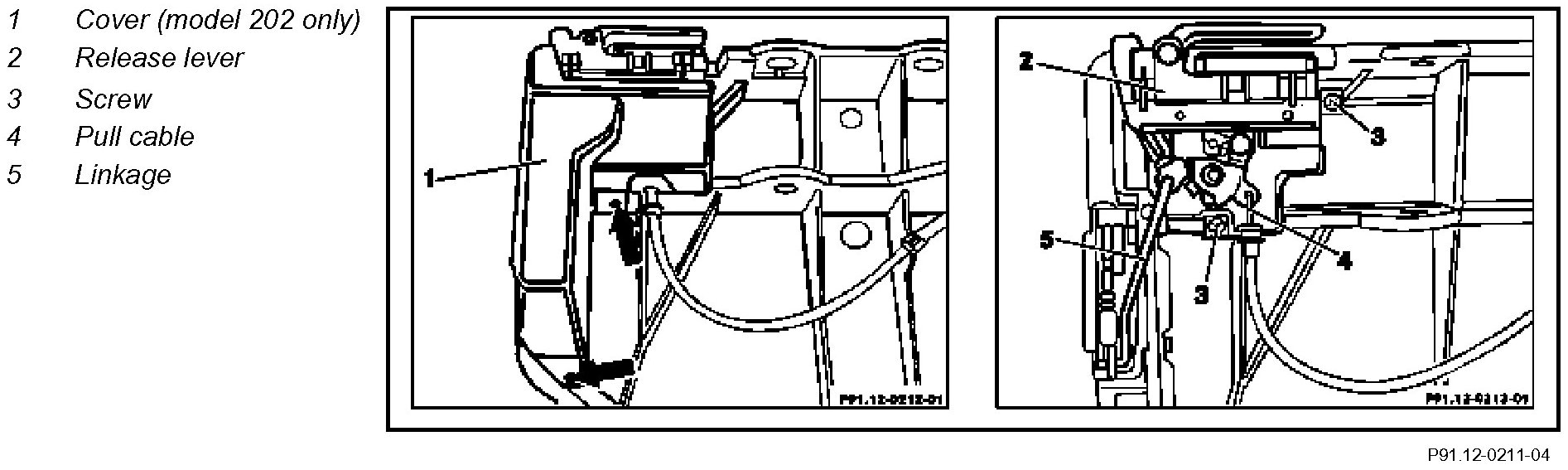

Component Identification:

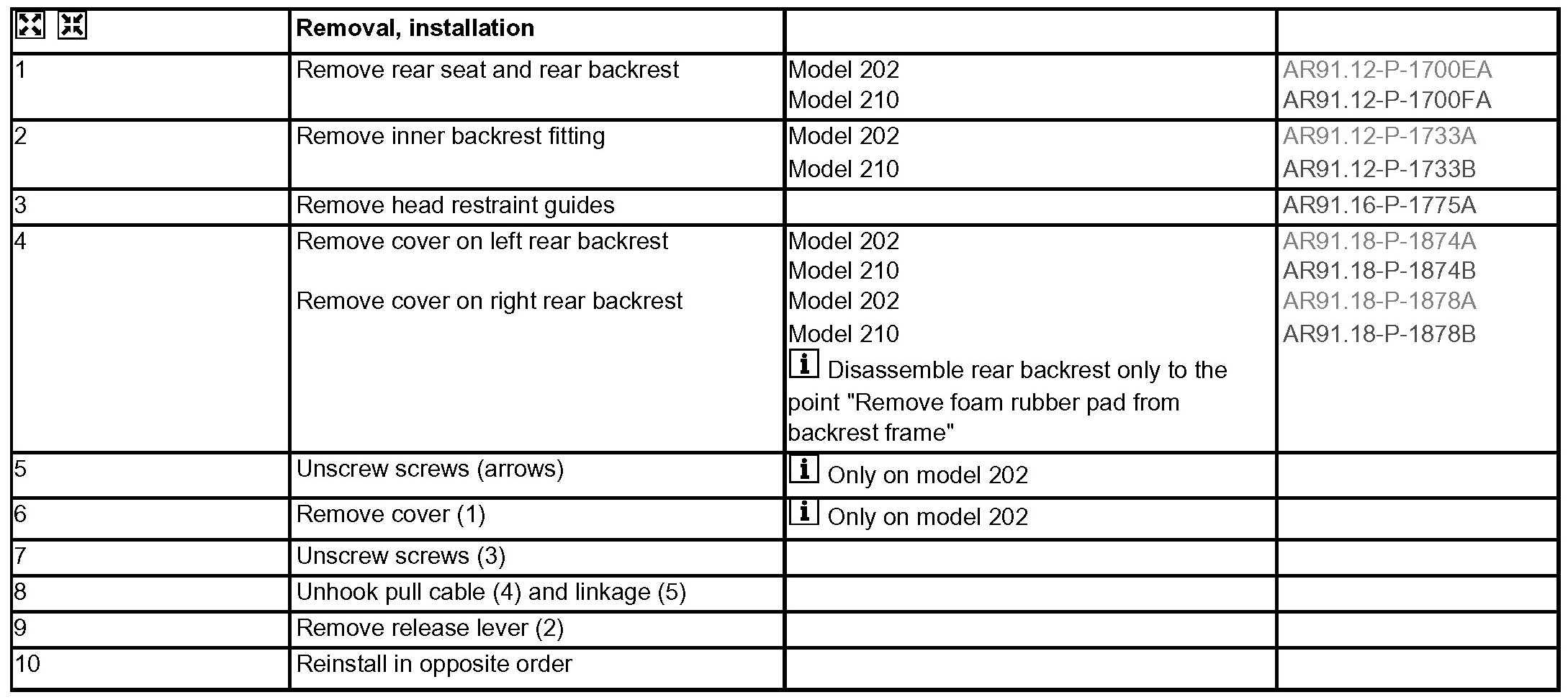

Steps 1 - 10:
