Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Latch Cable >> Service and Repair

Seat Latch Cable: Service and Repair



AR91.12-P-1734A Removing And Installing Pull Cable For Rear Backrest Release

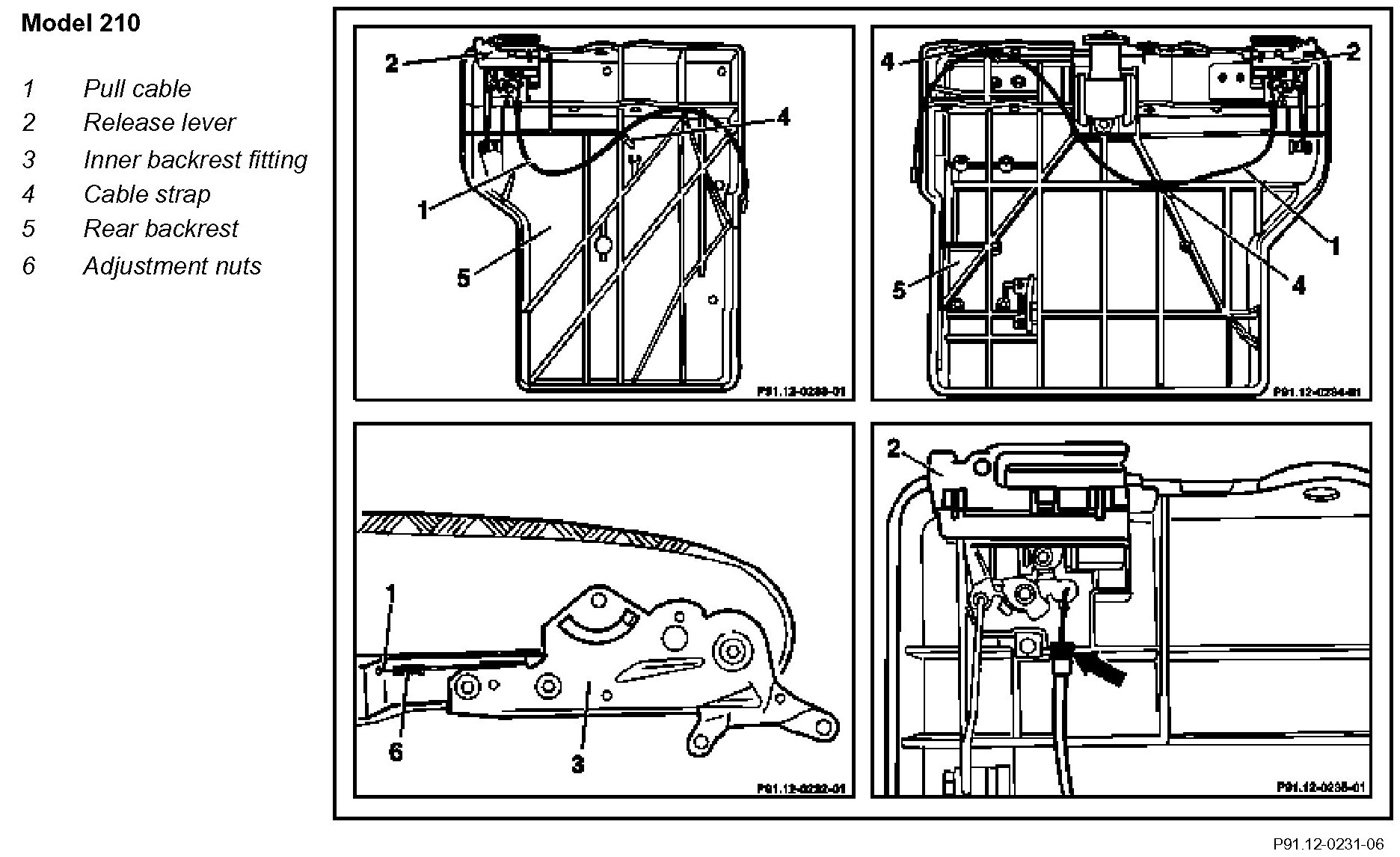

Component Identification:

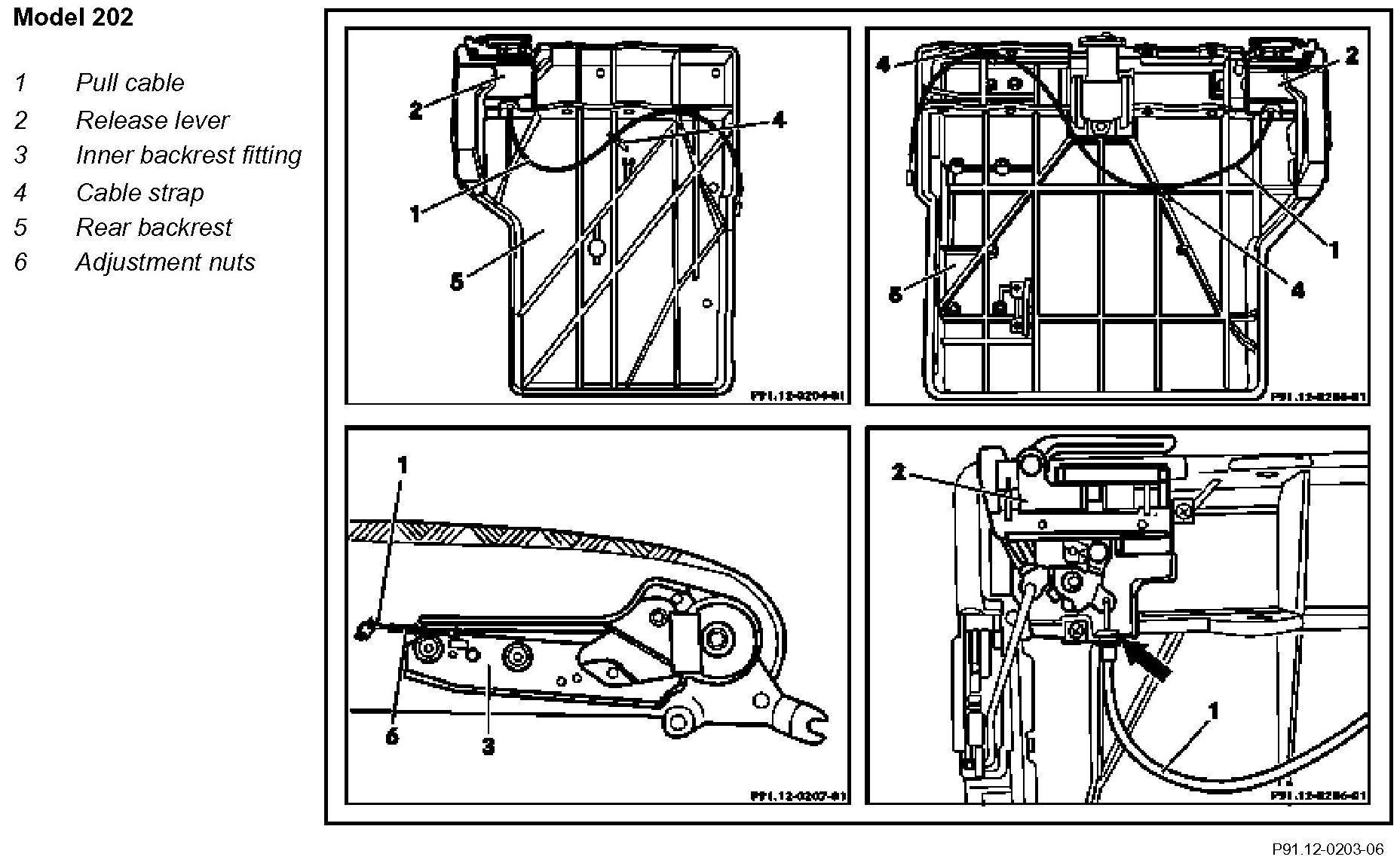

Component Identification:

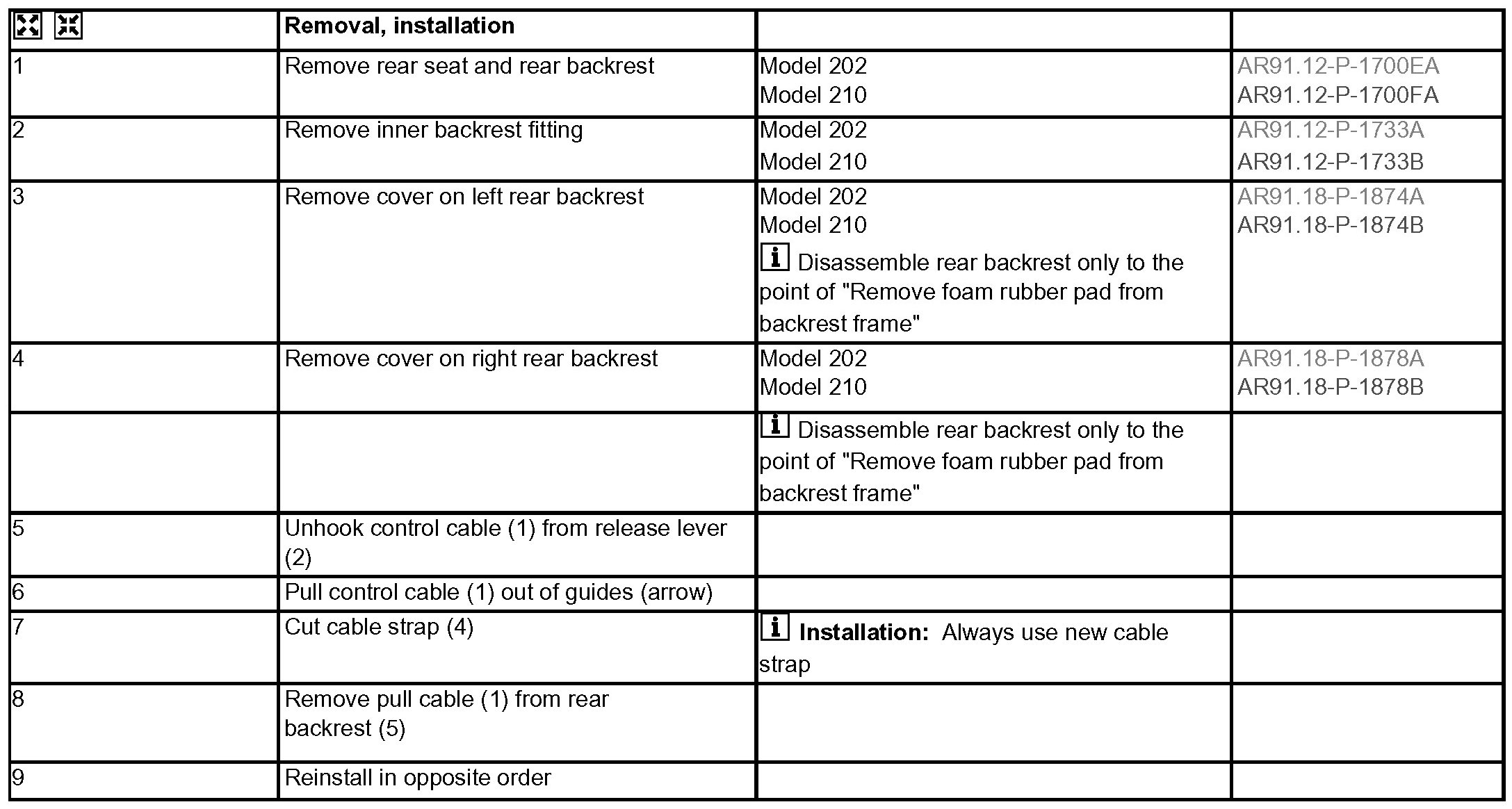

Steps 1 - 9:
