AR91.18-P-1830F Remove/Install Cover on Head Restraints
AR91.18-P-1830F Remove/Install Cover on Head Restraints
AR91.18-P-1830F Removing And Installing Cover On Head Restraints

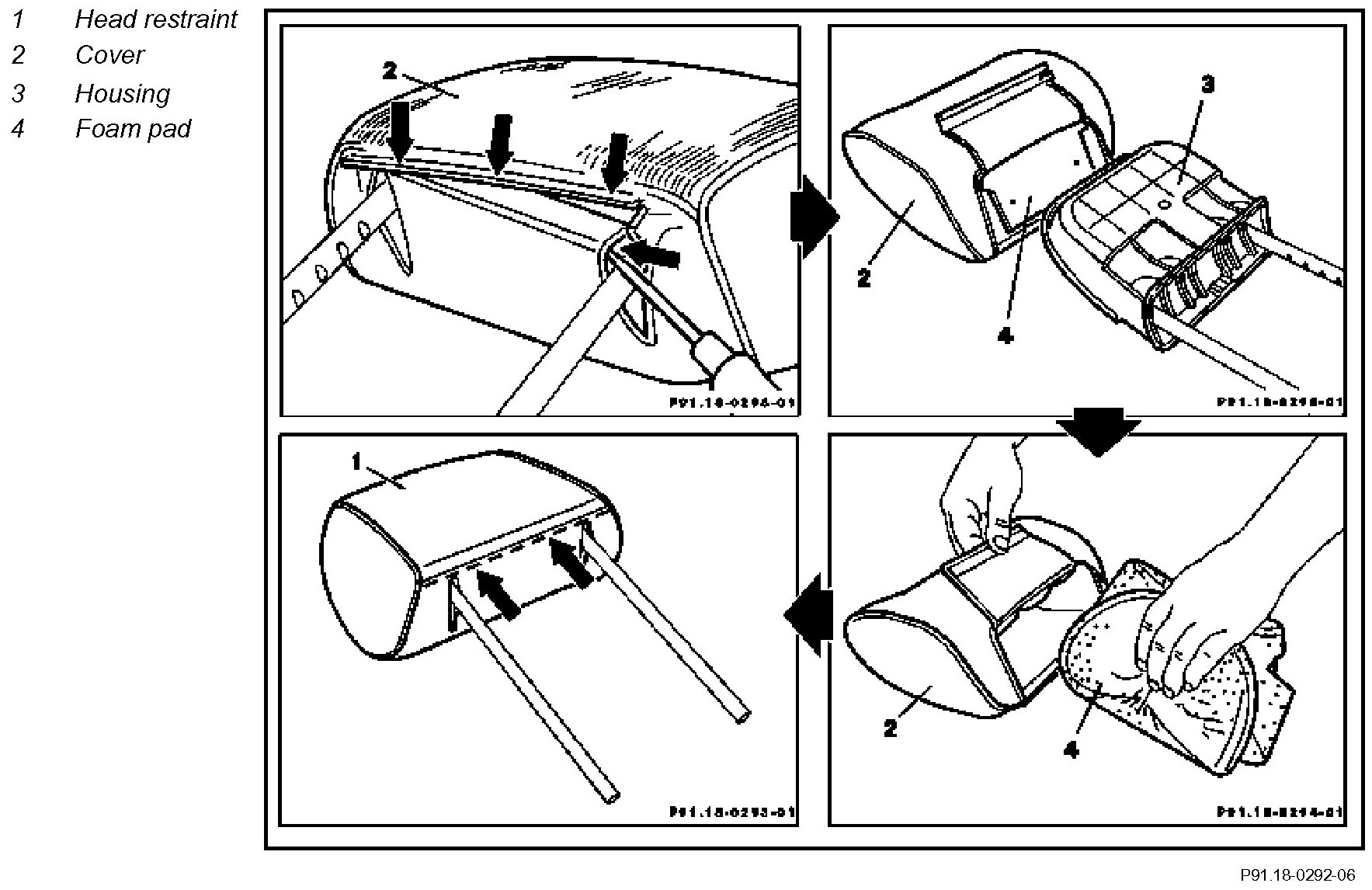

Component Identification:

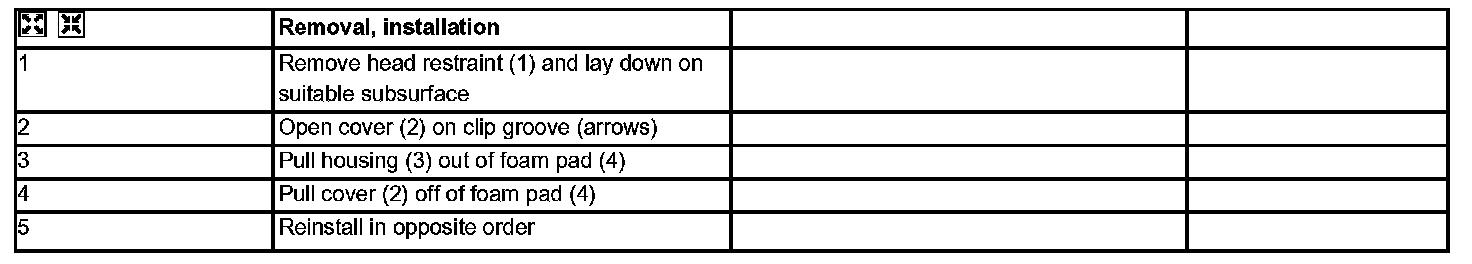

Steps 1 - 5:
