AR91.25-P-1770A Remove/Install Multi-Contour Seat Air Cushions



AR91.25-P-1770A Removing And Installing Multi-contour Seat Air Cushions
- with CODE (404a) left multi-contour seat
- with CODE (405a) right multi-contour seat

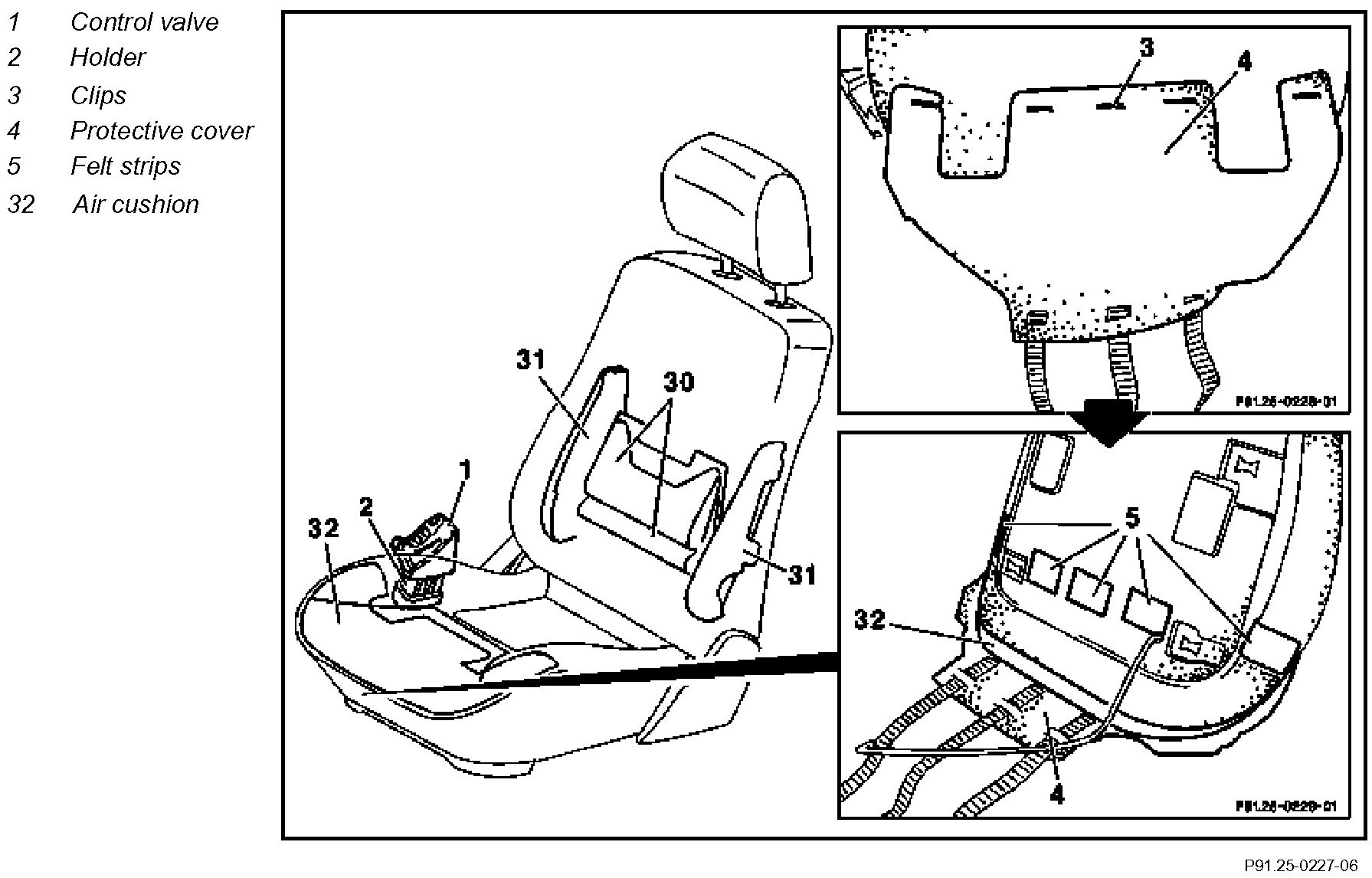

Component Identification:

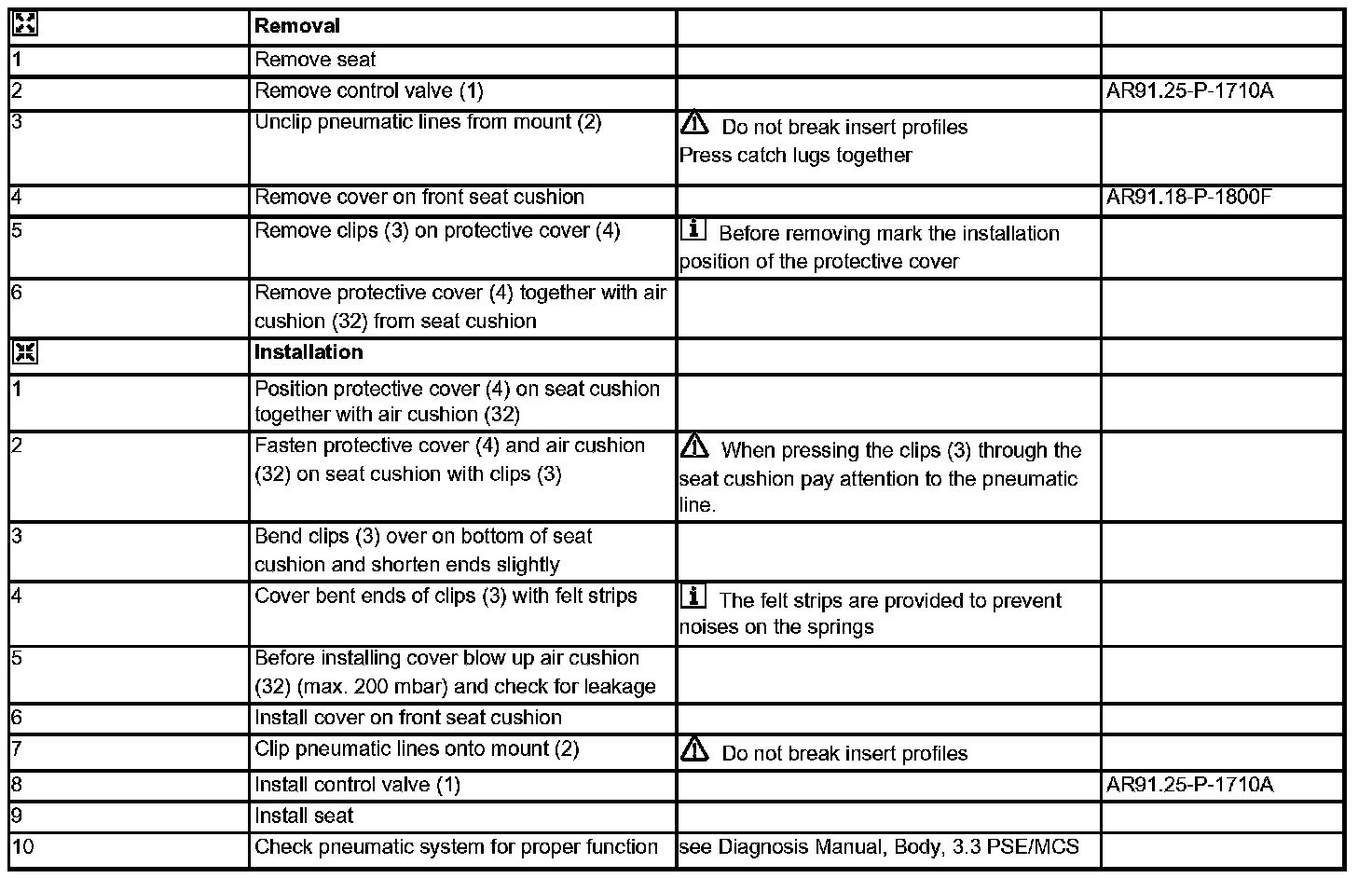

Steps 1 - 10:

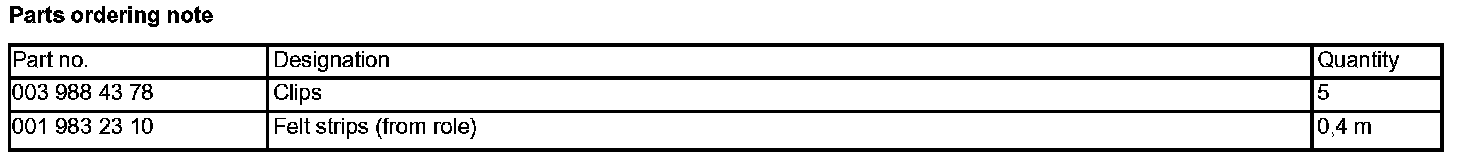

Parts Ordering Notes:
