AR91.25-P-1740A Remove/Install Air Cushions In Multi-Contour Backrest



AR91.25-P-1740A Removing And Installing Air Cushions In Multi-contour Backrest
- with CODE (404a) left multi-contour seat
- with CODE (405a) right multi-contour seat

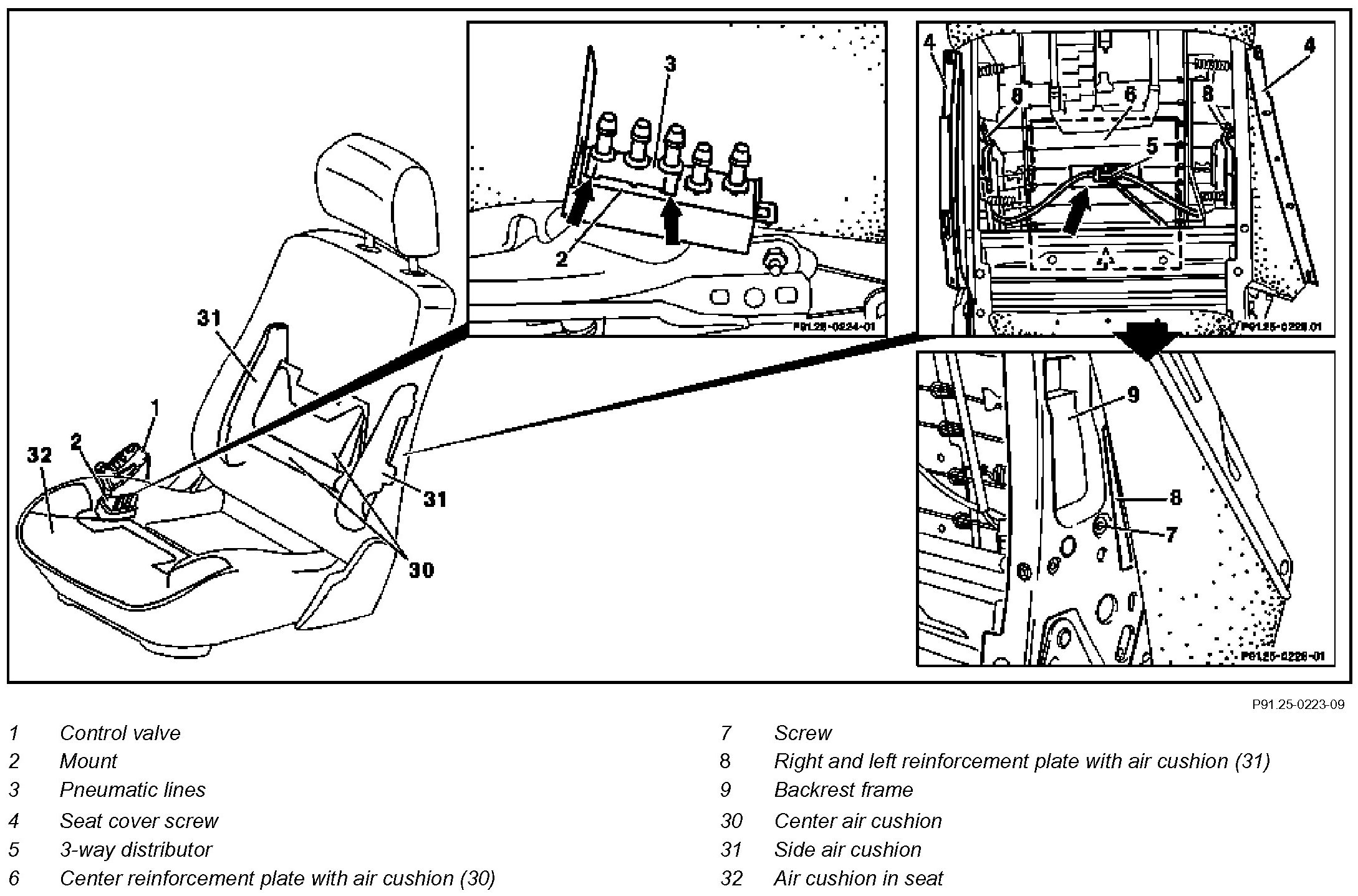

Component Identification:

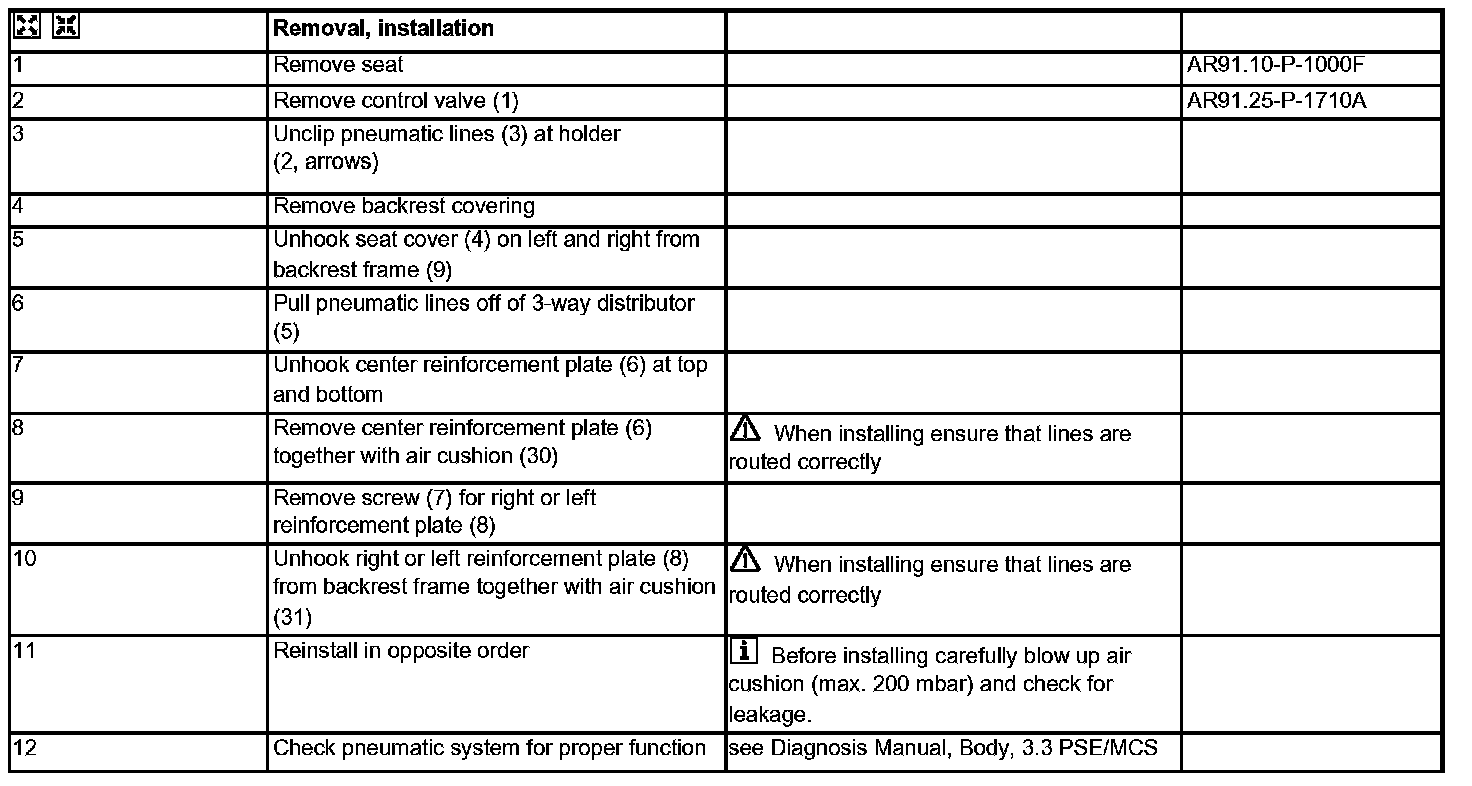

Steps 1 - 12:
