FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1999
>>
E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Back
>>
Adjustments
Seat Back: Adjustments

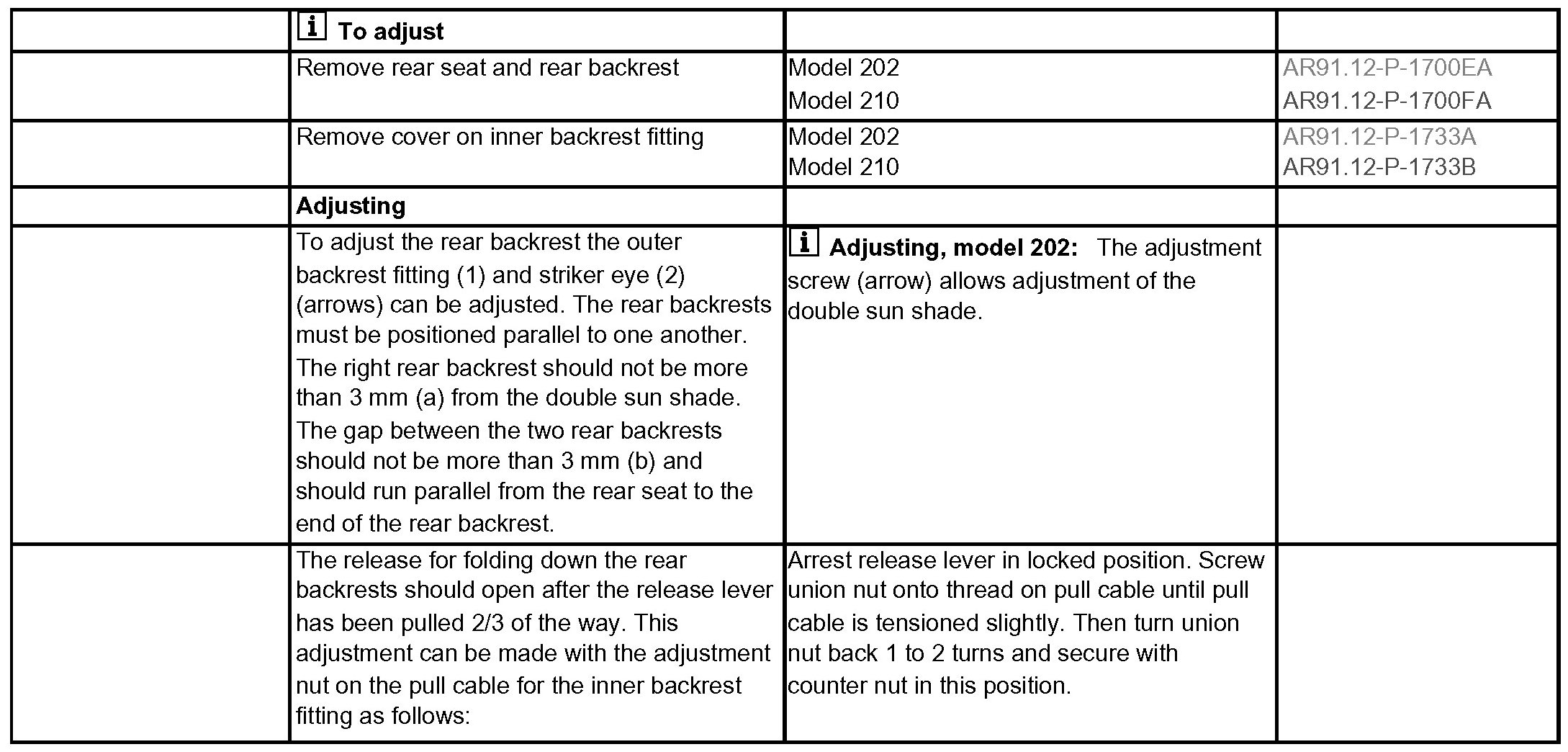

AR91.12-P-1725A Adjusting Rear Backrest

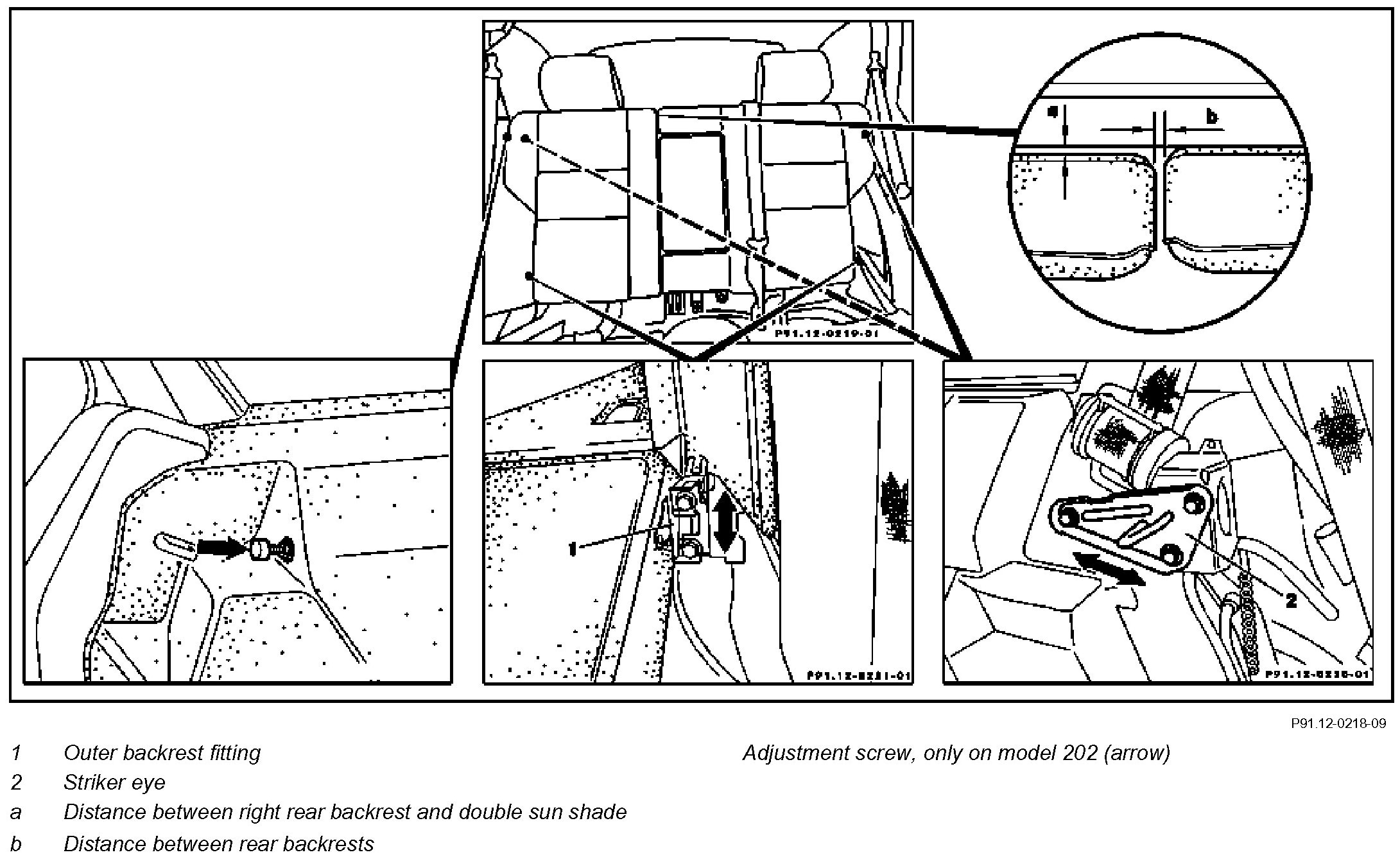

Component Identification:
Component Identification:
