Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Service and Repair >> AR91.29-P-1434FA Remove/Install Front Seat Adjustment Motor

AR91.29-P-1434FA Remove/Install Front Seat Adjustment Motor



AR91.29-P-1434FA Removing And Installing Front Seat Adjustment Motor

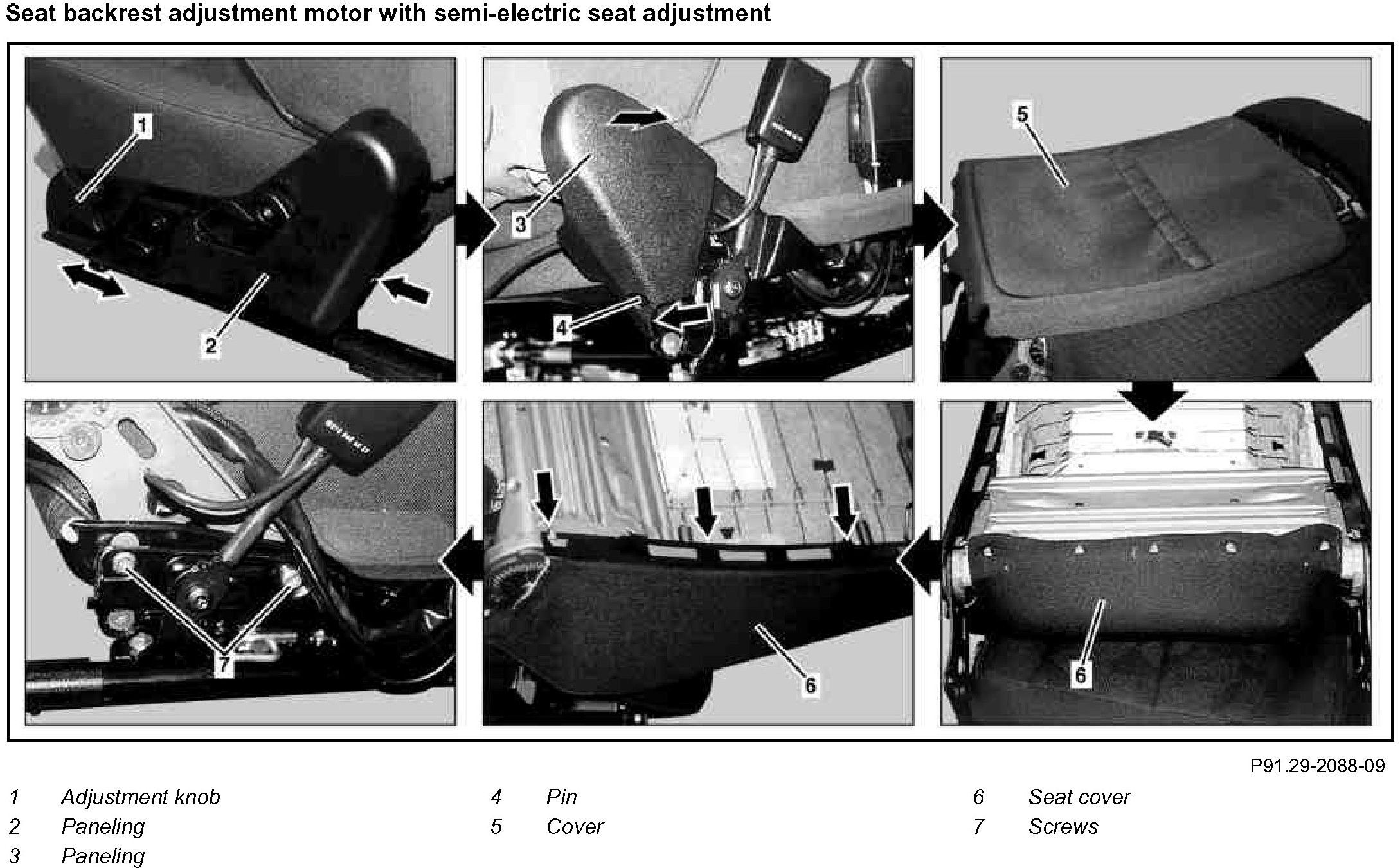

- Seat backrest adjustment motor with semi-electric seat adjustment

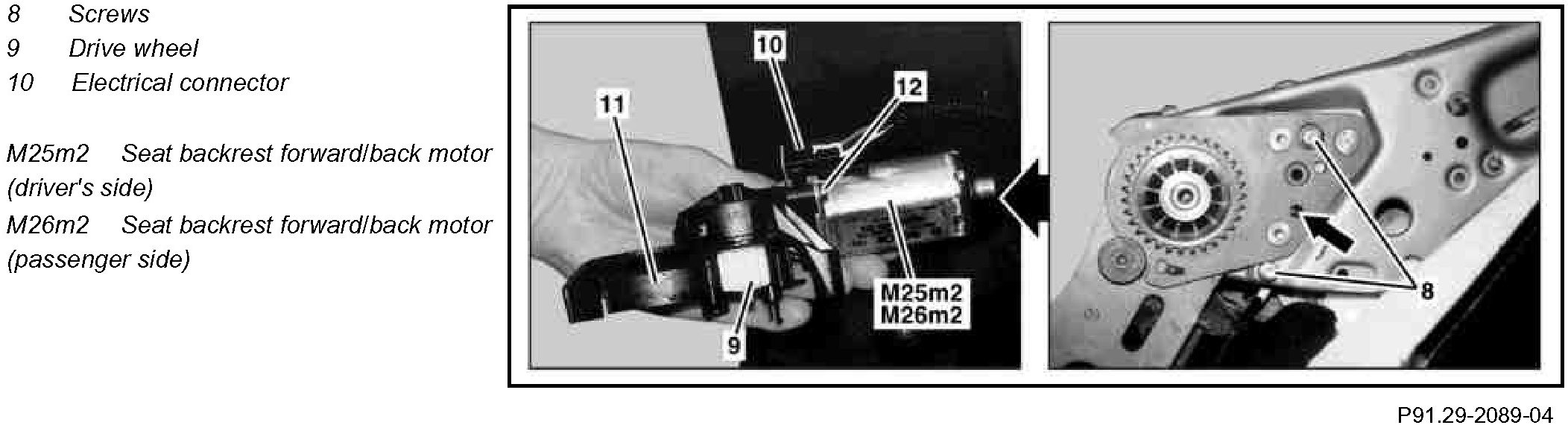

Component Identification:




Component Identification:

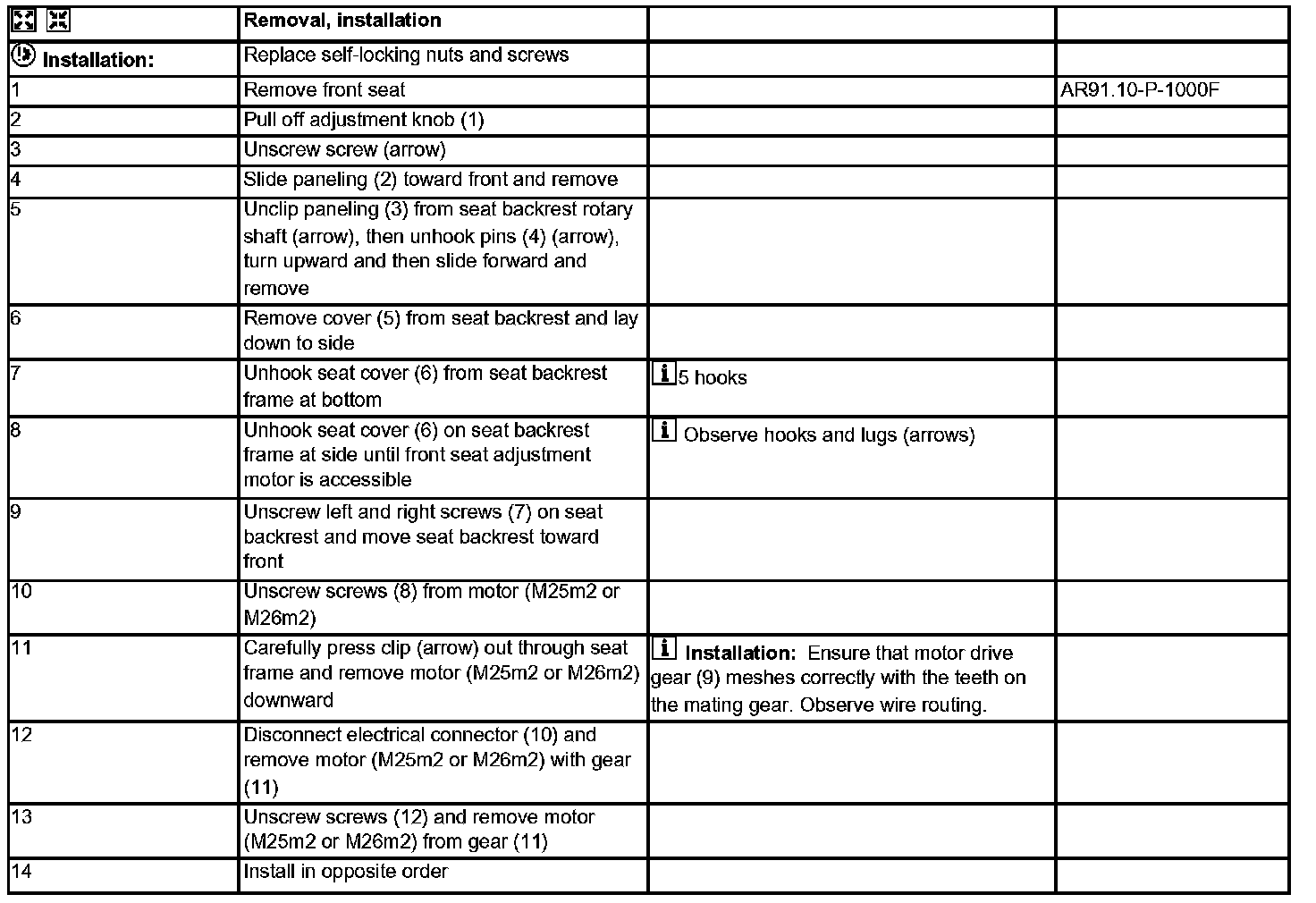

Steps 1 - 14:
