AR91.29-P-1430F Remove/Install Motor Group For Front Power Seats (Backrests)



AR91.29-P-1430F Removing And Installing Motor Group For Front Power Seats (Backrests)
- with CODE (241) memory circuit for left front power seat
- with CODE (242a) memory circuit for right front power seat
- with CODE (275a) memory package (driver's seat, steering column, mirror)

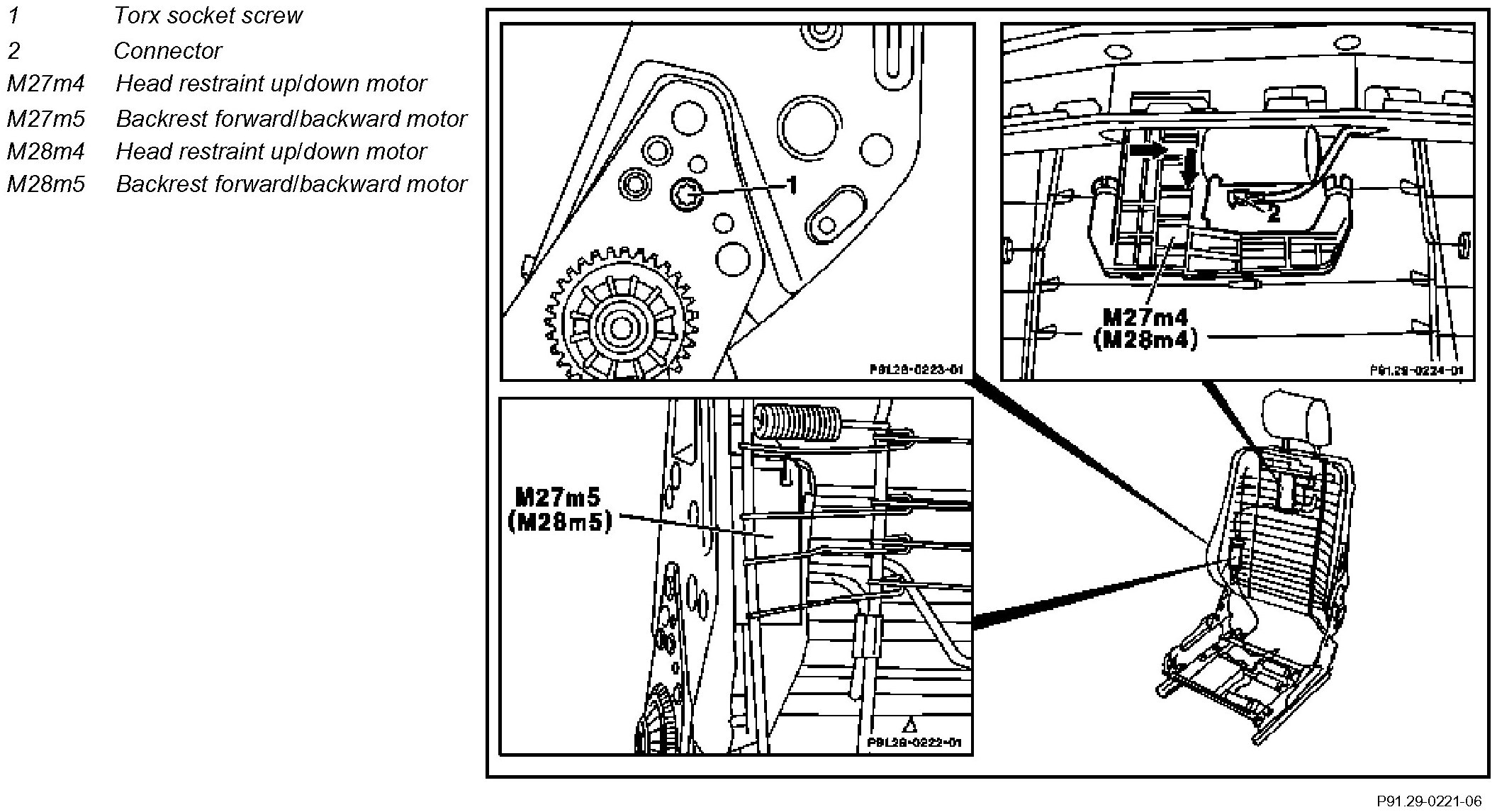

Component Identification:

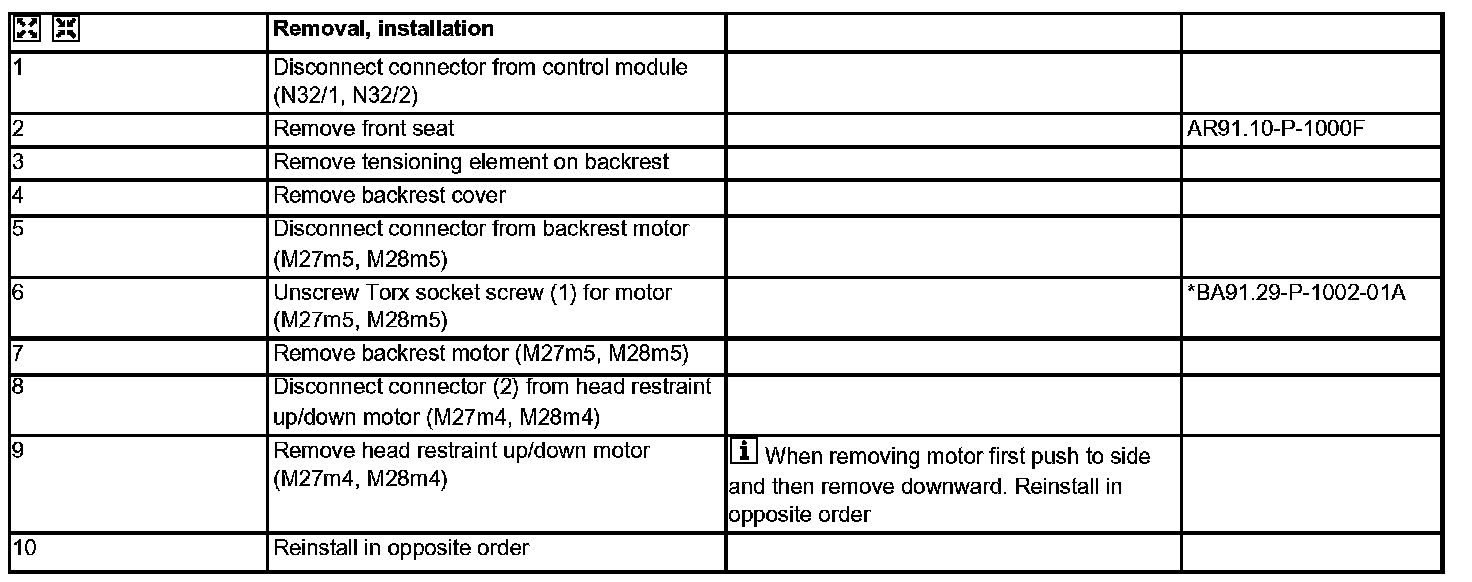

Steps 1 - 10:




Seat Adjustment:
