AR91.29-P-1420F Remove/Install Motor Group For Front Power Seats (Seat Cushions)

AR91.29-P-1420F Removing And Installing Motor Group For Front Power Seats (Seat Cushions)
- with CODE (241) memory circuit for left front power seat
- with CODE (242a) memory circuit for right front power seat
- with CODE (275a) memory package (driver's seat, steering column, mirror)

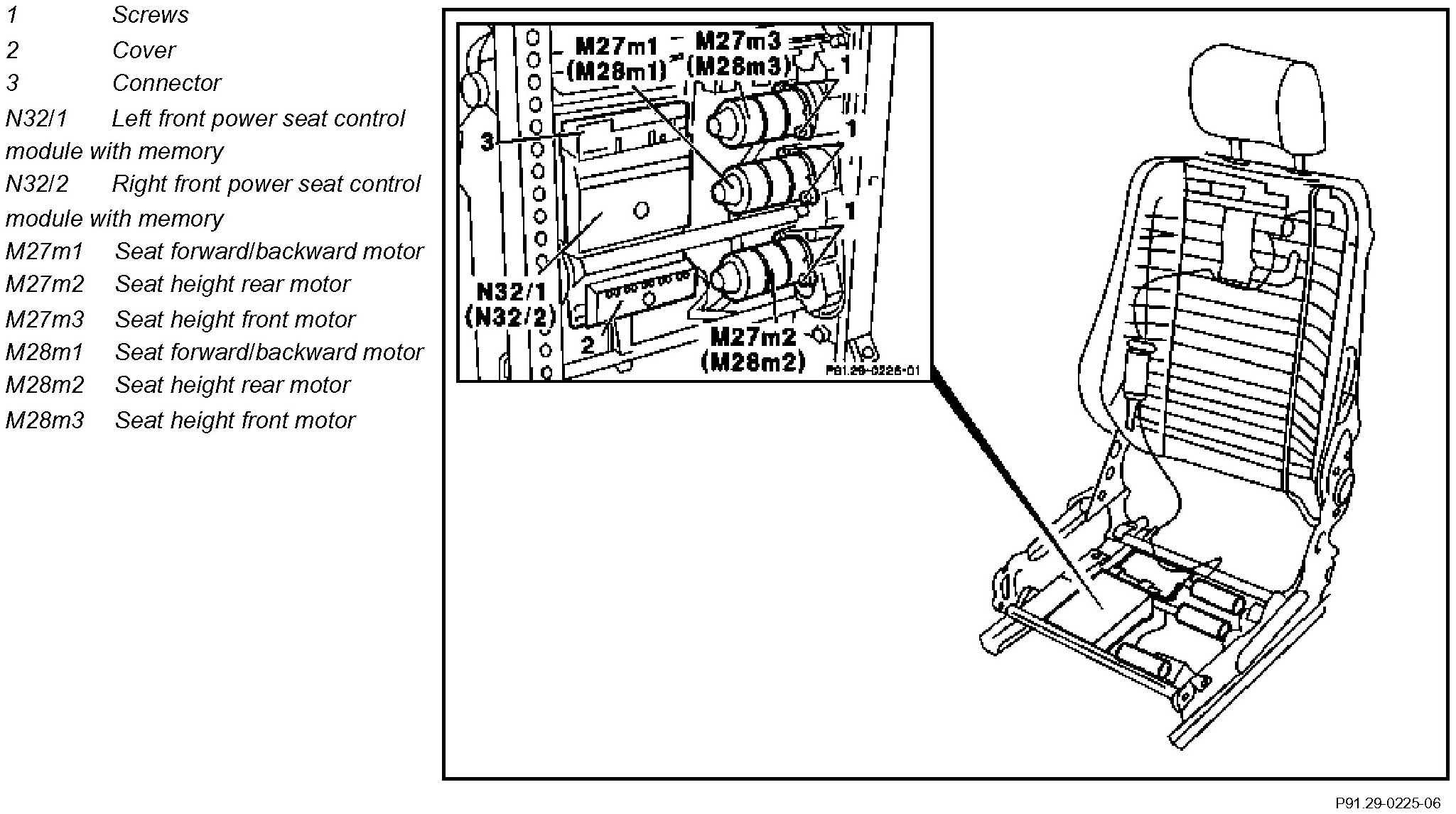

Component Identification:

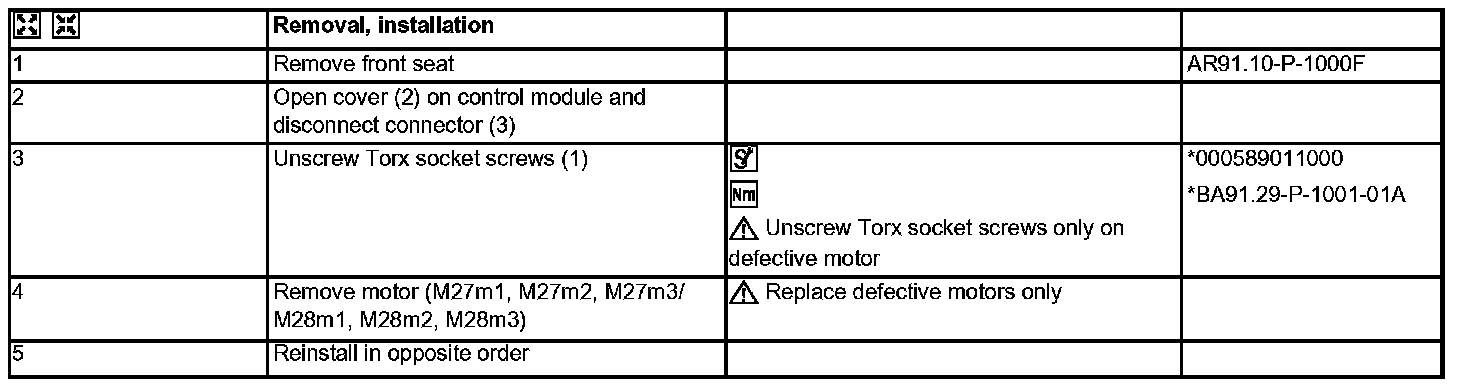

Steps 1 - 5:

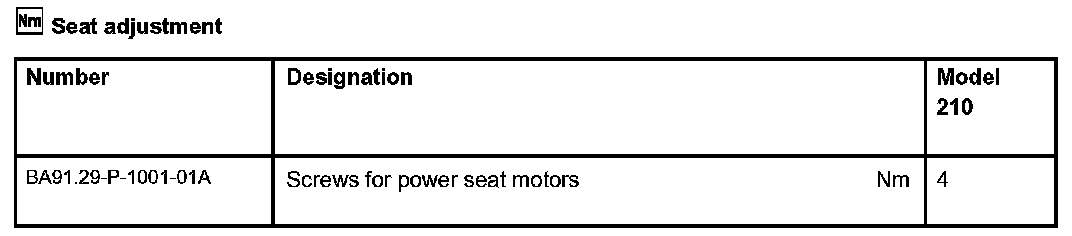

Seat Adjustment:

Special Tools:
