Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Sunroof / Moonroof Interior Trim Panel >> Service and Repair >> AR77.20-P-1000F Remove/Install Sliding/Pop-Up Roof Cover

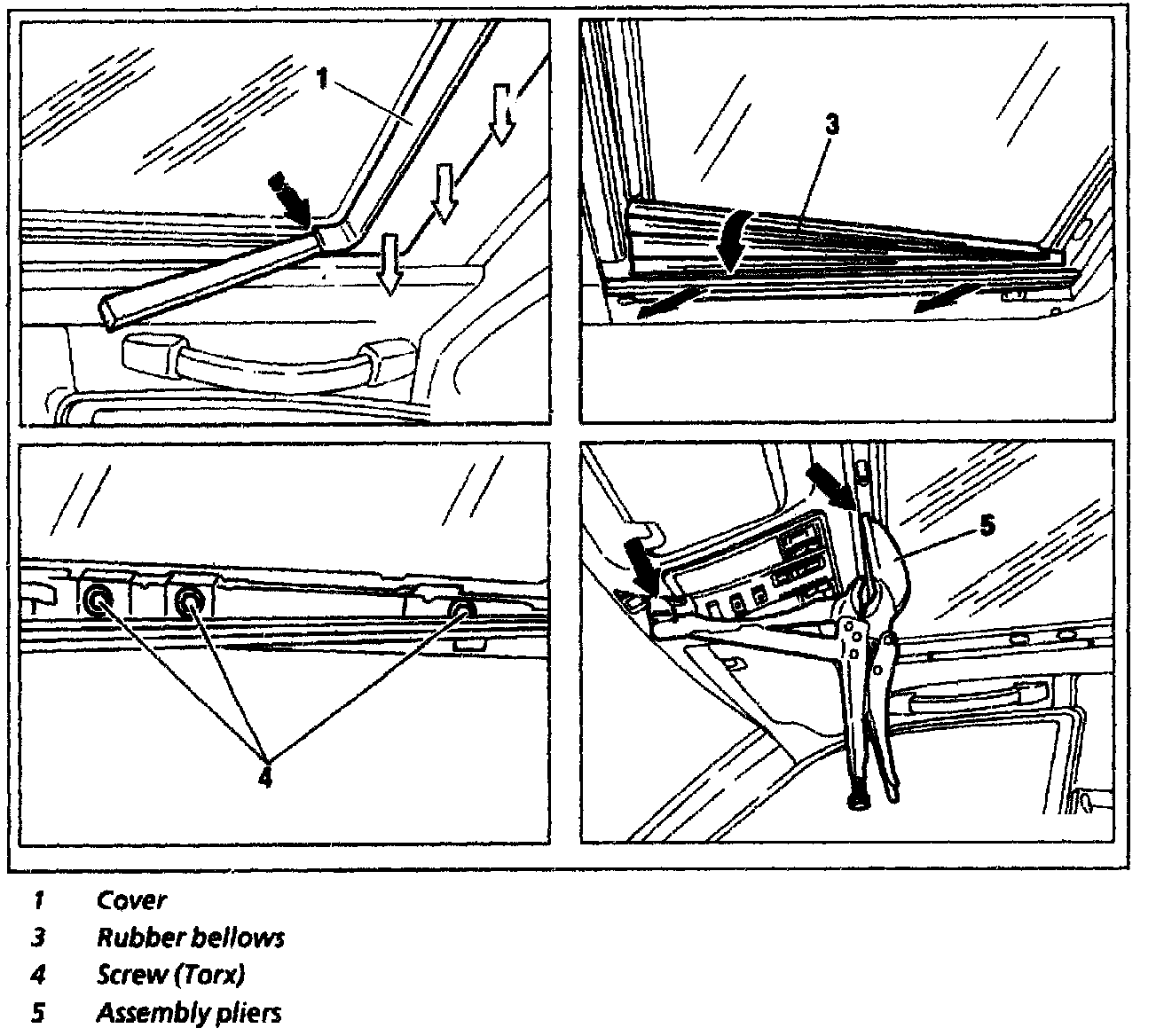

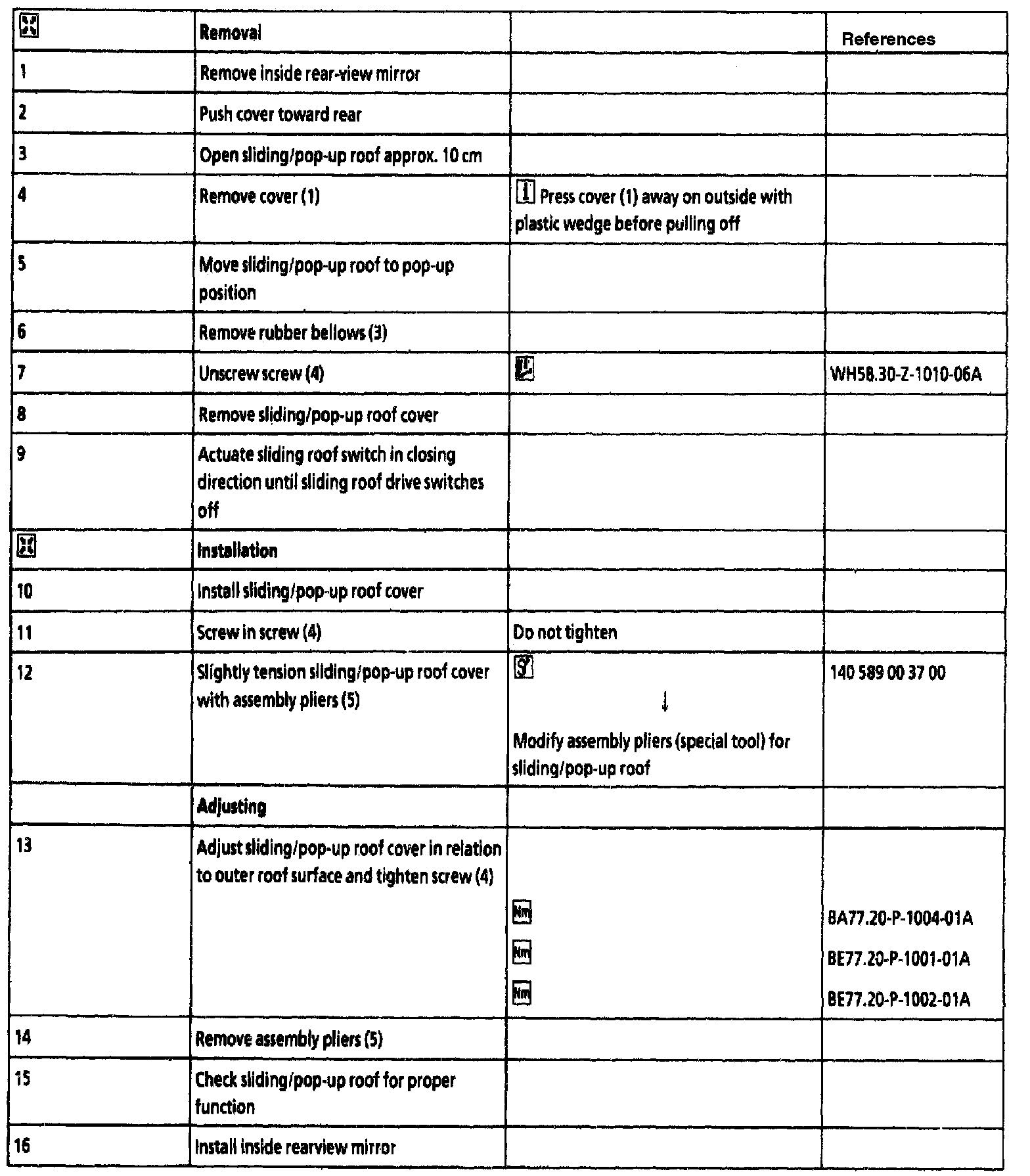

AR77.20-P-1000F Remove/Install Sliding/Pop-Up Roof Cover



AR77.20-P-1000F Remove/Install Sliding/Pop-Up Roof Cover
- with CODE (414a) Electric glass sliding/pop-up roof cover
