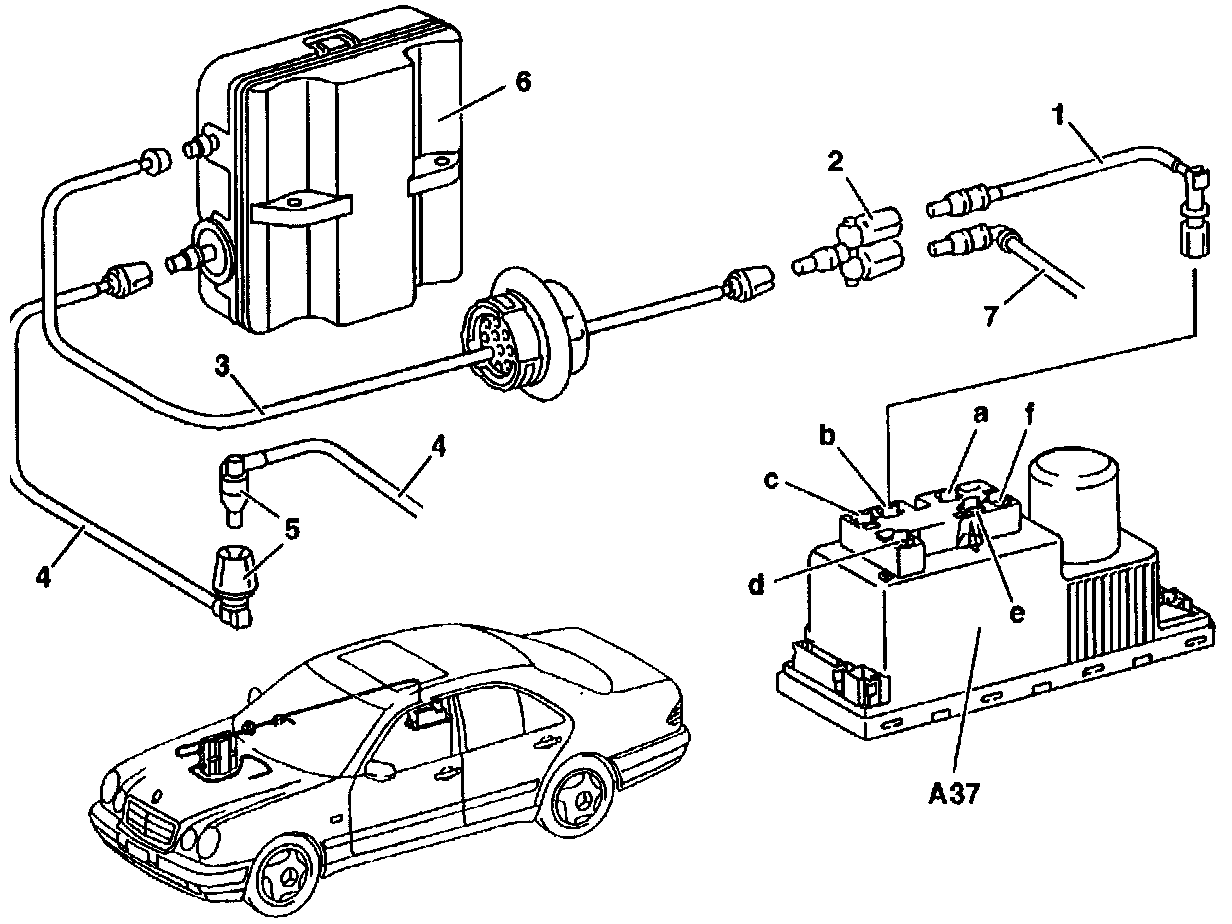

Component Locations - Section 31

Sedan Shown





A37 PSE control module, combined functions
a Pneumatic connection, passenger-rear doors
b Pneumatic connection, driver-side door
c Pneumatic connection, fuel tank filler flap
d Pneumatic connection, RTR/RHR
e Pneumatic connection, OSB
f Pneumatic connection, MVA
1 Pneumatic line, MVA, frame floor
2 2-way distributor
3 Pneumatic line, MVA, engine compartment
4 Pneumatic line, MVA, connection line to engine
5 Pneumatic line separation, engine compartment
6 Vacuum reservoir
7 Pneumatic line, Automatic A/C
