AR68.30-P-4495F Remove/Install Trim Panel At D-Pillar
AR68.30-P-4495F Remove/Install Trim Panel At D-Pillar
AR68.30-P-4495F Removing And Installing
Trim Panel
At D-pillar
Component Identification:

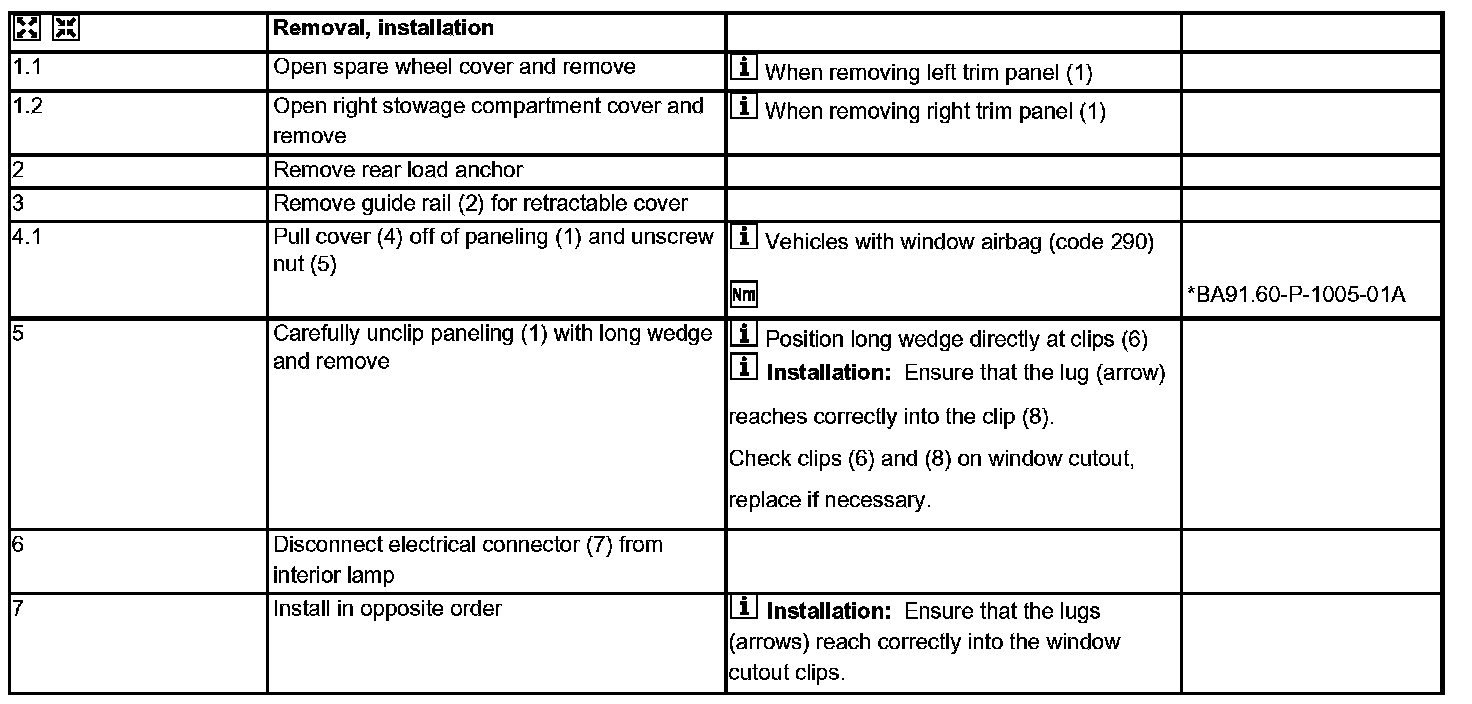

Steps 1.1 - 7:

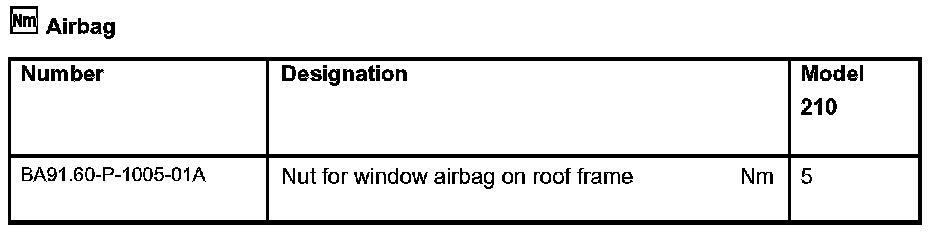

Airbag:
