AR68.30-P-4300FB Remove/Install Headliner



AR68.30-P-4300FB Removing And Installing Headliner
- with CODE (979) Special protection version
- with CODE (Z04) Light armoring
- with CODE (Z06) B6 armoring

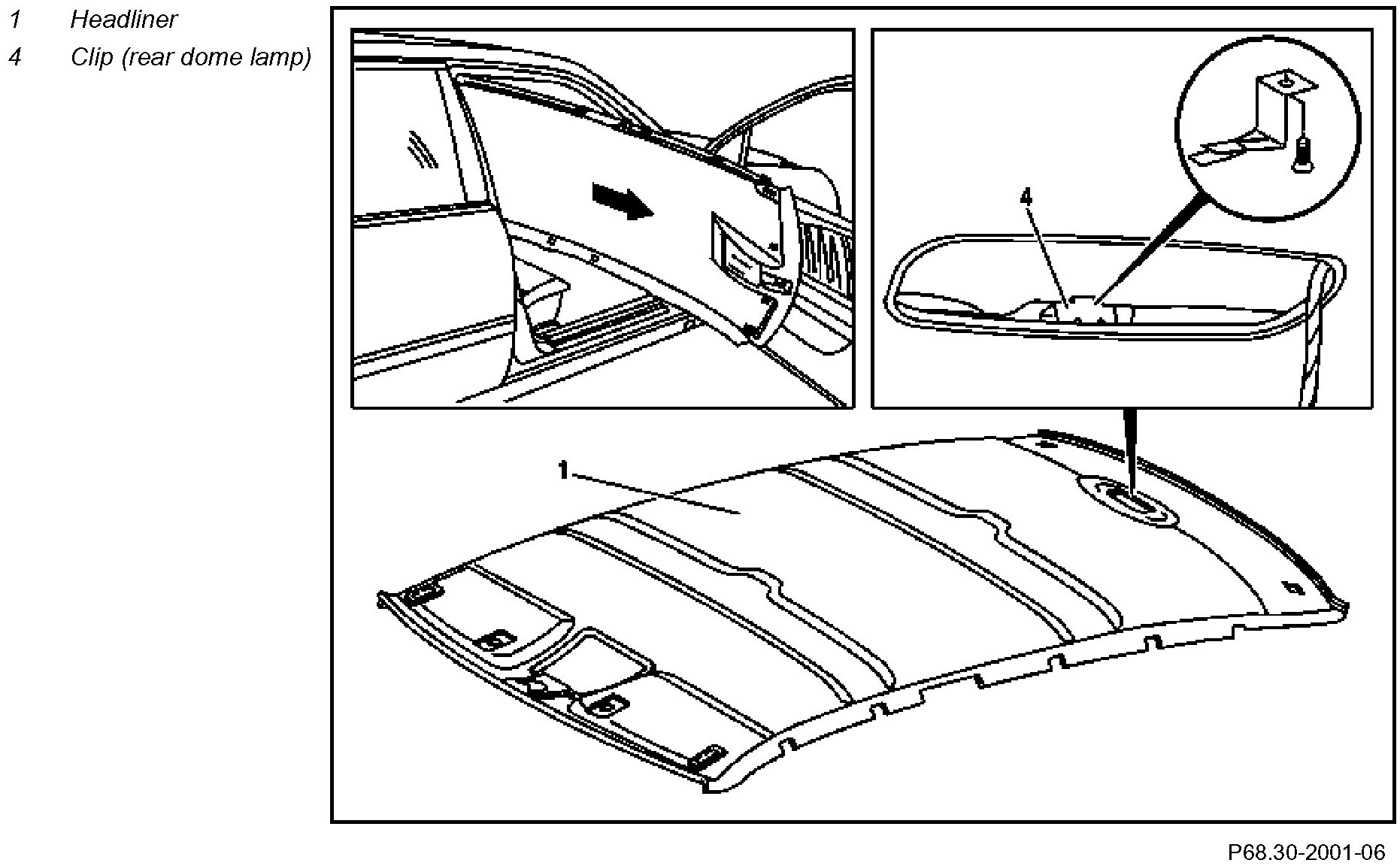

Component Identification:

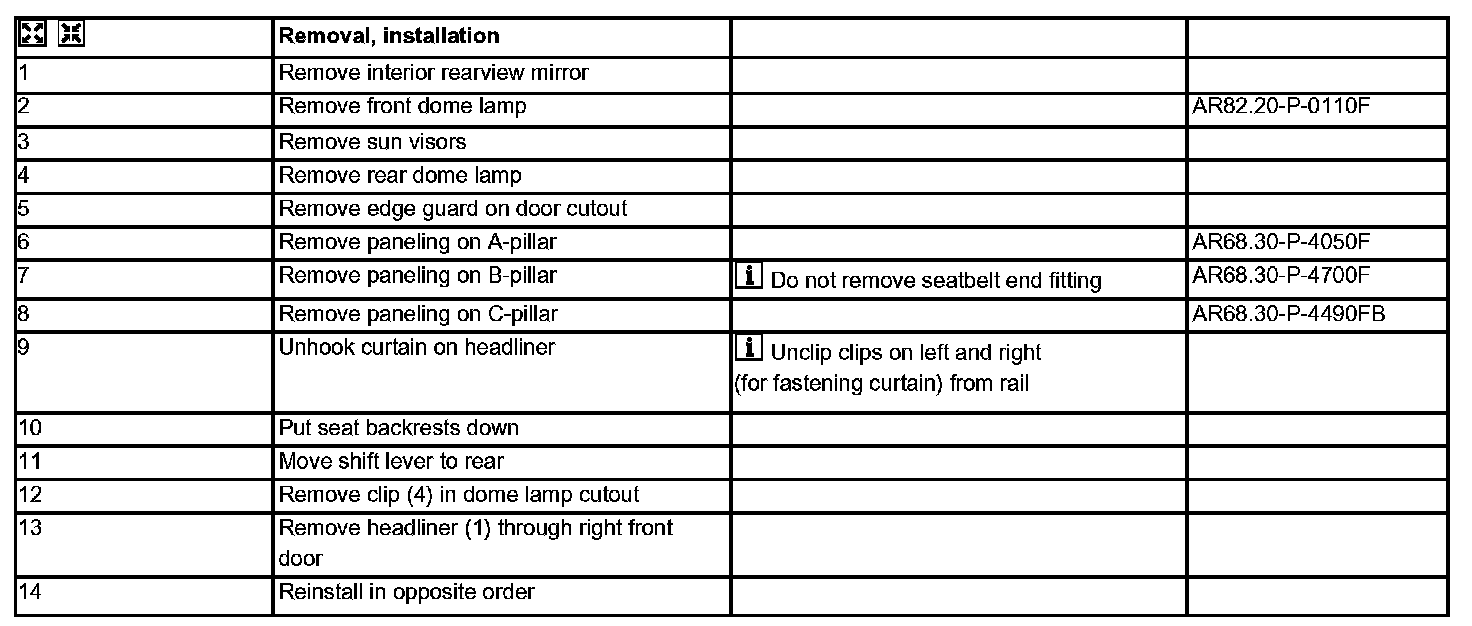

Steps 1 - 14:
