AR68.30-P-4300FA Remove/Install Headliner
AR68.30-P-4300FA Remove/Install Headliner
AR68.30-P-4300FA Removing And Installing
Headliner

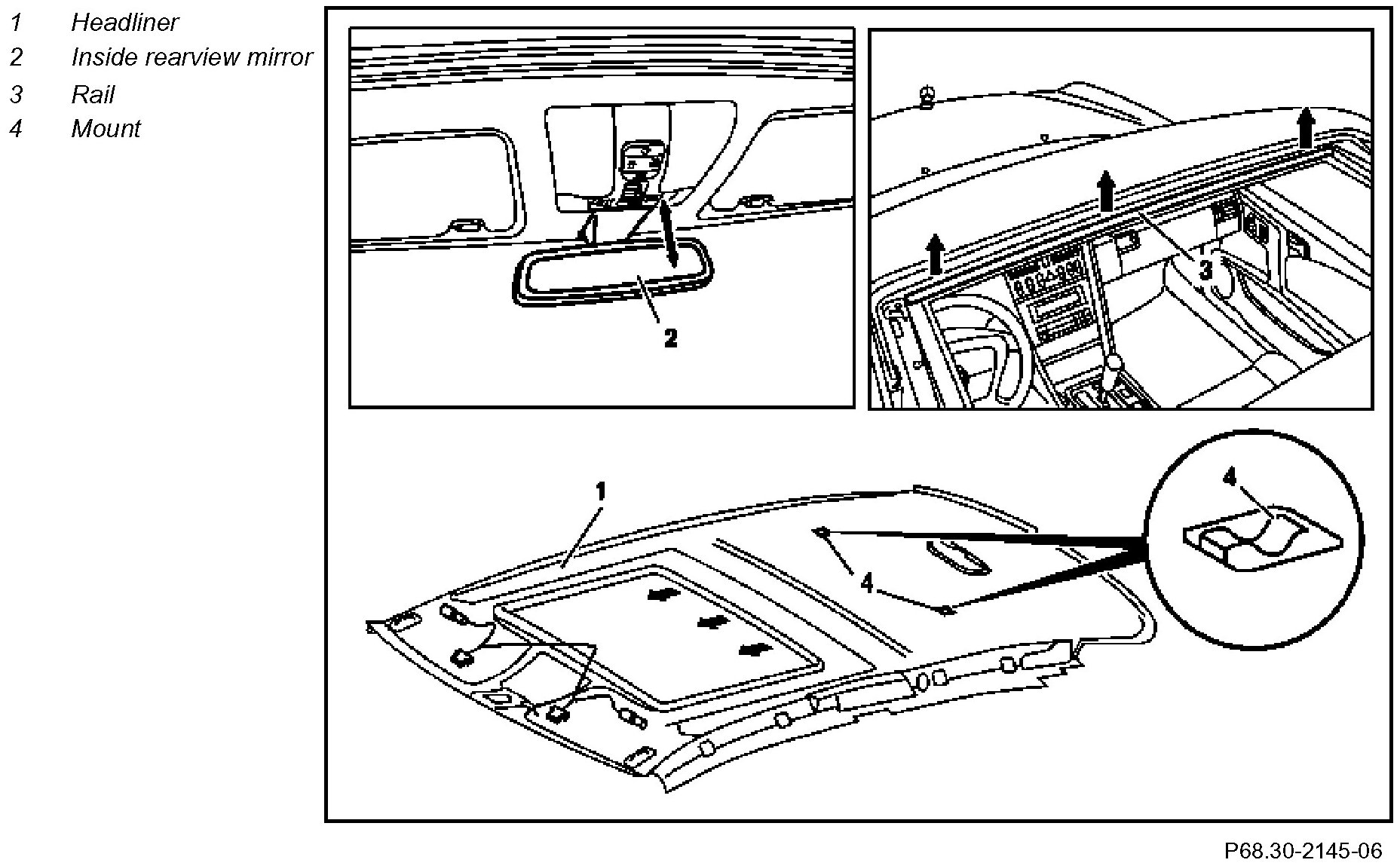

Component Identification:

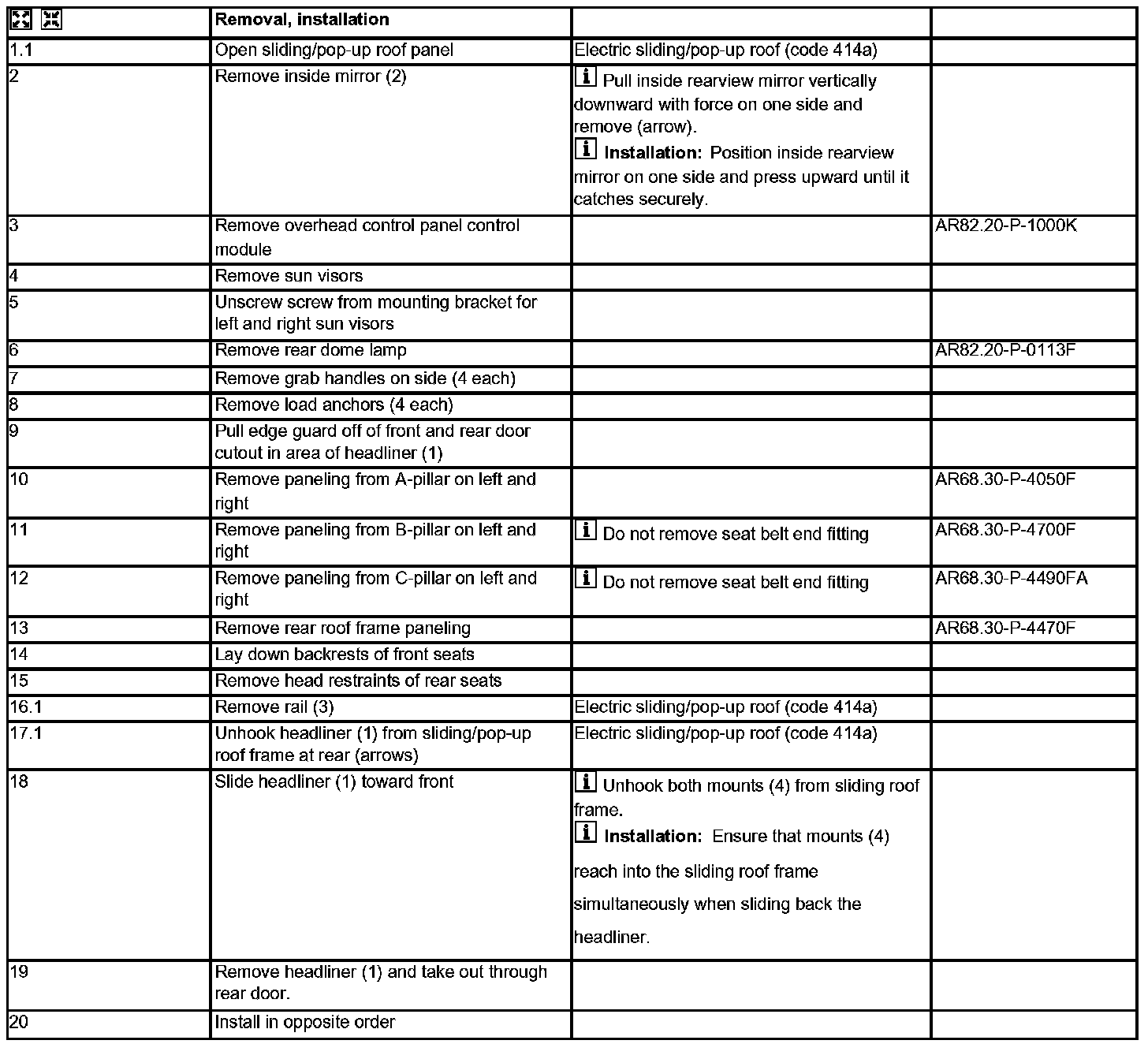

Steps 1.1 - 20:
