AR68.20-P-4800B Remove/Install Rear Floor Covering
AR68.20-P-4800B Remove/Install Rear Floor Covering
AR68.20-P-4800B Removing And Installing Rear Floor Covering

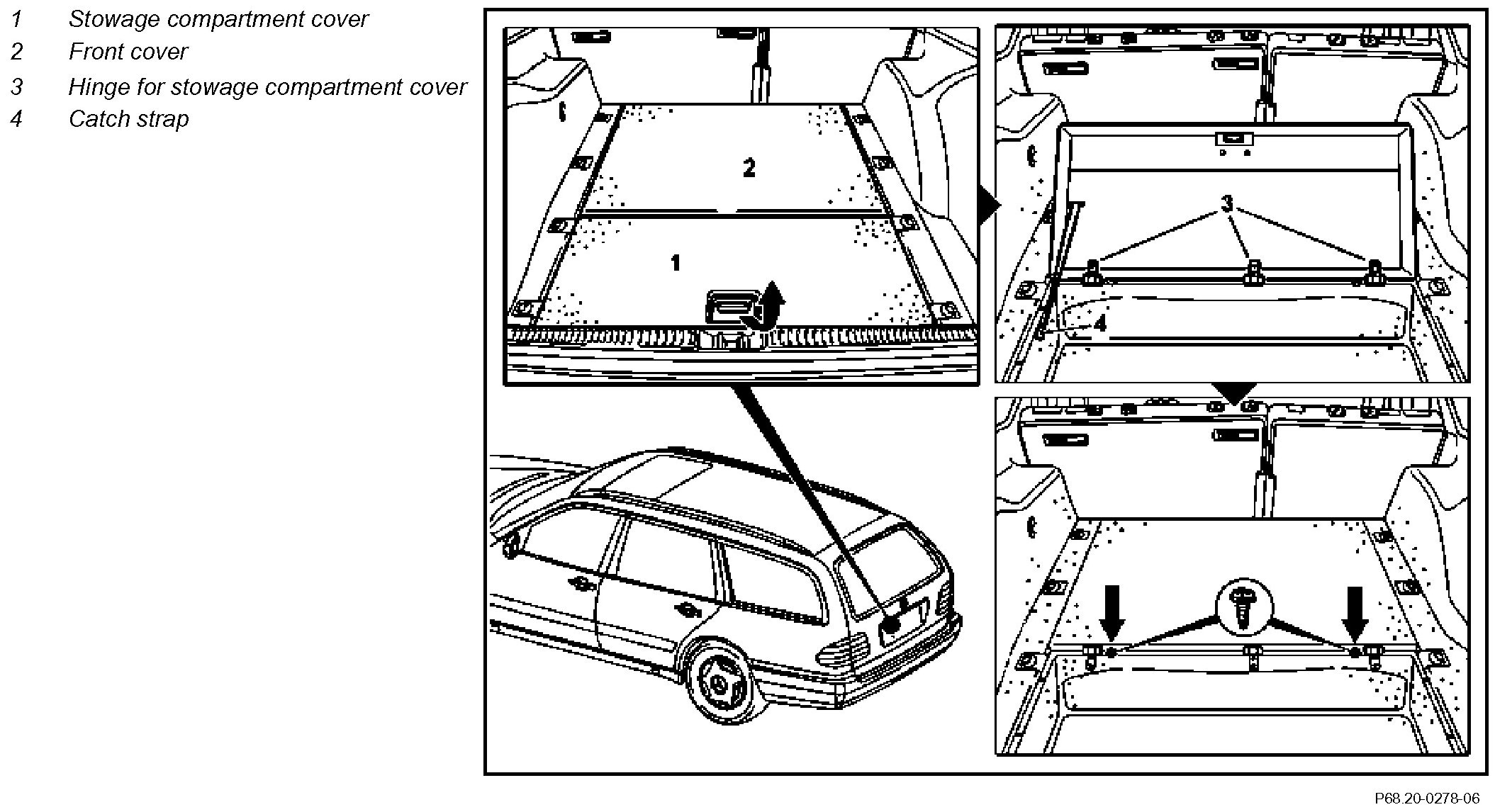

Component Identification:
Steps 1 - 6:
