Removal and Replacement



AR31.10-P-8000FA Removing And Installing Trailer Hitch
- with CODE (550) Trailer hitch

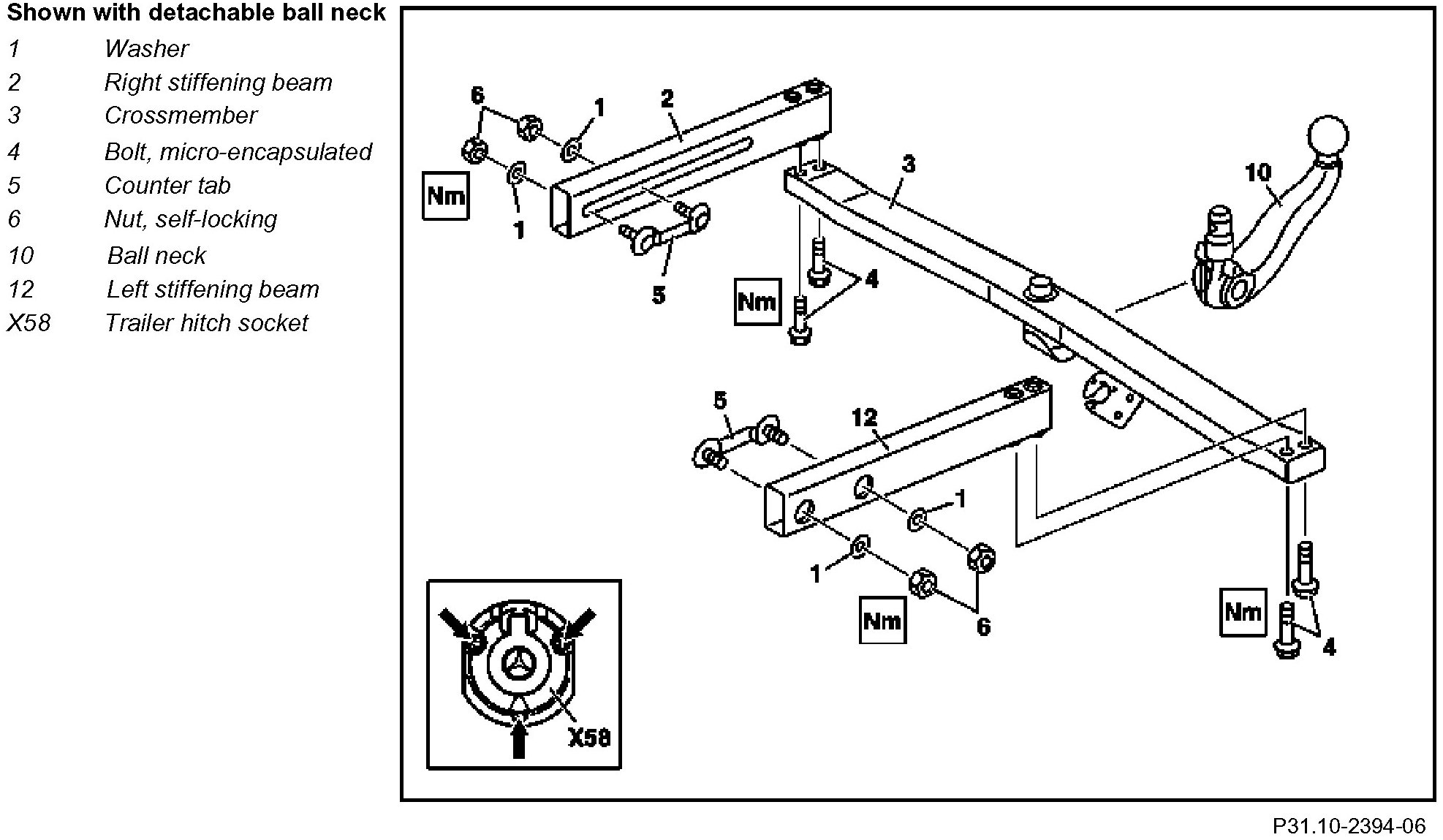

Component Identification:

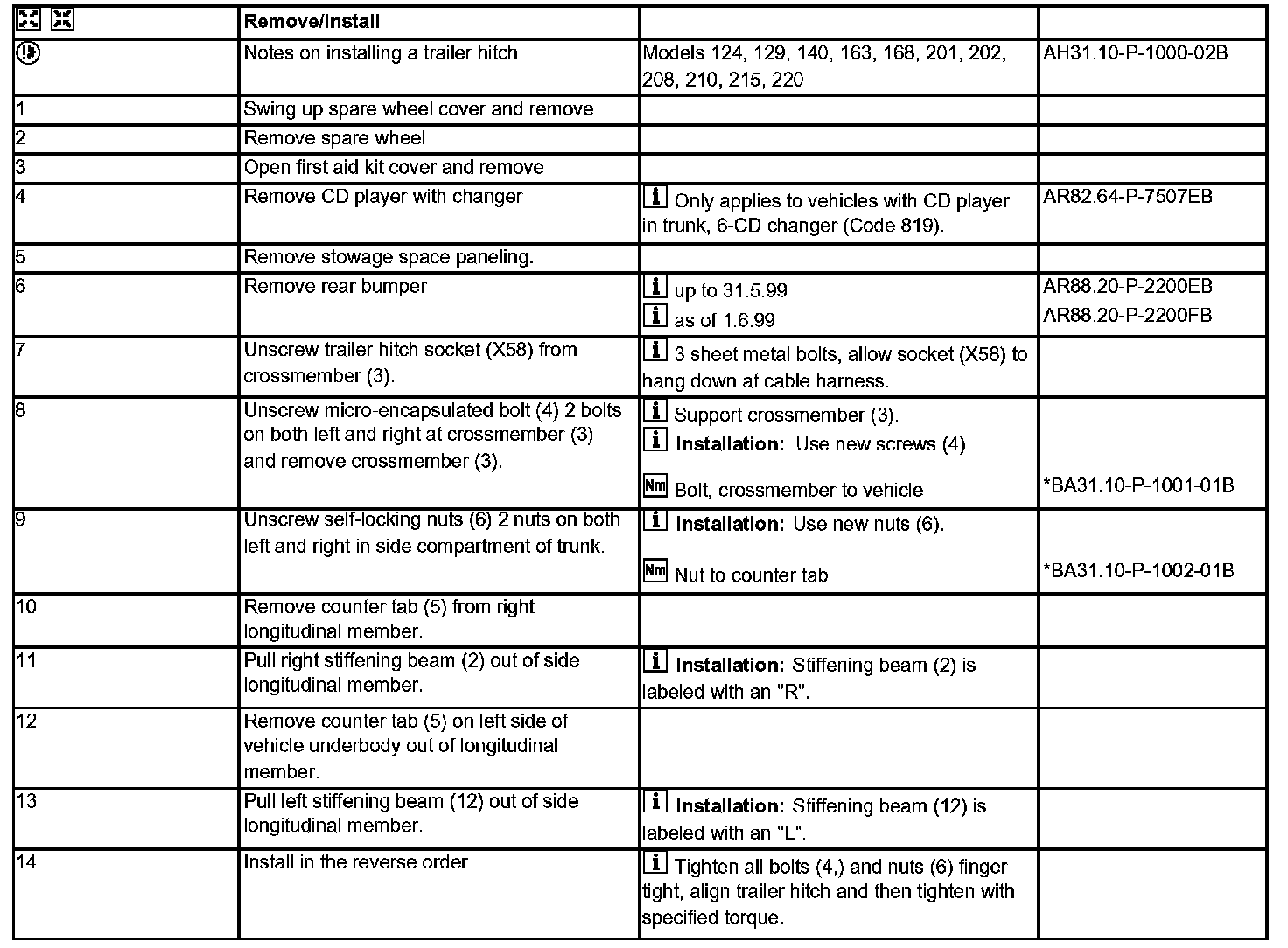

Steps 1 - 14:

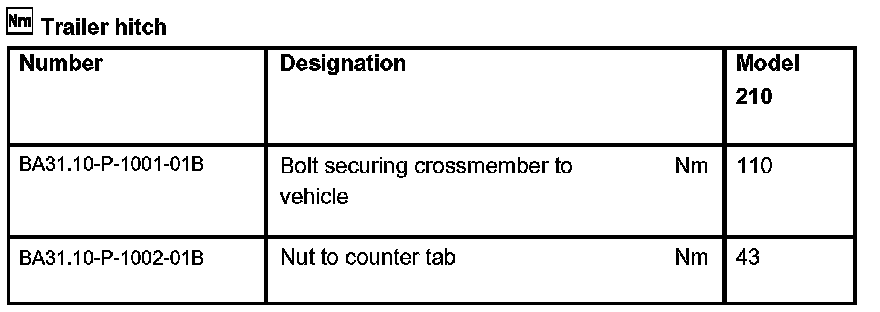

Trailer Hitch:
