AR88.10-P-1000F Removing And Installing Front
Fender

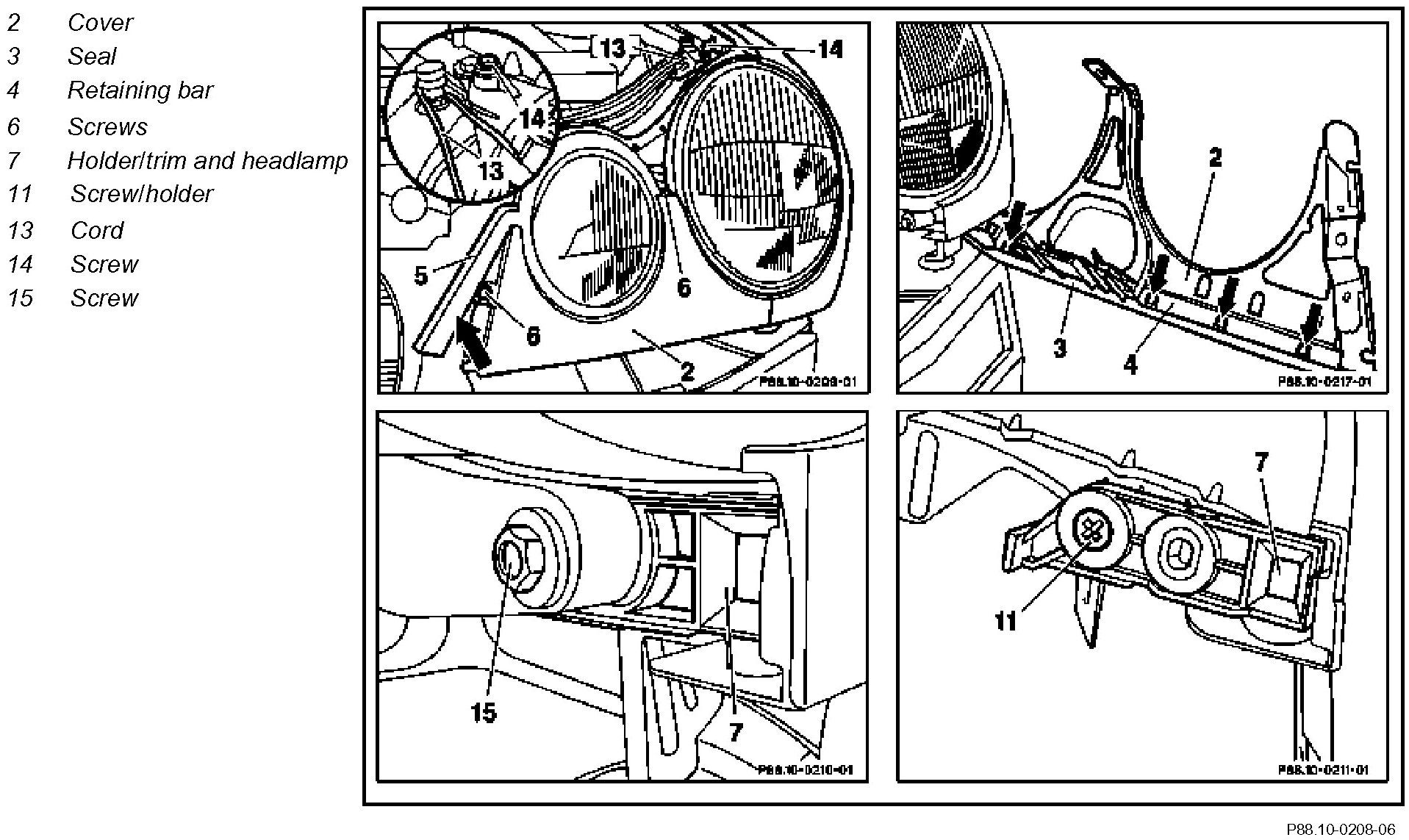

Component Identification:

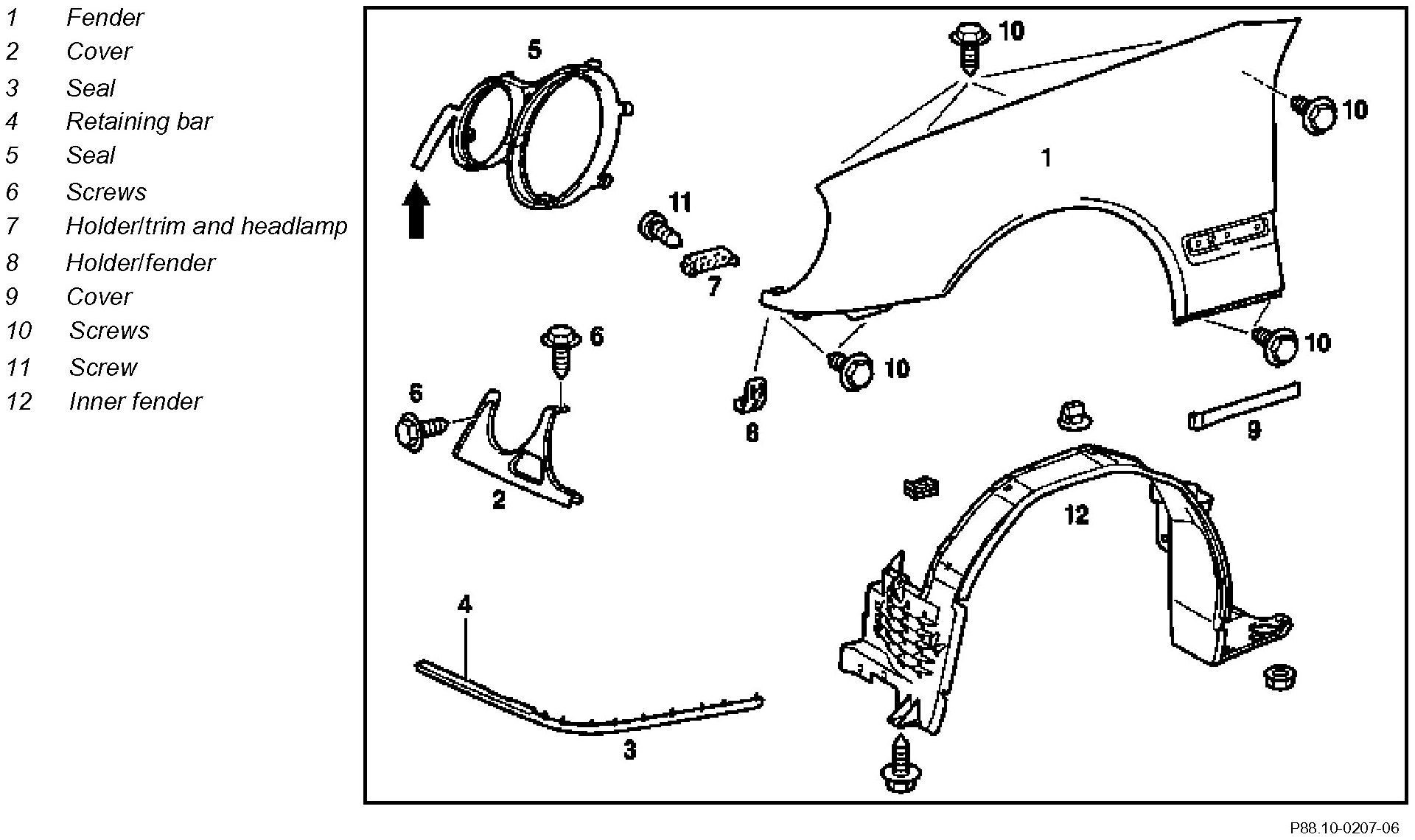

Component Identification:

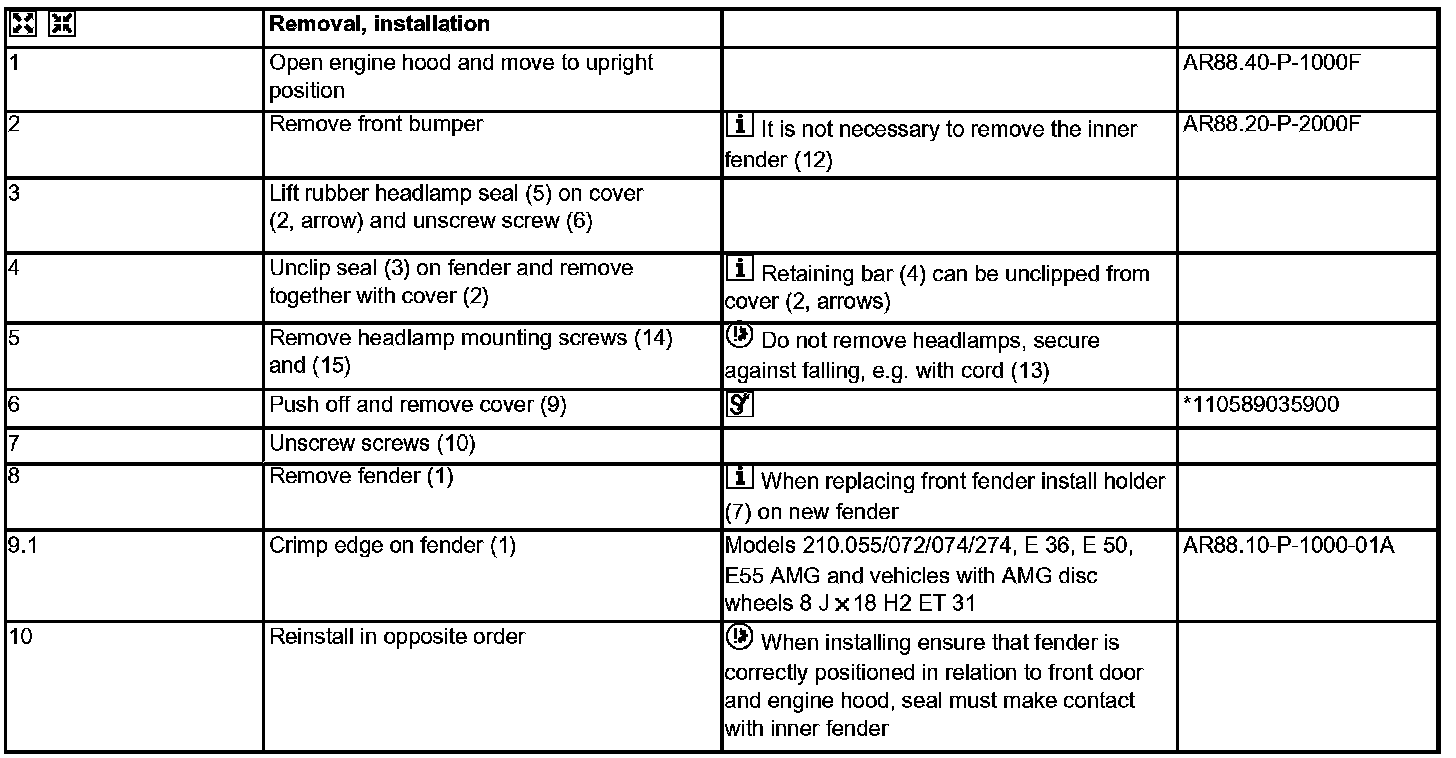

Steps 1 - 10:

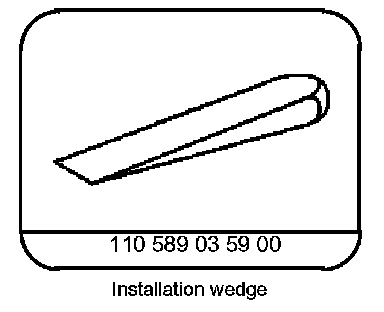

Special Tools:
